Let’s be honest, most people don’t think twice about what’s inside their smartwatch, insulin pump, or heart monitor. But here’s the thing: at the core of every medical device that saves lives or monitors health is something deceptively complex, medical PCB assembly.

Now, while your smartwatch might forgive a glitch or two, a pacemaker absolutely cannot. That’s the difference between general electronics and medical PCBA, there’s zero room for error. Every connection, every layer, every component must work flawlessly, often under extreme conditions.

In this complete guide, we’ll dive into the world of medical PCB assembly, break down how it works, what makes it so different, and why it’s become the backbone of modern healthcare. Whether you’re a designer, engineer, or just genuinely curious about how life-saving tech gets built, you’re in the right place.

1. What Is Medical PCB Assembly?

So, what exactly is medical PCB assembly?

At its core, it’s the process of assembling printed circuit boards, or PCBs, specifically designed for medical applications. These aren’t your typical PCBs slapped inside a toy drone or Bluetooth speaker. No, medical PCBA is held to the highest possible standard. We’re talking about boards that go into pacemakers, defibrillators, infusion pumps, medical imaging systems, and more.

Think of them as the nerve center of every piece of high-stakes medical equipment. The performance of a pcba medical machine can literally make the difference between life and death. Because of that, medical PCB manufacturers must meet stricter regulatory requirements, more robust design standards, and achieve much higher reliability scores than their counterparts in consumer electronics.

And it’s not just about performance, it’s about long-term reliability, biocompatibility, and precision. These boards must endure sterilization, high-frequency vibrations, moisture, and sometimes even direct contact with the human body. So yes, medical PCBA is in a class of its own.

In short? This isn’t just assembly. It’s life-critical engineering, and it starts with the right process and the right mindset.

2. Critical Requirements for PCBA in Medical Devices

Now, before we get into how these boards are actually made, let’s look at what they absolutely must deliver.

First and foremost, any PCBA in a medical device must be safe. That means complying with strict standards like ISO 13485 and IPC Class 3, the highest level of quality for electronic assemblies. Devices can’t fail. Period. That’s why every medical pcba product is subject to rigorous inspection, both during and after assembly.

But safety is just the beginning. Reliability is equally important. Devices with embedded medical PCBA often run for years, sometimes decades, without a reset. These PCBs operate inside harsh environments, inside a human body, on ambulances, in MRI rooms, and so on. That’s why pcba medical machines need to handle extreme heat, cold, vibration, and more, all without missing a beat.

Then there’s size. Ever notice how modern medical equipment keeps getting smaller? That’s not a coincidence. Miniaturization is key, especially for wearable or implantable tech. It demands ultra-compact, densely packed medical PCB assemblies, often with complex multi-layer designs and advanced materials.

In a nutshell, the critical requirements boil down to this:

• Safety:No room for failure.
• Reliability:Years of stable operation, even in extreme conditions.
• Precision and miniaturization:Smaller boards, tighter tolerances, higher performance.

And here’s the twist: as demands keep increasing, medical PCB assembly services are evolving fast, but not every provider can keep up.

3. Types of Medical PCBs

When it comes to designing electronics for healthcare, there’s no such thing as one-size-fits-all. That’s why medical PCB assembly spans across multiple board types, each tailored to specific medical environments, devices, and tolerances.

Let’s start with the basics: rigid PCBs, flex PCBs, and rigid-flex PCBs. These are the foundation of every medical electronics assembly, and each comes with its own strengths and limitations.

1) Rigid Medical PCBs

These are the standard go-to boards, firm, cost-effective, and stable. You’ll typically find rigid PCBs inside pcba medical machines like diagnostic equipment, imaging systems, and hospital monitors. They don’t bend or fold, but they’re reliable in large, stationary setups where space isn’t a constraint.

2) Flexible Medical PCBs

Now, if you’re working on something smaller, say a wearable glucose monitor or a PCBA in medical alert devices, you’re probably using a flexible PCB. These bendable boards are made to wrap around curves, fit into compact spaces, and withstand movement without breaking. The rise of medical device assembly for portable and wearable health tech is driving their demand sky-high.

3) Rigid-Flex Medical PCBs

Why choose between rigid or flex when you can get both? Rigid-flex PCBs combine solid board sections with bendable flex layers, making them ideal for medical pcba products that require both durability and flexibility, such as surgical instruments or implantable devices. You get the structural stability of a rigid board with the adaptability of a flex circuit. That’s a win-win in the operating room.

And let’s not forget the multi-layer and HDI (High Density Interconnect) options. With devices shrinking every year, these technologies let engineers pack more functionality into smaller, lighter PCBs, without sacrificing performance or safety.

In short, whether it’s a large-scale pcba medical machine or a skin-adhered wearable, there’s a specialized PCB type built for it. And choosing the right one? That’s step one in getting your medical pcb assembly service off on the right foot.

4. The Medical PCB Assembly Process

So, how do we actually build one of these things?

Well, unlike standard electronics, the medical PCB assembly process is less of a “factory routine” and more of a high-stakes precision dance. Every step is dialed in to meet strict tolerances and medical-grade expectations. Let’s break it down.

Step 1: Design & DFM (Design for Manufacturability)

Everything starts here. If the layout doesn’t account for real-world stress, heat, or size constraints, the rest of the process is doomed. A good medical pcb assembly manufacturer will review your design, catch any red flags, and make sure it’s ready for production before touching a single component.

Step 2: Component Sourcing

This part’s critical. Components used in medical pcba service must meet strict standards, both in terms of quality and traceability. Subpar parts are simply not an option. Many medical PCB manufacturers only work with vetted, certified suppliers to ensure every capacitor, resistor, and chip is compliant and reliable.

Step 3: SMT & Through-Hole Assembly

Once everything’s ready, the actual placement begins. SMT (Surface Mount Technology) is the go-to for most devices, but some products still require through-hole assembly, especially if they need mechanical strength or component height. Either way, medical pcb assembly demands controlled reflow temperatures, minimal solder defects, and absolute precision.

Step 4: Testing & Inspection

Testing isn’t optional here, it’s mission-critical. Automated Optical Inspection (AOI), In-Circuit Testing (ICT), X-ray analysis, and sometimes even functional tests are standard protocol. After all, a single bad solder joint in a PCBA in red light therapy devices or a medical implant could be catastrophic.

Step 5: Final Assembly and Box Build

Lastly, everything is enclosed, labeled, and packaged, often in sterile conditions, depending on the application. This stage of the medical device assembly process ensures the PCBA is protected, fully integrated, and ready to be installed into its final housing.

Throughout every step, documentation and traceability are key. You need to be able to trace every board, component, and test result. That’s what separates a regular electronics vendor from a serious medical pcb assembly service provider.

5. Specialized Use Cases (Where Medical PCBA Makes the Difference)

The term medical PCB assembly might sound clinical, but the impact it has on everyday health is personal, even life-changing. These assemblies are embedded in the very tools we rely on for early diagnosis, chronic condition monitoring, and emergency interventions. Let’s dig into a few real-world examples where medical PCBA products are absolutely critical:

1) Red Light Therapy Devices

Often used for skin treatments, pain relief, or muscle recovery, these devices require PCBA in red light therapy devices that can manage high heat while remaining compact. The boards need excellent thermal tolerance, stable voltage control, and longevity, especially for at-home consumer models that may run daily.

2) Medical Alert Devices

These include fall detectors, panic buttons, and heart monitoring wearables. They usually operate wirelessly and must process and transmit data in real-time. PCBA in medical alert devices is engineered for lightweight wearability, long battery life, and rugged reliability, think elderly patients or individuals with disabilities who depend on them 24/7.

3) Portable Diagnostic Equipment

Blood glucose monitors, digital thermometers, and handheld ECG machines all use tightly packed medical PCBA to deliver hospital-grade accuracy in a home-friendly package.

4) Surgical Tools & Robotic Systems

Behind every beeping monitor or surgical robot arm is a custom pcba medical machine that’s been built to survive sterilization, shock, and constant use. These aren’t just PCBs, they’re precision-controlled lifelines.

In every case, the medical electronics assembly is more than just a platform for components. It’s the brain behind the care.

6. Choosing the Right Medical PCBA Manufacturer

Finding the right medical PCB assembly manufacturer is a bit like hiring a heart surgeon. You need precision, certification, transparency, and absolutely no shortcuts. Whether you’re sourcing locally or abroad, these are the criteria that separate trustworthy medical PCBA service providers from the rest.

Comparison Table: What to Look For

Feature	Good Manufacturer	Bad Manufacturer
Certifications	ISO 13485, IPC Class 3, FDA, RoHS	Missing or vague compliance claims
Design Feedback	Offers DFM input, flags layout risks	Accepts files blindly, no feedback
Testing	AOI, X-ray, ICT, functional tests	Visual inspection only
Communication	Responsive, transparent, clear quotes	Delayed, templated, evasive replies
Sample Validation	Shares test data and revision logs	No data, “take-it-or-leave-it” samples
Packaging & Shipping	Cleanroom, ESD-safe, traceable packaging	Generic, untraceable packaging

Choosing wrong means risking delayed timelines, failed units, or worse, safety concerns in live devices. Always vet aggressively before you commit.

7. Why So Many Medical PCBs Are Assembled in China

It’s no secret, China is the global hub for electronics manufacturing. But when it comes to medical PCB assembly, the lead isn’t just about cost. It’s about infrastructure, experience, and scale.

Why China Dominates: Quick Comparison

Factor	China	Other Regions
Production Volume	High (1000s of units per day)	Moderate to low
Speed to Market	Rapid prototyping & shipping	Slower lead times
Advanced Equipment	Widespread SMT automation, 3D AOI, X-ray	Varies greatly
Labor Cost	Low-to-mid range with skilled operators	Higher cost overall
Material Sourcing	Domestic component access, fast procurement	Often imported
Vendor Options	Dozens of reliable medical pcb manufacturers	Fewer niche specialists

But, and this is key, not all Chinese providers are equal. Some focus purely on volume, cutting corners to underbid competitors. That’s why it’s critical to look beyond price.

Here’s what you should ask upfront:

• Do they have past experience with medical pcba service?
• Can they support traceability and documentation?
• Will they guide you through DFM before fabrication?

If they can’t say yes to all three, keep shopping.

8. Common Pitfalls in Medical PCB Assembly

Even with the right partner and solid design files, mistakes happen, and in the world of medical PCB assembly, small mistakes become massive liabilities.

Here are the biggest traps:

1) Poor Heat Dissipation

Devices like pcba medical machines generate constant heat. If copper traces are too narrow or thermal relief isn’t built into the design, components overheat, and patients suffer.

2) Sharp Trace Angles

Those neat-looking 90° turns? They’re stress concentrators. Flexible boards especially (common in medical alert devices) need gently curved traces to prevent cracking.

3) Vias and Pads in Bend Areas

This one’s a classic mistake. Put a via in a flex zone and you’re asking for delamination. Every competent medical pcb assembly service knows to avoid this, but many budget providers don’t.

4) Loose Assembly Standards

If your board isn’t IPC Class 3, it’s not medical-grade. End of story. Always confirm your medical pcb assembly manufacturer builds to this standard.

Avoiding these problems isn’t about luck, it’s about process. And the better the process, the longer your product will work where it matters most.

9. Quality Control: The Quiet Hero of Medical PCBA

Let’s say your design is flawless. Your assembly partner did a great job. What could still go wrong?

Plenty, unless quality control is built into every layer.

Here’s what elite-level medical PCB manufacturers implement by default:

• Automated Optical Inspection (AOI) after every reflow
• In-Circuit Testing (ICT) to confirm connectivity and resistance levels
• Functional Testing that mimics real-world operation
• Burn-in Testing for products expected to run nonstop

And most importantly?

Traceability Logs. Every board should come with batch history, lot numbers for components, test results, and visual evidence. If a unit fails in the field, you need to know why, instantly.

This level of accountability isn’t optional. It’s what separates medical PCBA from the hobbyist world.

10. What’s Next for Medical PCB Assembly?

We’re standing at the edge of something big. As electronics shrink, and AI powers more decision-making in hospitals, medical PCBA is transforming fast.

Trends You Can’t Ignore:

• AI in Manufacturing: Real-time inspection tools now use AI to detect defects before they happen.
• Implantables: Think flex PCBs embedded in the body, monitoring, regulating, even delivering medication.
• Smarter Wearables: ECG patches, glucose sensors, and fertility trackers with rigid-flex PCBs are going mainstream.
• Material Innovation: From stretchable copper to bioresorbable polymers, medical electronics assembly is turning science fiction into product specs.

Bottom line? The best medical pcb assembly services aren’t just reacting, they’re innovating. And if your supplier isn’t evolving with the tech? You’ll get left behind.

11. Medical PCBA FAQs

12. Summary

By now, one thing should be clear: medical PCB assembly isn’t just another line on a BOM or a step in device production. It’s the heart of modern healthcare technology, and it demands precision, reliability, and deep technical know-how.

From PCBA in medical devices like surgical robots and heart monitors, to wearables and portable diagnostics, the role of the medical PCB assembly service is only growing. As technology advances, expectations follow. Smaller boards. Tighter tolerances. Smarter systems. And absolutely zero tolerance for failure.

Whether you’re designing a medical pcba product for red light therapy or choosing a medical PCB assembly manufacturer to deliver your next generation alert device, the key is to partner wisely, design carefully, and test relentlessly.

Because in healthcare, there are no second chances, and your PCBA needs to work the first time, every time.

Want to learn more or request a quote?

Visit https://assypcb.com, your one-stop solution for medical PCB manufacturing, component sourcing, and top-tier medical PCBA service.

We are surrounded by the technology. Technology is all around us, whether at home, at work, or in our leisure time. It is important to ensure that the PCB Assembly Process meets standards.

PCB assembly is not without its challenges. This blog will help you to navigate common problems. These problems occur during PCB assembly. This blog also offers practical solutions to ensure your assemblies are efficient and reliable.

To begin troubleshooting an electronic circuit board, you must first determine if it is faulty and what problems it has. PCB Assembly failure causes can range from minor issues to major ones. PCB defects can be classified into four main categories.

• Physical Damages:PCBs can be damaged by water, dust, heat, oxidation,or vibration. Physical damage is often indicated by obvious signs such as corrosion.
• Design Flaws:Human errors can also lead to PCB design faults. Incorrect component placement and improper material selection are examples of actions that can lead to a reduction in performance efficiency.
• Failures of components:PCBs, like most devices, rely on many electronic components. These wear out over time. Components can malfunction or stop functioning as they age. It’s important to know which parts are more likely to fail than others.
• Manufacturing Errors:Small oversights can have a significant impact on PCB functionality. Sometimes manufacturers are able to catch these issues late in the manufacturing process. Other times, an operator may not be able to see a problem until it is used.

The list above is not complete, as there are many other problems that may occur. Below are some common PCB issues and signs.

1.Design Issues

1.1 Poor Thermal Control

PCB assemblies produce heat during operation. Thermal management can be inadequate. It results in overheating and damage to sensitive components.

Solution:

Designers can address this by integrating heat sinks or thermal vias into the design.

They can select materials that have high thermal conductivity. This can also help efficiently disperse heat and maintain optimal temperatures.

1.2 Footprint Mismatch

The size of the SMD components or the pin spacing does not match Gerber/BOM.

Solution:

Check the footprints of the components against the Bill of Materials before finalizing your design. Use design rule check (DRC) tools.

Mismatches with regard to pin orientation or package size, pad spacing, and pad spacing should be flagged. Validate footprints by conducting a DFM with the assembly team.

1.3 Design Flaws in Pad/Hole Designs

The mechanical strength and solder adhesion of the solder is not adequate.

Incorrect hole diameter: Poor fit of the lead (too tight/loose), resulting in solder voids and pull-out.

Uneven Pad Layout: Asymmetrical heat dissipation causing soldering inconsistencies.

Solution:

Place vias away from BGA, QFN, or fine-pitch parts. They increase the risk of shorts and complicate rework. If necessary, use blind/buried vias to cover internal layers.

Based on the component datasheets, IPC-2221 guidelines, and solder pad measurements (length, width, and thickness), base your dimensions of solder pads. Minimum annular rings should be based on board tolerance and thickness.

2.Component Issues

2.1 Counterfeit Parts

Components may be substandard or counterfeit. They are usually detected using XRF material analyses or chip photography.

Solution:

We must work with reliable suppliers. Y&T Technology guarantees that all of its components are genuine.

2.2 Polarity/Orientation Errors

The polarity of electrolytic capacitors is not marked. Diodes have reverse polarity marked on them. The pin alignment of ICs is incorrect. This can cause functional failures following soldering.

Solution:

It is important to replace and remove these defective components as soon as possible to prevent future functional failures.

2.3 Physical Injury

Damaged components are caused by improper handling or transport. Cracks, bent pins, or missing pads are all examples of this.

Solution:

Avoid collisions by packaging components properly during transport.

2.4 Oxidation/Corrosion

Leads can lose their shine or become soaked, which causes contamination of the surface. Solderability is affected.

Solution:

Use protective coatings to prevent moisture and contaminants from reaching the lead.

2.5 Component Floating/Tilting

The inserting is not secure. The soldering is not done with enough holding force. The wave may be too buoyant. These can cause misaligned parts, incorrect lead immersion, and failed soldering joints.

Solution:

Do an excellent job in training employees to ensure correct operation.

Maintained regular inspections and commissioning to ensure that machines are operating correctly.

2.6 Component Missing/Excessive Placement

Errors in the programming and feeding of the feeder can result in missing components or duplication. Functional failures and shorts can result from this.

Solution:

Check the first board manually or automatically.

Verify all components are correctly positioned and present. Catch any misalignments of the feeder early.

Replace worn parts immediately after routine inspections. Feeders should be calibrated to disperse components at exact angles and intervals.

2.7 Material Composition Errors

The substrate is not compliant with the standard or the plating is wrong.

Solution:

Use only certified substrates, and use the correct plating technique.

3.Environmental Issues

3.1 Humidity and Moisture

The humidity is too high. Or the PCB storage isn’t protected well. This can cause flux failure or pad/pin oxidation. This also leads to poor wetting, increased voiding, or flux splashing when soldering. QFN and BGA parts are not dry-packed properly. Moisture absorption can lead to delamination during reflow-soldering.

Solution:

Moisture barrier bags (MBBs) are the best way to store PCBs and other components. Desiccant packs (HICs), humidity indicator cards (HICs), and seal bags should be available.

For MSCs that are awaiting assembly, use dry cabinets or climate-controlled vaults. If the floor life is exceeded, bake components according to JEDEC JSTD-033. Components can be stored in aluminum laminate bags with heat-sealed edges.

Use UV-curable silicone or acrylic coatings to prevent moisture from entering the assembly after it has been completed.

3.2 Cleaning Agent Residue

Ionic contamination exceeds the IPC-5701 limit.

Solution:

You can choose different cleaning agents depending on the type of contamination. Source cleaners comply with IPC-CC-830 (solvent cleaning) or IPC-8010 (aqueous cleansing). Automated optical inspection (AOI), to map the flux distribution after reflow. For extended cleaning, flag boards with excessive bridging and non-uniform coverage of flux.

3.3 Adhesive failure

Low bond strength post-cure or Tg below standard.

Solution:

Select adhesives with Tg >=20degC over the maximum operating temperature. Removing oils, oxides, and mold release agents. Surfaces need to be cleaned and roughened for adhesives to adhere properly. Low Tg and bond strength can be caused by an insufficient curing temperature or time. Track cumulative exposure to cure using time-temperature integrators (TTIs).

4.Functional Issues

4.1 Parameter Deviation

Instability performance or values that are out of tolerance.

Solution:

Components should be purchased from distributors who are certified to ISO-9001. Perform a 100% automated optical inspection of passive components to check for physical damage.

4.2 Short/Open Circuits

Contact resistance is poor or there are intermittent failures of connectors.

Solution:

Use pad spacing that is compliant with IPC-7351. To minimize shorts due to misaligned reflow, avoid placing vias underneath BGA pads.

No-clean fluxes with low ionic residuals will prevent dendritic formation over time. A low-temperature solder is recommended to prevent overheating and openings.

5.Soldering Process Issues

5.1 Voiding at BGA/CSP Joints

Microvias can trap moisture or flux gases.

The PCB manufacturing process is not good for hole filling.

Solutions:

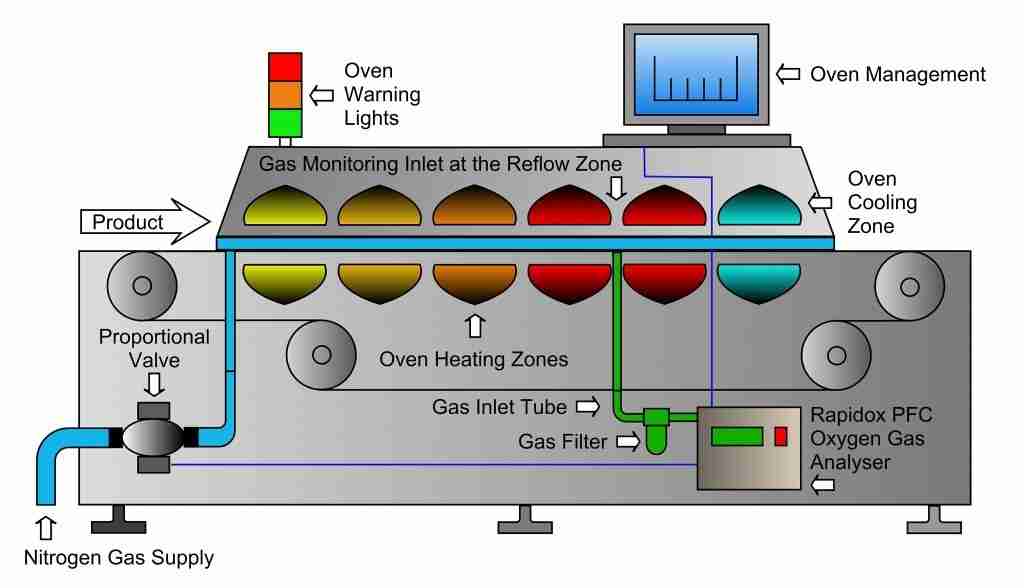

Vacuum reflow ovens can be used to reduce voids.

You can also require X-ray inspections per IPC-7095 to ensure 100% BGA coverage.

5.2 Solder balling

Moisture in solder paste or PCB substrate vaporizes during reflow.

Splatter is caused by excessive solder paste or temperature spikes.

Solutions:

If the humidity level is above a certain threshold, bake PCBs before assembly.

Add solder masks between pads to contain the paste. Solder paste is prevented from settling on the pads.

5.3 Cold Solder Joints

The pads are contaminated if they have not been heated enough during the reflow.

Lead oxidation in the component can cause wetting to be impaired.

Solutions:

To ensure melting, extend the soak zone duration on the reflow profile.

Before assembly, clean pads with plasma to remove oxides.

5.4 Component Lifting (Tombstoning)

Asymmetric thermal mass can cause uneven pad heating.

The volume of solder paste is not balanced or the component placement is misaligned.

Solutions:

Use symmetrical layouts of thermal reliefs and pads.

To improve wetting, choose a high-activity paste (e.g. SAC305).

5.5 Solder Bridge

Stencil misalignment or oversized apertures deposit excess paste.

Low-viscosity solder paste spreads during reflow.

Solutions:

Use SPI (Solder paste inspection) to flag any deviations in the volume of the solder paste.

Angle the wave soldering conveyor for optimal separation.

5.6 Incorrect Component Orientation/Position

Human error appears during insertion. Misaligned jigs or unclear assembly drawings. This will result in misplaced solder and leads.

Solution:

Strengthen the employee training for standard operations.

5.7 Wave soldering defects (Blowholes and Icicles)

If moisture is found in the through-holes, or on the conveyor angle, this is not correct.

Solutions:

You can bake PCBs in advance to remove moisture.

You can also optimize the wave nozzle pressure as well as flux spray uniformity.

5.8 Uneven Solder Joints

Reduced solder fluidity due to oxidized or uncleaned tip. Rapid air movement or premature flux volatilization can lead to irregular solder joints. Stress fractures are more likely to occur when mechanical strength is insufficient. Sharp spikes can cause high-voltage short circuits or arcing.

Solution:

Clean and rinse the iron tips regularly. Replace them as soon as they wear out. Select the correct flux. Limit the soldering time for each joint to maintain flux activity. Improve your soldering technique and make sure you use the right-hand placement and motion. Avoid spattering and voids by using high-quality paste.

5.9 Pad Leaning/Tilting

A lack of vacuum pressure may cause components to lift off the PCB surface. Partially contacting the pad results in a semi-wetted joint with reduced vibration resistance. Over time, this is susceptible to fatigue cracking.

Solution:

Optimize vacuum pressure in placement equipment. Make sure it is sufficient to securely hold the component. Flatten PCBs that are warped using vacuum chucks or thermal reconditioning.

Check component coplanarity. Reject bent bodies or bent leads from suppliers. Staff should be trained on vacuum troubleshooting and tilt signs, as well as nozzle selection. Implement an In-Process inspection in order to detect drift as early as possible.



5.10 Mechanical stress

Over-spray pressure can displace components. An incorrect ultrasonic frequency can damage electrolytic capacitors. QFP lead can be deformed due to cleaning fluid impact. Vibration stress causes micro-cracks to appear on BGA balls.

Solution:

Avoid component displacement by controlling spray pressure. Electrolytic capacitors should not be subjected to ultrasonic damage.

Avoid QFP lead deformation due to fluid impact.

Avoid rough handling and use vibration-dampening devices to reduce vibration-induced BGA cracking.

5.11 Lead deformation/breakage

The force of insertion is excessive. Lead forming is not done properly. The wave impact may have caused mechanical stress. These can result in damaged leads, circuits that are open, or difficulties with subsequent rework.

Solution:

Use precision automated machines equipped with force sensors that control the insertion force.

Enforce gentle handling for manual insertion. Avoid direct pressure on leads by using vacuum pick-up tools or tweezers.

Use pins or clamps to fix the PCB. Align the leads parallel to wave flow to reduce lateral stress.

5.12 Head-in-Pillow (HIP)

BGA ball/pads oxidize or PCB warpages occur during reflow.

The temperature is insufficient to melt the solder spheres.

Solutions:

Store BGAs in moisture-proof bags and bake them before storing.

5.13 Component Corrosion

Acidic cleaners may erode metallic coatings. Alkaline cleaners discolor pure tin/silver immersion coatings. Corrosion of connector pins increases contact resistance. It can cause signal transmission problems. This is because the corrosion of nickel pads can reduce the adhesion between soldering joints. Cold solder is the result.

Solution:

Use specialized electronic cleaners or pH-neutral electronic cleaners. Avoid contacting metallic coatings. Validate the cleaning agents with respect to specific surfaces. This will prevent corrosion and ensure reliability.

6.Testing Issues

6.1 Functional Test Failure

Insufficient scope of testing is a common problem in PCB testing. Test procedures may be neglected or rushed. This can lead to errors that are not detected until the end of production. Incorrect consideration of product-specific test environments can compromise PCB performance. Humidity levels, temperature fluctuations, and mechanical vibrations are all environmental factors. These factors directly affect product quality and the ability of the product to withstand actual conditions.

Solution:

Circuit board testing is used by PCB manufacturers to verify that the assembly process has been completed. It ensures that each component pin is properly connected to its respective circuit net. Test points need to be strategically placed in order to conduct comprehensive tests. Design for Test (DFT), guidelines should be followed. Manual validation is necessary if test points are not covered.

6.2 Flying Probe Testing

The oxidation of the probes increases contact resistance and opens are more susceptible to misjudging.

Solution:

Pay attention to routine inspections and replace the oxidation sensor in time.

6.3 ICT (In-Circuit Test)

The bed of nails is not accurate. Short circuits can occur. The spring pins become less effective as they age. This causes a contact that is unstable and inconsistent.

Solution:

Replace the spring pins and debug the fixture’s accuracy.

7.Packaging Issues

7.1 Damaged Rays/Reels

The reels and trays have been damaged. This is not good for transmission.

Solution:

During transit, use ESD-safe plastic trays with foam inserts. Robotic arms equipped with vacuum grippers can be used to load and unload reels. This reduces manual handling errors.

7.2 False packaging

Packaging that is anti-ESD is not appropriate for sensitive electronics.

Solution:

Direct contact between components and non-ESD material is prohibited. Bags should be heat-sealed using conductive tape, not plastic clips, to create the Faraday cage. Add humidity indicator cards for devices that are sensitive to moisture.

8.Summary

Understanding the issues that PCBs face and how to avoid them is crucial for smooth operation. To avoid problems from happening, effective printed circuit board troubleshooting involves working with a PCB manufacturer who is qualified and experienced.

Y&T Technology has a team of knowledgeable, dedicated professionals you need to identify PCB problems and make any necessary alterations. We can provide you with any kind of PCB assistance you require.

Y&T Technology’s award-winning customer service team is available to answer any questions.

Electronic products have become a part of modern life. PCBs are one of the most important components. Have you ever made your own electronic devices by hand when you look at these intelligent products? It is easy to make a mistake without a tutorial.

This article provides a comprehensive guide on manual PCB Assembly. This article covers the preparation, assembly, testing, and debugging. It can be used for small-batch prototypes as well. These 5 core steps will increase your success rate by 95%.

1.What is PCB Assembly?

The PCB assembly process involves mounting components on the circuit board to ensure they work in a specific way. PCBAs can be used in more complex applications or to build electronics with a specific purpose. PCB assembly is either automated or manually done, but automated assembly has become more common in recent years thanks to advances in robotics. There are some steps that are usually manual, depending on the type of PCB being made.

2.Pre-assembly Preparation

2.1 Preparation of Tools and Materials

(1)Tools Required

Soldering iron (fine tip for SMT and thicker tip through-hole).

Solder (rosin core).

Flux (enhances solder flow).

Tweezers (for handling SMT components).

Diagonal cutters (for trimming lead).

Desoldering the wick/pump (for rework).

Multimeter (for continuity and resistance tests).

PCB clamp/holder (to secure board during assembly).

Anti-static wristband (to prevent ESD damage).

Magnifying Glasses or Microscopes (for small SMT components, optional).

(2)Materials

Blank PCB with copper traces (and pre-drilled holes).

Electronic components (resistors and capacitors, ICs and connectors, etc. sorted according to type and price).

Solder paste (for SMT parts, if reflow soldering is used).

Cotton swabs and isopropyl Alcohol (for cleaning flux residue).

2.2 PCB Layout and Preparation

(1)Preparation of PCB

Inspect PCB: Check the board for defects.

Test the electrical continuity: Using the multimeter, check the continuity.

Insulation test: Measure the resistance between adjacent signal traces.

(2)Cleaning PCB

Contamination removal: Use IPA for oil/fingerprints. Use a neutral detergent to ultrasonic-clean old flux residue.

Pad pre-treatment: Remove the oxidation from the solder mask and protect it.

(3)Positioning and Marking Aid

• Fiducial marking

Optical fiducials for SMT: Add 3 copper marks to PCB edges as pick-and-place machine alignment.

Manual alignment: Draw crosshairs on PCB corners using a marker. Align it with the grid paper on your workbench to ensure uniform component orientation.

• Special Area Preparation

BGA pads: Inspect the pad’s flatness with a magnifying glass; reject boards that have a large depression in order to prevent solder bridges.

Oxidized pad: Sand and activate using flux via soldering Iron.

Damaged pads (copper losses 30%): Connect vias adjacent to jumper wires to ensure electrical continuity.

Through-Holes Deburr clogged throughs with a reamer for smooth lead insertion.

Hole Diameter: Match the hole diameter to that of the lead (too large can cause wobbling, and too small will result in insertion force problems).

• For SMT

To remove fingerprints and oil stains, use a cotton swab dipped into isopropyl ethanol (IPA) to clean the pads.

If the pads are gray, activate with flux (to improve solder wettability)

(4)Component Layout

• Scheme and Layout Review:

Verify that the component footprints and schematics match. Verify that there are no redundant footprints or missing test points. Verify component placement, polarities, orientations (diodes and capacitors), and orientations.

• Component Preprocessing:

THT Components:

Use sandpaper to remove lead oxide or a wire brush.

Bend leads to align them with PCBs (adjust spacing if necessary with pliers).

• SMT Components:

Check the terminals on components with a magnifying lens (if they are oxidized, use absolute ethanol to clean them);

Handle with tweezers and avoid touching the pads.

Avoid ESD damage by using an anti-static belt when handling sensitive components.

Confirm the coplanarity (correct with a leveling device to avoid cold joints if necessary) of the leads for QFP/SOP packaged ICs.

3. Surface-Mount Technology(SMT) Assembly

3.1 Hand Soldering (for Small Quantities)

(1)Apply flux: Dab on a small amount if you are using flux-cored solder. This helps to wet the pads.

(2)Place components: Use the tweezer to align pins on pads.

(3)Tack Solder One Pin: Secure your component by first soldering a corner pin, and then check alignment. Adjust if necessary.

(4)Solder the remaining pins: For SOIC/QFP ICs, drag the iron tip gently along the pins and feed the solder when necessary. Solder one pad and place the 0603/0805 component. Then solder the second pad.

3.2 Solder paste + Reflow (for large batches)

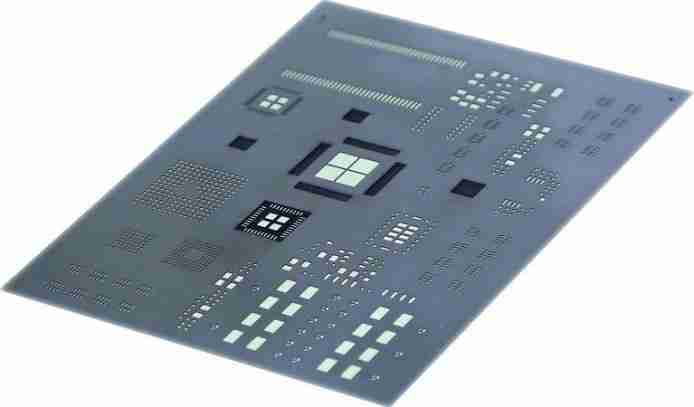

(1)Apply solder paste: Use stencils and squeegees to deposit the paste on pads.

(2)Solder paste inspection: Solder paste inspection machines (SPI) are used to inspect the paste after it has been applied. SPl devices are available in two different types: 2D and 3D.

The height and width can be measured by 2D equipment. 3D machines calculate the volume, length, and width of the solder paste. These devices can also detect errors in assembly, such as missing solder and paste.

(3)Component Placement: Use a pick-and-place tool or tweezers for positioning components on the paste.

(4)Reflow: Heat up the board with a reflow station or a hot-air station, according to the temperature profile of the paste you are using.

3.3 Automated optic inspection (AOl).

The AOl system uses optical devices to inspect solder joints on PCBs and component orientation. The systems identify defects such as missing parts, soldering difficulties, misalignments, incorrect component orientations, lifted and misplaced elements, open circuits and solder shorts, and excess or insufficient solder. This helps in quality assurance.

3.4 X-ray examination

The X-ray method is a form of non-destructive (NDT) testing that uses X-rays in order to produce images of internal structures. This method is for complex multilayer circuit boards that have fine-pitch components. It reveals any faults in the solder joints on the board.

3.5 Flying probe tests (FPTs)

The FPT method is an automated way to test PCBs. It detects open circuits, shorts, and other component attributes like resistance, capacitance, and inductance. The testers are made up of multiple movable probes that can be moved freely in XYZ directions.

The probe is highly adaptable and flexible for small production runs and frequent design modifications.

During the testing phase, the flying probe tester is programmed with netlist data taken from the design file.

The tester moves the probes around the PCB to measure electrical properties such as resistance and capacitance.

4. Assembly of Through-Hole Components

4.1 Components Inserting

(1)Install Short/Low Components First: Install smaller components (resistors and small capacitors) first to avoid blocking adjacent pads.

(2)Align Pins With Pads: Push the component leads through PCB holes on the top side (component side), making sure they protrude a little bit on the solder side.

(3)Secure components: For tall parts (connectors and transformers), clamp them or temporarily hold them.

(4)Orientation alignment: Ensure that components are installed in the correct orientation (reverse installation can burn components).

4.2 Soldering

(1)Pre-heat pad: Use the iron tip to contact the pad and the lead at a 45-degree angle. The pad will darken slightly.

(2)Apply Solder: Feed the solder into the joint, not the iron. Continue until a small fillet appears. Avoid over-soldering.

(3)Remove iron: Allow 1 sec for the soldering to solidify, before removing the board.

4.3 Leads Trimming

Trim excess leads with pliers that have a flush-cutting blade. (Leave about 1mm to prevent pad lift).

ESD Control: Clean the trimmings with a sticky pad or compressed air immediately to avoid metallic debris shorting.

5.Inspection and Rework

5.1 Inspection

(1)Visual Inspection

Inspection Item	Acceptance Criteria	Common Defects & Identification
Solder Joint	No burrs, no bridging.	Cold joints (dull granular surface), solder bridge (pads adjacent connected), insufficient solder
Component	Correct polarity; no Distance is a factor that can be used to determine whether or not a person is displaced.	Missing parts, misaligned ICs (reversed polarity), mismatched BOM lists (missing components)
Pads and Traces	No pad delamination; no trace shorts/opens	Damaged pads (copper losses >30%) and trace spacing 0.1mm.
Flux Residue	There are no obvious white/yellow stains around joints	Excessive sticky residue (potential conductive corrosion)

(2)Continuity test: Use the multimeter to check for connections between component leads and pads (ensure there are no shorts or opens).

5.2 Rework

(1)Component Replacement:

• Components with Through-Hole: Use a desoldering wick or a desoldering wick to remove the old solder. Pull out the component gently while heating the joints.
• SMD components: Apply heat to the component with a reworkstation. Once the solder has liquefied, lift the component usinga tweezer. Apply the paste to the pads and then solder the part.

(2)Pad Delamination/Damage:

• Mild damage (Copper loss 50%): Cleanthe area, apply thin flux, and bridge with enameled wire to an adjacent pad/net (secured with high-temperature taping to prevent stress fracture).
• Complete pad loss: Identify the inner-layer trace (via) by soldering directly to the exposed copper.

(3)THT Cold joints/Bridgings:

• Solder Bridge (Short Circuits): Apply flux to the bridged areas.

Heat the iron and place the solder wick on the bridge until the excess solder has been absorbed.

• Cold Solder Joints: Add flux to the joint. Reflow the solder with the soldering tool until it flows smoothly.

(4)SMT Misalignment/Bridging:

• Misalignment of Components (Terminals not fully on Pads): Heat component witha hot air station, until solder melts. Realign with tweezer.
• QFP Bridging: Use an ultra-fine tip iron with minimal solder to swipe along the lead gaps and separate joints using surface tension. To do extensive bridging with solder, first remove the excess solder using a wick. Then re-solder every lead.

5.3 Post-Rework Processing

(1)Residue cleaning: Wipe the reworked area with isopropyl ethanol to remove flux, and metallic debris and prevent long-term corrosion.

(2)Secondary inspection: Recheck repaired joint visually and continuity; retest IC functionality.

6.Cleaning, Testing, And Final Debugging

6.1 Cleaning

(1)Purpose of Cleaning:

To prevent:

Corrosion or dendritic growth;

Signal interference;

Poor adhesion of conformal coats.

(2)Manual Cleaning Steps:

• Apply IPA on contaminated areas.
• Use a brush or swab to gently scrub the area.
• Use compressed air to dry or a lint-free cloth.
• Examine under UV light to detect residual flux.

Caution:

Avoid using acetone to clean plastics and silkscreen labels.

Use ESD-safe brushes for sensitive components.

6.2 Test

(1)Safety Check Prior to Power

Power Ground Short Detection: Use a multimeter to measure the distance between VCC and the ground. If the resistance is low, turn it off immediately and check for: reverse-installed capacitors, bridged IC pins, and exposed traces due to pad delamination.

Continuity Test: Randomly test 10% of components for solder joint and lead connectivity (buzzers in continuity mode indicate good contact), giving priority to easily missed SMT parts.

(2)Automated optical inspection (AOI ):

Industrial Use: High-resolution cameras scan boards and compare them to CAD data in order to detect missing/misaligned parts.

DIY alternative: Use open-source software and a USB microscope to perform basic pattern recognition.

(3)X–ray Inspection: Detect hidden defects in BGA or QFN structures. Identify solder balls with voids or underfill that are insufficient.

Validate component values (resistance and capacitance), as well as signal paths.

Test the functionality of your board by putting it on power and checking its performance.

6.3 Debugging

(1)Common failure modes:

• Power Issues:

Symptoms include: no power and voltage drops.

Check the outputs of regulators, diode orientations, and fuse continuity.

• Signal Integrity Issues:

Symptoms: Glitches, EMI.

Debugging: Add capacitors to decouple noise and reroute noisy lines.

• Firmware/Software Bugs:

Symptoms: MCU freezes, communication errors.

Debugging: Review code/logs and use JTAG debuggers.

(2)Step-by-Step Debugging Process:

• Identify the problem:

Divide the PCB into functional blocks (power analog, digital).

Identify the problem:

Divide the PCB into functional blocks (power analog, digital).

Test each block separately.

Test each block separately.

• Signal Tracing:

Follow the signals as they move from input to output using an oscilloscope.

• Component-Level Checks:

Replace suspected faulty parts (e.g. swapped ICs).

• Environmental Testing:

Test the product under extreme conditions, if applicable (temperature and vibration).

7.PCB Assembly FAQs

8.Summary

PCB assembly can be a complex and fascinating process. The PCB assembly transforms an electronic circuit into a working component. To create high-quality boards, each step in the PCB assembly is vital. The initial design check is followed by the assembly process, quality control, and verification. In today’s technologically-driven world, PCB assembly skills are essential for anyone working on a high-volume electronic prototype.

The PCBA (Printed Circuit Board Assembly) testing process encompasses comprehensive quality control from raw materials to finished products, ensuring functionality, reliability, and compliance.

Therefore, it is critical to understand its specific testing process and the problems that may be encountered during the testing process and how to solve them. This article will guide you through the entire testing process.

1. Incoming Quality Control (IQC)

(1)Purpose:

Verify that raw materials (PCB substrates, electronic components, solder, etc.) meet specifications, performance, and reliability requirements.

(2)Inspection Content:

Component appearance (package, silk screen, lead oxidation), dimensions, and polarity;

Electrical parameters (resistance, capacitance, inductance, diode/transistor characteristics);

PCB substrate thickness, pad flatness, via quality, and surface coatings (solder mask, gold plating);

Material certification documents (RoHS compliance, batch consistency reports, OEM test reports).

2. Stencil Inspection

(1)Purpose:

Ensure cleanliness, opening precision, and tension of SMT solder paste stencils meet process requirements.

(2)Inspection Content:

Consistency of stencil opening dimensions with design files (aperture size, shape, positional deviation);

Residual solder paste or contaminants on the stencil surface;

Stencil tension (measured via tensiometer for printing stability).

3. Solder Paste Inspection (SPI)

(1)Purpose:

Monitor solder paste printing quality to avoid soldering defects (insufficient solder, excessive solder, misalignment, bridging).

(2)Inspection Content:

Solder paste thickness, volume, position, and shape;

Printing misalignment (alignment relative to PCB pads);

Edge clarity and presence of bridging.

4. In-line Automated Optical Inspection (In-line AOI)

(1)Purpose:

Detect surface mount defects immediately after reflow soldering for real-time process feedback.

(2)Inspection Content:

Missing/misplaced components, polarity reversal, tombstoning, skewing;

Solder joint defects (insufficient/excessive solder, bridging, pad contamination);

Lead deformation or pad damage.

5. SMT First Article Inspection (FAI)

(1)Purpose:

Validate the correctness of the first assembled PCBA before mass production to prevent batch errors.

(2)Inspection Content:

Component designator, type, package, and polarity against BOM;

Placement precision (X/Y offset, rotation angle);

Pad coverage and lead coplanarity (for QFP, BGA, etc.).

6. Reflow Profile Monitoring

(1)Purpose:

Ensure reflow oven temperature profiles meet requirements for solder paste and components, avoiding soldering defects (cold joints, pad detachment).

(2)Inspection Content:

Heating rate, peak temperature, soak time, and cooling rate compliance;

Temperature uniformity across zones (measured via thermocouple boards).

7. In-Process Quality Control (IPQC)

(1)Purpose:

Real-time sampling inspection of critical processes (e.g., pick-and-place calibration, reflow parameters, manual operations).

(2)Inspection Content:

Batch sampling after first article inspection (hourly/shiftly);

Process parameter compliance (placement pressure, solder paste thickness variation);

Production environment (temperature, humidity, ESD protection).

8. In-Circuit Test (ICT)

(1)Purpose:

Test circuit connectivity via bed-of-nails or flying probe systems to locate shorts, opens, and component value deviations.

(2)Inspection Content:

Deviation of resistor/capacitor/inductor values from nominal;

Functional pin connectivity of diodes, transistors, and ICs;

Short/opens between circuit networks (e.g., power-to-ground shorts).

9. Functional Test (FCT)

(1)Purpose:

Validate overall PCBA functionality under power against design specifications.

(2)Inspection Content:

Integrity of input/output signals (voltage, current, frequency, logic levels);

Module functions (communication interfaces, sensor acquisition, drive control);

Human-machine interaction (buttons, displays, indicator lights).

10. Offline Automated Optical Inspection (Offline AOI)

(1)Purpose:

Secondary inspection for complex structures (high density, deep recesses) or sampling, complementing in-line AOI.

(2)Inspection Content:

Same as in-line AOI, focusing on hard-to-reach areas (e.g., BGA peripheral pads, tiny components).

11. X-Ray Inspection

(1)Purpose:

Detect invisible solder joint defects (e.g., BGA, CSP, QFN bottom joints).

(2)Inspection Content:

Solder joint cracks, voids, insufficient/excessive solder;

Solder ball coplanarity and connection integrity;

Alignment between component bottom and PCB pads.

12. Wave Soldering Inspection (Post-Wave)

(1)Application:

For mixed-technology PCBA (SMT + THD), inspect through-hole soldering quality after wave soldering.

(2)Inspection Content:

Via solder penetration (complete filling of through-holes);

Solder joint appearance (saturation, gloss, cold solder, icicles, bridging);

Component damage from heat (e.g., swollen electrolytic capacitors, deformed plastic packages).

13. Manual Visual Inspection (MVI)

(1)Purpose:

Complement automated inspection for qualitative judgment of complex/irregular defects.

(2)Inspection Content:

Appearance defects (component scratches, PCB substrate damage, blurred silk screen);

Solder joint gloss, wettability, and flux residue;

Connector/cable firmness (mounting stability, contact reliability).

14. Reliability Testing

(1)Purpose:

Validate PCBA performance stability under extreme conditions (critical for military, automotive electronics).

(2)Inspection Content:

Environmental stress tests (high/low-temperature storage, thermal cycling, damp heat, salt fog);

Mechanical stress tests (vibration, shock, drop, bend strength);

Life tests (long-term power-on burn-in, load cycling).

15. Final Quality Control (FQC)

(1)Purpose:

Comprehensive final inspection of completed PCBA to meet customer specifications.

(2)Inspection Content:

Random AOI/X-Ray sampling (ratio based on product class);

Functional retest (complementary to FCT, focusing on customer-specific features);

Labeling and packaging compliance (model, batch number, ESD protection).

16. QA Shipment Inspection

(1)Purpose:

Confirm quality status of PCBA ready for delivery, preventing non-conforming products from reaching customers.

(2)Inspection Content:

Sampling per standards (e.g., MIL-STD-105E) for appearance, function, and packaging;

Verification of shipment documents (test reports, compliance certificates, traceability data);

Simulated transport testing (package compression, shock protection).

17. Possible Problems And Solutions during PCBA Testing

17.1 Incoming Quality Control (IQC)

(1)Common Issues

Component Parameter Mismatch: Resistance/capacitance values exceeding tolerance; IC models inconsistent with BOM.

Appearance Defects: Oxidized component leads, contaminated PCB pads, blurred silk screening.

Certification Gaps: Incomplete RoHS compliance documentation; inconsistent batch test reports.

Polarity/Package Errors: Reversed diode polarity; QFP package dimensions mismatched with PCB pads.

(2)Solutions

Implement an intelligent barcode scanning system to auto-match BOM data with component labels, integrated with a database for RoHS compliance verification.

Use an automated optical measuring instrument (AOI) to check lead coplanarity and pad flatness with ±5μm accuracy.

Require suppliers to provide batch traceability codes, enabling end-to-end traceability via blockchain technology.

Employ a visual positioning system for polar components to auto-identify orientation, achieving a lower misjudgment rate.

17.2 Stencil Inspection

(1)Common Issues

Aperture Size Deviation: Reduced openings for components causing insufficient solder paste.

Tension Degradation: Too many times of use of the stencil causes the tension to be lower than the rated value, compromising printing precision.

Mesh Contamination: Dried residual solder paste clogging apertures, leading to printing leakage.

(2)Solutions

Introduce a 3D laser scanner to measure stencil apertures with ±3μm precision.

Establish a stencil lifecycle management system, mandating replacement at <35N/cm tension, equipped with an automatic tension calibrator.

Adopt an ultrasonic cleaner + ionized air drying process, followed by 10x magnifier manual sampling of apertures post-cleaning.

17.3 Solder Paste Inspection (SPI)

(1)Common Issues

Uneven Paste Thickness: Scraper pressure instability causing edge thickness deviation >15%.

Printing Misalignment: Worn PCB locator pins leading to solder paste-pad mispositioning >50μm.

Bridging/Exposed Copper: Solder paste adhesion between fine-pitch (<0.5mm) pads.

(2)Solutions

Install a pressure sensor + servo motor closed-loop system to control scraper pressure within ±1% fluctuation.

Use a vision alignment system (±10μm accuracy) for real-time PCB positioning, with automatic mechanical pin compensation.

For <0.3mm pitch components, apply stepped stencils + edge anti-squeeze design, corrected via SPI 3D measurement.

17.4 First Article Inspection (FAI)

(1)Common Issues

Component Misplacement: Capacitor misapplied as resistor; unsynced BOM updates.

Polarity Reversal: Incorrect electrolytic capacitor orientation due to flawed pick-and-place vision lighting.

Coplanarity Failure: QFP lead warpage >0.1mm causing solder joint opens.

(2)Solutions

Deploy an AI-powered visual FAI system to auto-compare component shape, silk screen, and BOM, with <5-second/component recognition.

Use dual-light (red + blue) imaging for polar components, leveraging machine learning to distinguish polarity marks.

Introduce a laser coplanarity detector for full QFP/SOP lead scanning, triggering automatic line stops for out-of-tolerance results.

17.5 Reflow Profile Monitoring

(1)Common Issues

Abnormal Temperature Curve: Faulty heating zone thermocouple causing peak temperature >250℃ (lead-free solder limit).

Uneven Furnace Temperature: Uneven hot air motor speed leading to intra-board temperature variance >8℃.

Excessive Cooling Rate: Water-cooling leaks causing cooling speed to exceed the specified rate, inducing solder joint cracks.

(2)Solutions

Equip a multi-channel temperature tester (±1℃ accuracy), collecting curves every 2 hours with automatic over-limit alarms.

Regularly calibrate hot air motors (weekly dynamic balance tests) and use a temperature uniformity test board (10-point measurement) in the furnace.

Adopt nitrogen reflow soldering (O₂ <500ppm), adjusting cooling fan speed via PID algorithm for controlled rates.

17.6 In-Line AOI Inspection

(1)Common Issues

High Omission Rate: Invisible bridging on too small solder joints due to low contrast.

High False Alarm Rate: Component color variance triggering increased false positives.

Camera Blind Spots: BGA shadows obscuring adjacent capacitor solder joint detection.

(2)Solutions

Use multi-angle lighting (0°/45°/90° combination) to enhance solder joint contrast, paired with 3D AOI for height analysis.

Build a component feature database, setting independent detection thresholds for different colors/materials to reduce false alarms to <1%.

Install tilted cameras (15° angle) for BGA peripheral areas, using AI image segmentation to identify occluded solder joints.

17.7 In-Circuit Test (ICT)

(1)Common Issues

Probe Contact Failure: Worn gold-plated probes causing open circuit misjudgment (contact resistance >50mΩ).

Boundary Scan Failure: PCB warpage leading to uneven probe pressure.

Analog Component Misreading: Temperature-affected ESR of electrolytic capacitors causing parameter deviations.

(2)Solutions

Use spring pressure sensors to monitor probe force (50–100g), replacing worn probes.

Introduce an auto-leveling fixture with laser profilers for real-time PCB warpage compensation.

Precondition PCBA at constant temperature (25℃±2℃) before testing to minimize thermal effects on component parameters.

17.8 Functional Test (FCT)

(1)Common Issues

Fixture Malfunction: Oxidized connector pins causing signal interruptions.

Software Incompatibility: Mismatched firmware and test program leading to misjudgment.

Uncovered Edge Cases: Functional failures at input voltages beyond rated ±10% undetected.

(2)Solutions

Apply gold-plated connectors + moisture-resistant coatings, with automatic pin cleaning (contact resistance <10mΩ) before each test.

Establish a firmware version management system to auto-verify PCBA firmware-test program compatibility.

Use a programmable power supply (0.1% accuracy) to simulate wide voltage inputs (rated ±20%), covering extreme operating conditions.

17.9 X-Ray Inspection

(1)Common Issues

Excessive Voids: BGA solder joint voids >20% area compromising reliability.

Layer Separation Omission: Invisible inner-layer delamination missed by low-resolution imaging.

Insufficient Resolution: Blurred details on too small solder joints，hindering joint evaluation.

(2)Solutions

Optimize reflow profiles (extend soak time by 5–10s) and use low-void solder paste (voids <10%).

Upgrade to a micro-focus X-Ray system (5μm resolution), employing computed tomography (CT) for delamination detection.

Build a solder joint defect database, using deep learning to auto-identify internal issues like voids/bridges.

17.10 Reliability Testing

(1)Common Issues

Thermal Cycle Failure: Solder joint cracks after 500 cycles of -40℃~85℃.

Vibration-Induced Shorts: Loose connector contacts causing intermittent shorts.

Salt Fog Corrosion: Inadequate conformal coating (<25μm) leading to pad rust.

(2)Solutions

Apply underfill for BGA solder joints to enhance fatigue resistance.

Use a screw torque monitoring system (±5% accuracy) and pre-vibration connector retention force tests (>5N).

Adopt nano-coating technology (30–50μm thickness) to extend salt fog resistance to 1,000 hours without corrosion.

17.11 Systemic Solutions

(1)Data Closed-Loop Management:

Integrate a Manufacturing Execution System (MES) for real-time inspection data collection, with automatic SPC alarm triggering for anomalies.

Use digital twin technology to simulate inspection processes, predicting equipment failure with >90% accuracy.

(2)Error-Proofing Upgrades:

Deploy RFID chips in pick-and-place machines/test fixtures for automatic material-program matching, achieving 100% error prevention.

Implement a dual-inspection + fingerprint authentication system for critical processes (FAI, QA sampling).

Continuous Improvement System:

Hold monthly PFMEA reviews to address high-frequency defects (e.g., BGA voids, 0201 missing components) with targeted plans.

Build a customer complaint knowledge base, tracing field failures back to inspection gaps for parameter optimization.

18. Summary

PCBA inspection processes span the entire lifecycle from raw material receipt to shipment, combining automated tools (SPI/AOI/X-Ray/ICT/FCT) with manual checks (IPQC/MVI) and routine/reliability testing to intercept defects at every stage. Industries (consumer electronics, industrial control, medical devices) can adjust inspection items and sampling strategies based on product complexity and quality requirements, ensuring high-reliability delivery.

PCB copying, also referred to as circuit board cloning, is the process of using reverse R&D technology to analyze circuit boards in reverse, restore PCB files, bill of materials, schematic files, and other technical documents from the original product, and then use these technical documents to create PCB boards, soldering components, testing and debugging, and finally complete the original circuit board samples of a complete copy.

How to Copy PCB?

1. Scan the circuit board that needs to be duplicated for a backup, take out the parts and note the data to make a BOM table, and wipe off any residue from the board’s surface.
2. Import the board copy program, scan the cleaned electronic board, arrange the components and draw wiring based on the picture, and then export the PCB file.
3. Create an electronic board from the PCB file, weld the parts together, and then test and debug to make sure the duplicate electronic board works as intended.

How Does One Go about Copying a PCB?

1. Preparation

• Obtain circuit card: First of all, you need a circuit card, which can be provided by the customer or bought in the market.

• During the copying process, scan and save a copy of the printed board for reference.

2. Remove Components

• Remove Components: Use tools such as hot air gun to remove components from the printed board, pay attention to temperature control to avoid damaging the components or printed board.

• Create a bill of materials list by noting the model, specifications, location, and other details of the components that were taken out.

3. Clean the PCB Board

• Remove residues: After removing the components, clean the surface of the board of tin residue and other residues.

4. Duplicate Board

• Scan the PCB: Scan the cleaned circuit board again to get a clear image.

• Import copy board software: Import the scanned image into copy board software.

• Place components and draw wire: Using the scanned image as a guide, draw the circuit board’s wiring and then insert the appropriate parts into the copy board program.

• PCB file export: The circuit card design can be exported to PCB file format.

5. Manufacturing and Testing

• Make PCB board: Make the board from the exported PCB file.

• Soldering Components: Solder the purchased components to the fabricated the board.

• Test and debug: To make sure the soldered board functions correctly, test and debug it.

6. Notes:

• Legal Compliance: To prevent violating intellectual property rights, you must be mindful of applicable rules and regulations when copying printed boards.

• Control of precision: To guarantee that the circuit board is identical to the original board, precision must be closely monitored throughout the scanning, drawing, and fabrication processes.

Does the PCB that was Duplicated Adhere to the Rules?

The primary determinants of the copied circuit card’s compliance are its intended use and whether or not the applicable intellectual property regulations have been followed.

• Respect for Intellectual Property Rights: When copying the printed card, care must be taken to ensure that the original design’s intellectual property rights are respected.

• Legality of reverse engineering: If reverse engineering is done for a valid reason, it may be acceptable in some circumstances to duplicate printed cards.

The aim of the copying and if the proper intellectual property license has been obtained determine whether or not copying circuit cards is legal. Unauthorized usage for commercial reasons could be against applicable laws and regulations and expose the user to legal consequences.

What Advantages Does Copying a PCB Offer?

1. Time and cost savings: Businesses can save money and time by copying electronic boards instead of starting from scratch. It can save a great deal of time and work, particularly in complicated and urgent assignments.

2. Improve R&D efficiency: copy electronic board can accelerate the product development process, shorten the product development cycle, and get products to market faster.

3. Optimize performance and functionality: copy electronic board are more than just simple copies. Product performance and functionality can be improved by technical data analysis and research, increasing the product’s marketability。

4. Avoid Intellectual Property Issues: Businesses can legally avoid violating others’ intellectual property rights by using copy boards.

What Should I Consider When Making a PCB Copy?

• Backup the original files: Before you start copying, make sure to backup the original PCB files and GERBER files.

• Strict file operation: The electronic board must be copied precisely in accordance with the information in the GERBER file and cannot be altered at will.

• Check the content of the file: After exporting the GERBER file, you need to check the content of the file carefully to ensure the accuracy of the copied board content.

• Inner circuit processing: The inner circuit must be checked through the outer circuit because the inner circuit and copper foil are the only components visible during inner circuit processing.

• Copper plating: The copper foil must be disconnected from the inner circuit and not connected to the outer circuit during copper plating.

• CAM software proofreading: To guarantee the accuracy of the duplicated board material, use CAM software to proofread the finished design.

• Document component information: Prior to copying, thoroughly document the model numbers, specifications, and positions of every component, paying particular attention to the orientation of transistors, diodes, and IC gaps.

• Cleaning: The PCB board should be disassembled and cleaned by removing all parts, cleaning the printed board with alcohol, wiping it dry, and then placing it in the scanner.

• Image processing: Modify the brightness and contrast to create a striking contrast between the copper film-containing and non-copper-film components. Eliminate scratches, noise, etc.

• Converting format: Create a PCB file by converting the processed image to a PROTEL format file, then importing it into PROTEL and checking the PAD and VIA positions for precise overlap.

• Merge and Verify: Import TOP. PCB and BOT. PCB, then combine them into a full board drawing. Copy the TOP layer using a laser printer.

How Do I Copy a PCB?

1. Send in Sample Images

• Customer action: Take clear pictures of the board sample, making sure to include the wiring details and component arrangement on both sides. Then, transmit the pictures to us.

• Notes: For our engineers’ preliminary examination and assessment, make sure the pictures are sufficiently clear to display the component type, placement, and wiring on the circuit board.

2. The First Quote and Correspondence

• The complexity of the printed circuit board in the images, the quantity and kind of components, and other considerations will all be taken into consideration when our engineers evaluate the sample photos.

• Information about the program and IC: In order for us to assess the difficulty and expense of program cracking and provide a more precise price, you must notify us or send us clear pictures of the printed circuit board if it contains program IC.

3. Verify the Cost and Provide Samples

• Price Confirmation: You can get in touch with us again until you and the other party agree on the price if you have any queries or need to make any adjustments after obtaining our initial quotation.

• Sample Delivery: In order for us to perform a more thorough analysis and cloning, you must send us PCB samples—ideally two samples—as soon as the price has been finalized. Once we have the samples, we will provide you a precise quote based on the real samples.

4. Payment and Start of Production

• Payment procedure: You will pay using our payment option once you have verified that the final quotation is accurate.

• Production commencement: Following the customer’s payment, we will formally begin the printed board cloning process, which will include sample analysis, component disassembly, printed board sketching, and other procedures.

5. Delivery of Design Files and Board Production

• Delivery of Design Files: We will email you the full Gerber files, schematics, and BOM for your approval and evaluation after the printed board cloning project is finished.

• Board Manufacturing: Following verification that the design files are accurate, we will start producing the board for you using these files to guarantee that its performance and quality satisfy your needs.

Conclusion

As previously said, every stage of the PCB duplicate process is painstakingly carried out to guarantee that the copy board faithfully replicates the original board’s functionality. Additionally, locating a certified printed board maker is crucial. We have a great deal of experience making printed boards. Please get in touch with us if you require copies.

Here’s how to melt a solid solder junction. This method calls for flux, soldering iron, solder sucker, solder sucker braid.Leaded solder should set the soldering iron temperature between 300 and 350 degrees; lead-free solder should set it between 350 and 400 degrees. And then we should use a toothpick to pick up some flux and put it on the solder joint. The essential thing to do here is to melt the solder, heat is applied from the soldering iron. Remove the hot solder with a braid or solder sucker.

How Can Recalcitrant Solder Be Melted?

1. The melting of stubborn solder can be achieved through the use of appropriate solvents, heating methods, and specialized solvents or cleaners.

2. The composition of the solder determines the solvent used to achieve dissolution. Usually included are acetone, alcohol, acetic acid, toluene, and other solvents. It is done by applying a solvent, allowing it to stand for a minute or two, and cleaning it with a soft cloth.

3. Heat Methods Hot melt solder can be dissolved with heat. Use a heat gun or a specialist heat-fusing device to melt the solder.

4. Use of specialist solvents. Some solvents are tailored to specific types of solder , which are more effective.

What is the Appropriate Way to Remove Solder Excess from a Circuit Board?

Leftover solder after the manufacturing or repair of an electronic board may involve solder films or a few blisters. The residues are supposed to be removed to let the board perform as it’s supposed to under said normal use. Common cleaning techniques are discussed as follows;

1. Method 1

• Soak the board in acetone for around 10 minutes.

• Wipe up whatever residues left after cleaning the board with a 95% alcohol solution.

• Carefully remove with a soft-bristle brush.

• After cleaning, the board can be dried with absorbent material like cotton.

• Utilize a solder sucker to create soldering holes with a needle, then insert and rotate the soldering iron after heating. Alternatively, you can shake the printed board after heating to remove residual tin.

2. Method 2

• Melt the solder connection once more after shaking off the solder with the soldering iron. You should repeat this method multiple times.

• A tiny piece of multistranded wire should next be found, dipped in rosin, and melted with the solder joint. While the wire is still hot, remove it and scrape off any extra solder.

• Next, find a small piece of multi-stranded wire, dip it into rosin, and melt it together with the solder joint. Remove the wire while it is still hot and remove the excess solder.

• For larger areas, consider using a specialized hot air gun or tin furnace.

3. Method 3- Ultrasonic Cleaning

• This method is to soak the board in acetone solution for about 10 minutes.

• Next, the PCB board should be placed into an anhydrous ethanol bottle and placed inside an ultrasonic cleaning tank for approximately 5 minutes.

The temperature specification of various soldering techniques

Manual soldering- The range of temperature required for manual soldering typically ranges from about 300° to 350°. Manual solder-Usually between 300°C and 350°C. Solder the wire in this range.

Temperature Specifications for Various Soldering Techniques

1. Manual Solder

• The range of temperature required for manual soldering typically ranges from about 300° to 350°. Manual solder-Usually between 300°C and 350°C. Solder the wire in this range. It guarantees enough wetness and melts rapidly.

• Time Required Depending on the wave’s height and the conveyor belt’s speed, the process takes three to five seconds.

2. Wave Solder

• Usually accomplished at temperatures ranging from 245°C to 265°C. The goal of this temperature range is to protect the solder from damage during wave soldering. This temperature is crucial to make sure the wave sufficiently moistens the solder and adhesives it to the pads and component pins of the PCB board.

• Time Needed The procedure takes between three and five seconds, depending on the speed of the conveyor belt and the height of the wave.

3. Reflow Solder

• Usually, the temperature ranges between 245°C and 265°C. The temperature profile consists of a preheating zone between 100°C and 150°C, an insulating zone between 150°C and 180°C, a reflow zone between 210°C and 240°C, and a cooling zone.

• Time requirements usually take three to six minutes to complete the reflow procedure.

Which Kinds of PCB Solder joints are there?

1. Surface Mount Solder Joints. This type of connection is used to solder surface-mount components. To bind the component to the PCB surface, solder paste is heated in hot air furnaces and other equipment.

2. For plug-in components, plug-in solder joints are appropriate. Manual soldering or wave soldering must be employed to connect the component pins to the PCB.

3. Components on double-sided or multi-layered electronic boards are soldered with through-hole solder connections. Wave soldering or other methods must be used to secure the component pins once they have been passed through the printed circuit card.

What occurs if the solder joint becomes too hot?

1. Performance degradation Because the electrical components on the circuit board are temperature sensitive, overheating may cause component performance to decline.

2. Reduced Life Electronic components age faster at hot temperatures, shortening their lifespan.

3. Thermal Expansion and Stress The circuit card and its components expand in reaction to temperature changes, and overheating can cause solder connections to flex, shatter, or peel.

What are the recommended temperatures for working with PCBs?

The maximum temperature at which an electronic card can withstand melting solder is 280 degrees Celsius. The solder will melt at this temperature without permanently harming the electronic card. The constructed printed circuit card could be harmed, though, if the temperature rises above this range.

Control of PCB Temperature While Soldering

1. Preheat Temperature. To reduce the impact of thermal stress on the components, circuit boards are typically preheated to 80°C to 120°C before soldering.

2. Soldering Temperature. To ensure that the solder melt completely wets the soldered surface, the solder’s temperature must rise above its melting point during the soldering operation.3. Peak Temperature. Certain parts of the electronic boards may experience peak temperatures during soldering that are higher than the soldering temperature.

We have extensive experience in PCB soldering as a professional complete circuit card manufacturer, and we have highly qualified staff members who know how to use a soldering iron, hot air gun, and other instruments. To guarantee flawless solder joint quality, we also specialize in precision motherboard soldering joints and connecting points on big industrial printed circuit cards.

PCB stencils are metal plates with precisely cut openings. They have a very unique design. They make it possible for adhesives and solder paste to flow through the holes. Their only function is to design the appropriate surface mount component arrangement.

They align with the pad pattern on the board. They act like a mask for the solder paste. All openings correspond exactly to the pads on the board. Typically, the metal is nickel or stainless steel. Generally speaking, the thickness ranges from 3 to 8 mils, contingent upon the design specifications.

Framed and frameless stencils are the two main varieties of PCB stencils. Sturdy metal frames are used to install framed stencils. Framed stencils are mounted in a rigid metal frame. Subsequently, frameless stencils remain flexible and easy to use manually. Modern stencils are usually laser cut to ensure precision. The tolerance of this cutting technique can be as low as ±0.0005 inches.

Types

1. Framed Stencils

Framed stencils are permanently attached to a metal frame. The frame stabilizes the printing. Automated assembly lines are the ideal environment for these stencils. Over the whole surface, they offer the same tension. The majority of high-volume producers use framed stencils.

Additionally, you should know that they cost extra. But they are more durable. Additionally, this kind of frame keeps from warping with prolonged use. Perfect alignment is guaranteed by the tensioning system. Furthermore, even after thousands of printings, the surface quality remains constant.

2. Step Stencils

The thickness of the step stencil varies. The “thicker” the area, the more solder paste is deposited. For fine-pitch components, thinner sections can be used. As you know, they can handle the challenge of mixing components.

These steps stop solder bridges. This style works well for boards with varying component sizes for a greater understanding. The step ratio is usually between 1:1.5 and 1:2. For this reason, precise processing tolerances for each step are very important. For optimal printing results, the thickness should be varied step by step.

3. Frameless Stencils

In general, frameless stencils are similar to flexible metal sheets. Since they are less expensive than framed stencils, they are well-liked. In addition, frameless stencils are better suited for small production runs.

Several prototype labs have used this model for testing. Hand printing works well with frameless stencils. Four to six mils is the usual thickness. You will typically see alignment positioning markers.

Importance

As mentioned earlier, PCB stencils have a direct impact on production quality. For instance, flawless paste deposition is guaranteed with the correct stencil.

Poor stencil quality contributes to high defect rates in PCB assembly businesses. Why is this common? The reason is inaccurate paste placement. Using a stencil can save hours of production time. Due to the speed demanded by modern electronics, it is no longer practical to paste solder by hand.

With thousands of orders per machine, manual solder paste cannot meet deadlines. Therefore, precise solder placement can effectively fulfill this need. Now you know that modern BGAs require perfect solder paste deposition. Only stencils can achieve the required precision. This precision is very important for smaller parts.

How Do I Choose the Right Stencil?

1. The kind of stencil used depends on the board’s arrangement. High-density boards require a framed stencil. Simple designs work better with frameless stencils. The stencil should match the output.

2. Choosing the right thickness is paramount. Fine-pitch components require a thinner stencil. Larger components require a thicker solder paste. Most boards you will find are 4-6 mils thick. Again, complex boards may require stepped stencils.

3. Performance depends on the choice of material. Stainless steel is a very good material for most applications. Nickel is suitable for fine pitch requirements. When the stencil is polished, it stencils better for solder paste. You should also know that the life of the stencil is affected by the grade of the material.

4. Once more, there are other things to be aware of. For instance, make sure that your printer has access to a wireless network. Make sure you have enough room for storage.

5. Another crucial factor is the manufacturing process. The highest precision is recommended here, such as laser cutting operations. Electroforming with ultra-fine pitch also applies. In addition, chemical etching is less expensive. Once more, component density should be the basis for your decision.

How Is a PCB Stencil Used?

1. Cleaning the bare PCB board of dust and oil is the first step. To align the stencil with the PCB pads, move it around. Make sure this is changed appropriately because it will impact the entire job.

2. Applying solder paste to the stencil’s edges is the next step. Take the squeegee and tilt it 45 degrees.

3. Another important step here is to apply the solder paste evenly and firmly. Brush again to make sure all the openings are well covered. Lift the stencil straight up to keep the paste deposited clean.

4. The board to make sure all of the pads are adequately covered with solder paste. Once more, use alcohol to swiftly wash away any dirt. Here, you must use caution. For example, if the solder paste is still wet and hasn’t dried, it’s time to place the components.

5. Next is reflow soldering. Remember that a good stencil is essential for good soldering results.

PCB Stencil Frame

The frame of the PCB stencil is critical for accurate PCB assembly. It keeps the stencil foil in place throughout the paste application process. The stencil frame keeps the tension consistent across the entire surface. If the frame is ignored, solder paste deposition will be inconsistent.

1. PCB Stencil Frame Materials

• Stainless steel is the primary metal material for stencil frames. It resists corrosion from cleaning agents. It is a stable material over a temperature range of 20-150°C with a coefficient between that of 304-grade steel, which most manufacturers use. Their tensile strength is 500-700 MPa. They have a life expectancy of over 50,000 print cycles. High-volume production lines contain them.

• The weight of aluminum frames is around one-third that of stainless steel. Common grades include 7075-T6 and 6061-T6. Tensile strength is between 200 and 400 Mpa, which is 40% less than that of stainless steel frames. They are also well-suited for prototyping and low-volume production. Aluminum frames typically last for about 10,000 print cycles.

• The new composite frames include carbon fiber and an aluminum core. They reduce weight by 60 percent. Their thermal stability is similar to stainless steel. Tensile Strength: 400-600 MPa These frames have a higher initial cost but last longer. They are more resistant to chemical cleaners than pure aluminum.

2. How Do I Choose a Material?

• Check the thermal expansion rate of the material. Output: Use the expansion rates of aluminum：23.6*10^-6 per degree Celsius and stainless steel: 17.3*10^-6 per degree Celsius, they correspond with your stencil foil. By doing this, the stencil foil won’t distort when being preheated for reflow.

• Strength guidelines: You shouldn’t forget about tensile and flexural strength as well. This means that the stencil frame must be able to withstand a tensile force of 30-45 N/cm. Under pressure, it should not bend more than 0.1 mm. But the larger the stencil, the higher the required material strength. For a 29-inch stencil, a tensile strength of at least 450 MPa is required.

• The material’s ability to withstand particular cleaning solvents. The pH range of modern frames is usually 4–11. Although stainless steel costs more, it is more resilient and long-lasting. This material is used in smaller quantities, like aluminum, but saves money. Consider how often they need to be replaced. Consider maintenance costs.

3. Production Requirements

Frames with a lifespan of over 50,000 uses are necessary for the majority of high-volume terminals. Multiple continuous printing shifts must be supported by the frames. For better stability, consider frame mounting systems. These systems have built-in tension mechanisms. It’s also important to choose materials with fatigue resistance over 200 MPa for all-weather operation. In big quantities, it also makes it possible to precisely manage the thickness of frames.

4. Environmental Factors

The surrounding environment is critical to the performance of the frame. As a result, you must follow the right procedures. For instance, keep an eye out for changes in temperature. For best results, temperatures should be controlled within ±5°C. Humidity control is also important, with temperatures between 35-65% recommended. Again, another good practice is to place the temperature sensor close to the stencil handling unit. Turn on the humidity indicator inside the cabinet. Anti-corrosive coatings help protect against coastal salt air. Use cleanroom-specific materials. In addition, framing materials should meet your facility’s fire safety codes.

Conclusion

When it comes to producing accurate solder pastes for SMT, stencils are essential. The arrangement and quality of the components are greatly influenced by the stencil’s quality. Likewise, you have learned that framed, stepped and frameless stencils are suitable for different requirements. Therefore, the right materials, methods, and use are critical. Contact us for in-house production of rapid circuit board assembly.

One common technique for making SMT complete circuit boards is reflow soldering. The PCB that the components will be positioned on is covered with solder paste. Solder paste is applied to the PCB card on which the components will be placed. After that, the electronic board is heated in a reflow oven while being closely watched. The component leads are attached to the assembled circuit board’s pads using melted solder paste. The solder solidifies and the connection is made when the board cools.

Three steps make up the widely utilized reflow soldering procedure. The assembled circuit board is gradually heated to a temperature that melts the solder paste during the preheating stage. The paste achieves its melting point during the melting phase, which varies from 180°C to 250°C depending on the solder. The solder solidifies and creates the required joint during the cooling process. To get a high-quality solder junction, it’s critical to maintain the proper temperature profile.

Typical Reflow Soldering Challenges

Despite its popularity and usefulness, reflow soldering has drawbacks. Maximum temperature control is necessary at every stage of the procedure, including timing and placement. Soldering flaws can result from even minor changes to these parameters. The most frequent issues and difficulties with reflow soldering, along with their fixes, will be discussed in the conversation that follows.

1. Joints of Cold Solder

Weak and partial solder junctions between component leads and circuit boards are the result of cold solder joints, which happen when the solder melts in reflow incompletely. Signal integrity problems and electrical failures may result from these solder connections!

An inaccurate or arbitrary setting of the reflow oven’s maximum temperature might also result in cold solder connections. Furthermore, the PCB output rate and temperature need to be accurate. Preventing cold solder connections requires a steady and consistent temperature profile. Reliable soldering may also be achieved by applying the solder paste correctly and utilizing the best paste for the electronic card component.

2. Blow Holes

Residual air pockets in a solder joint are known as blowholes, also called voids. These voids weaken the solder joint and cause it to fail. Blowholes are most likely to occur when there is insufficient flux or improper heating.

To prevent porosity, there must be enough flux in the solder paste.

This reduces the chance of voids by improving the solder’s flow. Additionally, trapped air can be avoided by tailoring the reflow oven’s temperature profile. For example, regular heating of the circuit board helps avoid blowholes during the reflow process.

3. Insufficient Solder

Insufficient solder is caused by low solder paste on the PCB pads or poor flow of solder paste during the heating process. This factor can cause solder joints to fail easily.

To avoid under-soldering, the pads must be properly aligned and the solder paste supplied in the right quantity. Precision solder paste printers and premium stencils can be used to accomplish this. Additionally, the solder paste can be adequately melted and flowing by regulating the oven’s heating profile, which will leave a sufficient amount of solder at the joint.

4. Solder Bridging

When two adjacent pads have too much solder on them, an accidental connection known as a solder bridge is formed. This problem can be brought on by using too much solder paste, improper component placement, or incorrect reflow profiles. Using the correct ingredients and the precise amount of solder paste is essential to preventing solder bridging. Additionally, you must modify the temperature profile of the reflow oven. This will guarantee that the solder paste melts uniformly and that no excess solder adheres to adjacent electronic cards. Examining the circuit board for excess solder paste before the reflow procedure is another method of detecting solder bridging.

5. Flux Residue

The chemical residue that remains after flux is used to manufacture solder paste is known as flux residue. These can damage your assembled circuit board and possibly lead to corrosion or failure if you don’t deal with them.

By applying the proper flux and cleaning the board after reflow, you may lessen flux residue. The kind of flux you use determines the kind of cleaning solution you use. It is very important to follow the instructions of the manufacturer for removing flux residue to make sure you get the best results.

6. Inconsistent Reflow Profiles

Cold solder connections, inadequate solder, and blowholes are examples of problems that can result from inconsistent temperature profiles during reflow. To accomplish homogeneous soldering, precise reflow temperature profiles are necessary.

Reflow ovens should be calibrated regularly to keep the reflow temperature profile constant and avoid operating the oven in unusual circumstances. You can modify the settings to enhance oven performance by using thermocouples to track the reflow temperature of electronic boards. Like other production equipment, ovens require regular maintenance.

How to Create PCBA to Avoid Reflow Failures

Early adoption of appropriate design techniques can help prevent reflow soldering issues. Designers can reduce the possibility of soldering flaws during reflow by planning the arrangement of components on the board.

1. Make Use of Suitable Pad Sizes

An assembled electronic board’s pads should be the same size as the parts that are being utilized. Pad sizes that exceed requirements can result in poor solder joints, while oversized pads that do not meet requirements can cause solder bridges. The likelihood of these issues happening should be reduced by using pad size guidelines.

2. Keep Big Parts away from Little Pads

Soldering issues might arise from large components that obstruct the flow of solder paste. Avoid positioning bulky components close to tiny pads that need careful soldering when designing assembled circuit boards.

3. Consider Component Orientation

Make sure components are oriented correctly so there are no soldering problems. Incorrectly positioned components may not solder during reflow, necessitating soldering or producing cold solder junctions.

4. Use the Right Solder Paste

Choosing the right solder paste for the task is essential. In applications requiring high temperatures or particular kinds of components, some solder pastes work better than others. A high-quality soldering procedure is the outcome of selecting the right solder paste.

5. Optimizing Component Placement

Before reflow soldering, ensure that the components are securely and precisely positioned on the PCB. Component lead misalignment could result in solder bridging or necessary solder on the PCB, which would harm the PCB assembly.

6. Minimize Through-Hole Components

Some through-hole components are still used in applications, but this can complicate the reflow process. To reduce the likelihood of failure, surface mount components that are better suited for reflow soldering should be utilized wherever feasible.

7. Provides Proper PCB Design for Thermal Management

During the reflow process, thermal management is essential to preserving constant reflow temperatures across the assembled circuit board. The board may be protected against thermal cycling damage by making sure that heat vias and thermal components are positioned appropriately.

Conclusion

Despite being essential for assembled circuit board manufacturing, reflow soldering poses several difficulties. Reflow soldering can lead to a variety of flaws, such as flux residue, inadequate solder, cold solder connections, and blow holes. However, with appropriate design, reflow control, and material selection, these difficulties can be reduced or even eliminated. By understanding and closely observing the nuances of reflow soldering, manufacturers may produce high-quality completed circuit boards for modern devices.
