In an era defined by compact electronics and ever-shrinking devices, the demand for smaller, lighter, and more powerful components has never been higher. From the smartphone in your pocket to life-saving medical implants, the drive towards miniaturization is relentless. At the heart of this revolution lies the ultra-thin PCB(Printed Circuit Board)–a groundbreaking technology that’s reshaping what’s possible in modern electronics design. These cutting-edge circuit boards are not just thinner; they are enabling new functionalities, enhancing performance, and opening doors to innovative product designs previously unimaginable.

This comprehensive guide aims to transform you into an ultra-thin PCB expert, exploring everything from their fundamental definition and the specific materials that make them possible, to their intricate manufacturing challenges and the vast array of applications where they shine. Whether you’re an engineer, a product designer, a purchaser, or simply curious about this pivotal technology, prepare to dive deep into the world of ultra-thin PCBs and discover how they are quietly powering the next generation of advanced electronics.

1. What Exactly Are Ultra-Thin PCBs?

An ultra-thin PCB is a specialized type of printed circuit board characterized by its remarkably reduced thickness compared to standard PCBs. While traditional rigid PCBs often measure around 1.6mm (0.063 inches), ultra-thin PCBs can range from as little as 0.1mm to 0.4mm (0.004 to 0.016 inches). This significant reduction in thickness is achieved through advanced material selection and precise manufacturing processes.

These boards are not merely scaled-down versions; they often incorporate flexible or semi-flexible substrates, making them highly adaptable to complex geometries and tight spaces. The core concept behind their development is to maximize functionality within minimal volume and weight, without compromising performance or reliability. They are crucial for creating high density interconnects (HDIs) in compact devices where every millimeter counts.

2. The Unrivaled Benefits of Ultra-Thin PCBs

The advantages of incorporating ultra-thin PCBs into electronic designs are numerous, directly addressing many of the challenges faced by modern product developers:

• Space Savings :This is perhaps the most obvious benefit. By significantly reducing the Z-axis dimension, ultra-thin PCBs free up valuable internal space in electronic  This allows for smaller overall device footprints or the integration of more components and features within existing form factors.
• Weight Reduction:Less material means less weight. For portable devices, wearables, and aerospace applications, every gram matters. Ultra-thin PCBs contribute significantly to creating lighter products, enhancing user comfort and operational efficiency.
• Enhanced Flexibility:Many ultra-thin PCBs are inherently flexible (often referred to as ultra-thin flex PCBs). This flexibility allows them to bend, fold, and twist, conforming to irregular shapes and tight contours. This capability is vital for innovative designs like foldable smartphones, wearable sensors, and medical devices that must adapt to the human body.

• Improved Heat Dissipation:While counter-intuitive, thinner substrates can sometimes offer better thermal paths, especially when combined with appropriate materials and thermal management strategies. The reduced distance for heat to travel can aid in dissipation.
• Higher Signal Integrity:In certain high-frequency applications, a thinner dielectric layer (the insulating material between copper layers) can lead to better impedance control and reduced signal loss, contributing to superior electrical performance.
• Miniaturization and Integration:Ultra-thin PCBs are key enablers for miniaturization, allowing the integration of complex circuits into extremely small packages. This drives innovation in areas like micro-sensors, implantable devices, and high-density computing modules.

3. Key Materials for Ultra-Thin PCB Fabrication

Choosing the right substrate material is paramount in the design and manufacture of ultra-thin PCBs. The material selection impacts not only the mechanical properties like flexibility and durability but also critical electrical characteristics such as dielectric constant for thin PCB designs and thermal resistance. Here are the most common types:

FR4 Thin PCB

FR4 (Flame Retardant 4) is the most widely used material for rigid PCBs due to its excellent balance of electrical, mechanical, and thermal properties, along with its cost-effectiveness. When used for ultra-thin PCBs, special, thinner prepregs and laminates are employed. An FR4 thin PCB is typically used in standard ultra-thin applications where some rigidity is still desired, but overall thickness needs to be minimized. It offers good dielectric strength and is suitable for many commercial and consumer electronics.

Polyimide Thin PCB

Polyimide is the workhorse for flexible and high-temperature ultra-thin PCBs. Its outstanding mechanical flexibility, excellent thermal stability (withstanding high temperatures without degradation), and superior electrical properties make it ideal for ultra-thin flexible PCB applications. An polyimide thin PCB is often found in devices requiring continuous bending or operation in harsh environments, such as medical implants, wearable technology, and automotive sensors. Its low dielectric constant also makes it suitable for high-frequency designs.

BT Material Thin PCB

BT (Bismaleimide Triazine) material is a high-performance resin system known for its superior thermal reliability, low dielectric constant, and low dissipation factor. These characteristics make a BT material thin PCB an excellent choice for advanced, high-frequency, and high-speed applications. It offers better performance at higher temperatures and frequencies compared to standard FR4, making it suitable for telecommunications equipment, servers, and high-performance computing.

Here’s a comparative overview of these common ultra-thin PCB materials:

4. Manufacturing Ultra-Thin PCBs: Precision and Challenges

The production of ultra-thin PCBs demands extreme precision and specialized techniques, introducing several unique challenges compared to standard PCB manufacturing:

• Material Handling:Ultra-thin substrates, especially flexible ones, are delicate and prone to warping, tearing, or creasing. Specialized equipment and controlled environments are necessary for handling these materials throughout the fabrication process, from lamination to etching.
• Drilling and Plating:Creating precise microvias and through-holes in thin materials requires advanced drilling technologies like laser drilling. Subsequent plating processes must ensure uniform copper deposition without damaging the thin substrate or causing aspect ratio issues.
• Etching and Fine Lines:Achieving extremely fine trace widths and spaces is critical for high-density interconnects in ultra-thin PCBs. This requires highly controlled etching processes to prevent over-etching or under-etching, which could compromise signal integrity.
• Lamination:For multi-layer ultra-thin PCBs, precise alignment and void-free lamination are challenging. The thin layers can easily shift or entrap air, leading to defects. Vacuum lamination and specialized press cycles are often employed.
• Thermal Management:While thinness can aid heat dissipation, the high component density on compact designs can also lead to localized hot spots. Effective thermal management solutions, such as thermal vias or specialized heat sinks, must be integrated carefully.
• Quality Control:Inspection and testing of ultra-thin PCBs require high-resolution imaging and sophisticated electrical testing equipment to detect subtle defects that might not be visible or critical in thicker boards.

5. Diverse Applications: Where Ultra-Thin PCBs Thrive

Ultra-thin PCBs are essential enablers across a wide range of industries, driving innovation and making previously impossible designs a reality:

• Wearable Technology:Smartwatches, fitness trackers, smart glasses, and electronic textiles rely heavily on ultra-thin and flexible PCBs to conform to the body and maintain a lightweight, unobtrusive profile.
• Medical Devices:From implantable pacemakers and neurostimulators to miniature hearing aids and endoscopic cameras, ultra-thin PCBs enable the creation of tiny, high-performance medical electronics that can safely interact with the human body.
• Smartphones and Tablets:The constant push for thinner, lighter, and more powerful mobile devices necessitates ultra-thin PCBs to pack more features into shrinking form factors. This includes components like display drivers, camera modules, and internal antennas.
• Aerospace and Defense:Weight reduction and reliability are paramount in aerospace. Ultra-thin PCBs are used in avionics, satellite systems, and drone technology, where every gram saved contributes to fuel efficiency and performance.
• Automotive Electronics:As vehicles become more connected and autonomous, ultra-thin PCBs are finding their way into advanced driver-assistance systems (ADAS), infotainment systems, and flexible lighting solutions, contributing to compact electronics.
• High-Frequency Communication:For 5G modules, Wi-Fi 6/7, and other high-speed data transmission systems, ultra-thin PCBs with low dielectric constant materials are crucial for maintaining signal integrity and minimizing losses.
• Industrial Sensors:Miniature sensors for environmental monitoring, industrial automation, and IoT devices benefit from the small size and durability offered by ultra-thin PCB technology.

6. Future Trends in Ultra-Thin PCB Technology

The evolution of ultra-thin PCBs is far from over, with ongoing research and development promising even more exciting advancements:

• Further Miniaturization:The drive for even thinner boards and finer features will continue, pushing the boundaries of material science and manufacturing precision.
• Enhanced Functionality:Integration of more advanced functionalities directly onto the PCB, such as embedded components (passives and active ICs), will become more common, leading to even greater component density and smaller modules.
• Advanced Materials:Development of new substrate materials with improved thermal management, higher frequency performance, and greater environmental resilience will be key. This includes novel ceramic-based or polymer-composite materials.
• Increased Flexibility and Stretchability:Beyond simple flexibility, future ultra-thin PCBs may offer stretchable properties, making them ideal for highly dynamic wearable applications, e-textiles, and bio-integrated electronics.
• Sustainability:Research into more environmentally friendly manufacturing processes and recyclable or biodegradable ultra-thin PCB materials will gain traction, aligning with global sustainability goals.
• Hybrid Approaches:The combination of rigid and flexible ultra-thin sections (rigid-flex PCBs) will become more sophisticated, allowing for intricate 3D interconnect solutions that optimize space and performance.

7. Ultra-Thin PCB FAQs

8. Summary

Ultra-thin PCBs are more than just a slimmer version of traditional circuit boards; they are a cornerstone of modern electronics, essential for driving miniaturization, enhancing flexibility, and improving performance across a myriad of applications. From consumer electronics to critical medical and aerospace systems, their ability to deliver complex functionality in minimal space and weight is unparalleled. While their manufacturing presents significant challenges, ongoing advancements in materials and processes continue to push the boundaries of what these tiny titans can achieve, ensuring their pivotal role in the future of compact electronics and innovative design.

Key Takeaways

• Ultra-thin PCBs are crucial for miniaturization, reducing device size and weight by offering board thicknesses as low as 0.1mm.
• They provide significant benefits including space savings, weight reduction, enhanced flexibility, and improved signal integrity.
• Key materials for ultra-thin PCB materials  include FR4 (for standard needs), polyimide (for flexibility and high temperatures), and BT material (for high-frequency/high-thermal performance).
• Manufacturing ultra-thin PCBs demands extreme precision, facing challenges in material handling, drilling, etching, and lamination.
• They are indispensable in diverse sectors such as wearables, medical implants, smartphones, aerospace, and high-frequency communication.
• Future trends point towards even greater miniaturization, advanced functional integration, and the development of sustainable, stretchable materials.

In the fast-paced world of electronics, efficiency and cost-effectiveness are paramount. Printed Circuit Boards (PCBs) are the foundation of virtually all electronic devices, and their manufacturing process is a complex dance of precision and speed. One crucial technique that significantly streamlines this process is PCB panelization. This method is the unsung hero behind mass-produced electronics, transforming individual board fabrication into a highly efficient, assembly-line operation.

PCB panelization, often referred to as PCB array or PCB nesting, involves arranging multiple individual PCBs onto a larger, single panel. This panel is then processed as a single unit throughout various stages of fabrication and assembly, rather than handling each board separately. The result? A dramatic reduction in manufacturing time, material waste, and overall production costs. Whether you’re a seasoned PCB designer or a manufacturer looking to optimize your workflow, understanding the nuances of panelization is key to unlocking greater productivity and profitability.

1. What is PCB Panelization?

PCB panelization is a manufacturing practice where several individual printed circuit boards are grouped together onto a larger substrate, known as a panel or array, for simultaneous production. Instead of manufacturing and assembling each board independently, multiple identical or even different board designs are fabricated as a single unit. After all manufacturing and assembly processes are complete, these individual PCBs are then separated from the panel along pre-defined lines.

This method is widely adopted in high-volume PCB manufacturing due to its ability to drastically improve efficiency. By treating an array of boards as one, factories can maximize the use of their equipment, such as pick-and-place machines for automated assembly, reflow ovens, and soldering systems . This centralized processing minimizes the number of times equipment needs to be set up or reconfigured, thereby saving valuable time and labor. The ultimate goal of panel design is to optimize the manufacturing process from start to finish, ensuring a smooth transition through each stage of production.

2. Why Panelize? Unpacking the Benefits

The importance of PCB panelization cannot be overstated for modern PCB manufacturing and PCB assembly. It offers a multitude of advantages that directly impact a project’s bottom line and timeline. Here are the primary benefits:

• Enhanced Efficiency and Throughput:By processing multiple boards concurrently, manufacturers can achieve higher production volumes in less time. This parallel processing significantly reduces cycle times, making it ideal for large-scale production runs and improving the overall efficiency of the assembly line.
• Significant Cost Reduction:Cost reduction is perhaps the most compelling benefit. Panelization minimizes setup times for machinery, reduces material handling costs, and optimizes the use of raw materials by tightly nesting designs. This economy of scale translates to lower per-board production costs, making projects more competitive.
• Improved Handling in Automated Assembly:Individual small PCBs can be difficult to handle with automated assembly equipment. A larger, rigid panel provides a stable substrate that is easier to transport, load into machines, and manage throughout the assembly process. This reduces the risk of damage and ensures consistent placement.
• Reduced Material Waste:Intelligent panel design allows for better utilization of raw PCB laminate material. By arranging multiple boards, designers can minimize the unused space on a panel, leading to less scrap material and greater sustainability.
• Consistent Quality and Reliability:Processing boards in a panel ensures that each unit undergoes the same manufacturing conditions simultaneously. This consistency helps in maintaining uniform quality across all boards, reducing variations that might occur if each board were processed individually.
• Streamlined Testing:A panel can often be tested as a whole or in sections before individual boards are broken apart. This can simplify and speed up functional testing, further contributing to efficiency.

Ultimately, panelization is a strategic choice that boosts manufacturing capabilities, cuts expenses, and ensures the reliability of the final electronic product.

3. Key Techniques for PCB Panelization

The method chosen for separating individual PCBs from the panel is a critical design tip that influences the entire panel design and subsequent PCB assembly. The two most common and effective techniques are V -scoring and tab routing, each with distinct advantages and applications.

V-Scoring (V-Groove)

V-scoring, also known as V-grooving, involves cutting a V-shaped groove into the top and bottom surfaces of the PCB panel. These grooves are made along the lines where the individual boards will eventually be separated. The remaining material in the middle acts as a weak point, allowing the boards to be ” snapped” apart manually or with a specialized depaneling machine after PCB assembly.

1) How it works: A rotary cutter makes a precise V-cut, typically about one-third of the board thickness, on both sides of the panel. The remaining material in the center ensures structural integrity during manufacturing and assembly.

2) Advantages:

• Cost-effective for high-volume production.
• Faster separation process compared to routing.
• Produces clean edges, provided the snap-off is executed correctly.
• Requires minimal space between boards, optimizing material usage.

3) Limitations:

• Only suitable for boards with straight-line separation. Complex shapes or curves cannot be V-scored.
• Components cannot be placed too close to the V-score lines (typically within 0 .5mm) to prevent damage during depaneling.
• Can generate some stress on components during separation.

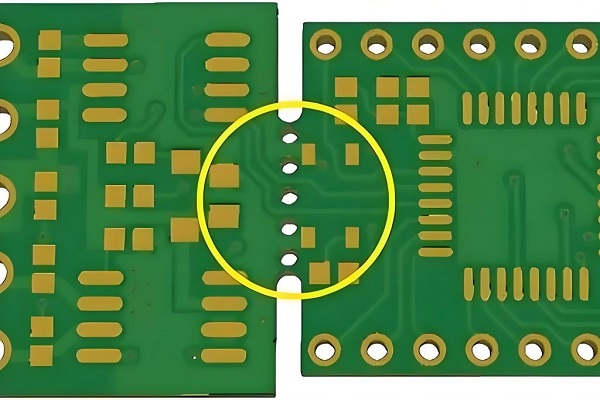

Tab Routing (Breakaway Tabs)

Tab routing, or using breakaway tabs, involves routing the outline of each individual PCB on the panel, but leaving small, unrouted sections (tabs) that connect the board to the panel frame or to adjacent boards. These tabs are typically perforated with “mouse bites” (small holes) to weaken them, making separation easier.

1) How it works: A router cuts the board outlines, leaving 2-5 small tabs (often 0 .5mm to 2mm wide) along the perimeter of each board. These tabs are designed to be easily broken post-assembly.

2) Advantages:

• Allows for boards with complex shapes, curves, and internal cutouts.
• Components can be placed closer to the board edge compared to V-scoring.
• Less stress on components during separation, especially with well-designed mouse bites.
• Offers greater design flexibility.

3) Limitations:

• Generally slower and more expensive than V-scoring due to routing time.
• Requires more spacing between boards for the router bit.
• Edges may not be as perfectly smooth as V-scored boards, often requiring light sanding or filing after breaking, especially if the tabs are large or poorly designed.
• The “mouse bites” can sometimes leave small burrs.

Comparison of Panelization Techniques

Here’s a quick overview comparing the two methods:

4. Crucial Design Considerations for Effective Panelization

Successful PCB panelization isn’t just about choosing a separation method; it requires careful attention to several design tips and best practices. These considerations ensure optimal PCB manufacturing and PCB assembly processes, leading to high-quality, cost-effective outcomes.

Component Placement and Keep-Out Zones

One of the most critical aspects is the placement of components, especially for boards that will be separated using V-scoring or breakaway tabs.

• For V-scoring, ensure that no components, traces, or pads are placed directly over the V-groove lines. A minimum keep-out distance (typically 0.5mm to 1mm) from the score line is essential to prevent damage during depaneling.
• With tab routing, components can be placed closer to the board edge, but it’s still advisable to maintain a small clearance from the tabs themselves, especially if they contain “mouse bites,” which can cause localized stress. Avoid placing heavy components near the breakaway tabs.

Failing to observe these zones can lead to cracked components, lifted pads, or compromised solder joints when the boards are separated.

Fiducials and Tooling Holes

For automated assembly, accurate alignment is paramount. Fiducials are copper pads or shapes placed on the panel design and individual PCBs that act as reference points for vision systems on pick-and-place machines.

• Global Fiducials:Placed on the panel’s edge rails , these align the entire panel with the assembly equipment.
• Local Fiducials:Placed on individual PCBs (often in pairs), these help the machine precisely align specific components, especially fine-pitch devices.

Tooling holes (or registration holes) are non-plated through-holes strategically placed on the edge rails of the panel. These holes allow the panel to be accurately pinned and secured onto assembly jigs, conveyors, or testing fixtures, ensuring consistent positioning throughout the process.

Edge Rails and Clearances

Edge rails, also known as “breakaway rails” or “tooling strips,” are strips of material added to the perimeter of the PCB panel. They serve multiple purposes:

• Provide structural integrity to the panel during handling and assembly.
• Offer space for global fiducials, tooling holes, and barcodes for traceability .
• Facilitate clamping by automated assembly equipment without interfering with the active circuitry.

Adequate spacing between individual PCBs on the panel and between the PCBs and the edge rails is crucial. This clearance is necessary for the router bit during tab routing or to prevent components from encroaching on the V-score lines. Typical spacing ranges from 1.5mm to 3mm, depending on the chosen separation method and manufacturer capabilities.

Panel Size and Layout Optimization

Choosing an appropriate standard panel size is important, as manufacturers often work with specific dimensions to maximize equipment utilization. The panel design should optimize the number of boards per panel without compromising manufacturing tolerances or component placement. Consider factors like board orientation to facilitate efficient automated assembly and solder paste printing, especially for double-sided boards. Rotating some boards 90 or 180 degrees can sometimes improve cost reduction by allowing more boards to fit within a given panel area.

5. Overcoming Panelization Challenges

While PCB panelization offers significant benefits, it’s not without its complexities . Awareness of these challenges allows designers and manufacturers to proactively implement solutions, ensuring a smoother PCB manufacturing and PCB assembly process.

• Component Placement Constraints:As discussed, components near panel edges or separation lines can be vulnerable to stress or damage during depaneling. Careful design tips regarding keep-out zones are essential to mitigate this.
• Thermal Management:If the individual PCBs generate significant heat, arranging them closely on a panel can exacerbate thermal issues during reflow soldering. The combined thermal mass needs to be considered to ensure proper solder joint formation without overheating components.
• Manufacturing Tolerances:Even with precision equipment, there are inherent manufacturing tolerances . These can affect the accuracy of V-scoring or tab routing, potentially leading to uneven breaks or slight shifts in board dimensions after separation.
• Assembly and Testing Considerations:While panelization aids automated assembly, testing requirements for panels can sometimes be more complex than for individual boards. Developing panel-level test fixtures requires careful planning.
• Cost vs. Complexity:For very small production runs or highly unique board shapes, the upfront cost and design effort of panelization might outweigh the benefits. Balancing cost reduction with the complexity of panel design is key.

6. Tools for PCB Panelization

Modern Electronic Design Automation (EDA ) software plays a pivotal role in optimizing PCB panelization. Tools like Altium Designer, Eagle, KiCad, and Cadence Allegro (mentioned in one source’s context) offer functionalities that assist designers in creating efficient panel layouts. These software packages can help with:

• Arranging multiple instances of a board design or different designs onto a panel.
• Defining V-scoring lines or tab routing paths with “mouse bites.”
• Adding fiducials, tooling holes, and edge rails.
• Performing design rule checks (DRC) to ensure clearances and prevent issues with component placement near separation lines.
• Generating the necessary output files ( Gerber files, drill files) that the PCB manufacturing facility uses to produce the panel.

Utilizing these specialized tools is crucial for ensuring the quality, reliability, and manufacturability of the final product while maximizing efficiency and cost reduction.

7. PCB Panelization FAQs

8. Summary

PCB panelization is an indispensable technique in modern PCB manufacturing, enabling manufacturers to produce electronic circuits with unparalleled efficiency and significant cost reduction. By grouping multiple PCBs onto a single panel, the entire fabrication and automated assembly process is streamlined, minimizing material waste and optimizing equipment utilization. Key panelization methods like V-scoring  and tab routing (with breakaway tabs) offer distinct advantages, catering to different board geometries and production needs. Successful implementation hinges on careful design tips, including strategic component placement, the incorporation of fiducials and  tooling holes for alignment, and well-designed edge rails. Despite challenges such as thermal considerations and manufacturing tolerances, leveraging specialized software tools allows for the creation of robust panel design solutions. For any designer or manufacturer aiming to scale production, boost efficiency, and ensure the quality of their electronic products, mastering PCB panelization is not just an option—it’s a necessity.

Key Takeaways

• Efficiency is Key:PCB panelization dramatically boosts efficiency in PCB manufacturing by processing multiple boards simultaneously.
• Cost Savings are Real:It leads to substantial cost reduction by optimizing material usage, reducing setup times, and improving automated assembly throughput.
• Choose Wisely:V-scoring is best for straight-edged boards, while tab routing with breakaway tabs offers flexibility for complex shapes .
• Design for Success:Proper component placement, fiducials, tooling holes, and edge rails are critical for a flawless panel design.
• Leverage Technology: Utilize EDA software to effectively plan and execute your PCB panelization strategy.

Let’s face it, today’s electronics aren’t just faster, they’re smarter, more compact, and way more demanding under the hood. And when you’re building anything that sends or receives a signal, be it a smartphone, radar system, or even a satellite, you can’t just slap down any old circuit board and hope for the best.That’s where the RF PCB and high frequency PCB manufacturers come in.

These aren’t your average boards. They’re built for speed, precision, and signal integrity. If a standard PCB is the family sedan, these boards are more like tuned sports cars, built for performance under very specific conditions. Whether you’re working in aerospace, military, telecom, or medical devices, ignoring these specialized circuit boards is a rookie mistake.

We’re going to break down everything you need to know: what sets an RF PCB apart, what makes a high frequency PCB manufacturer tick, and how to design and source the right one. From materials to manufacturers, we’ve got you covered.

1. What Is an RF PCB? (And Why It’s Not Just a Buzzword)

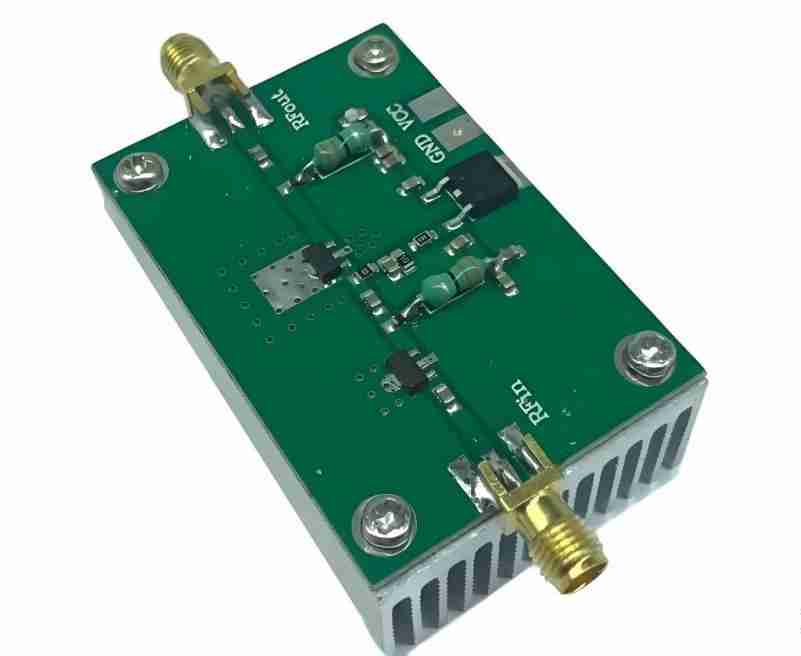

An RF PCB, or radio frequency printed circuit board, is exactly what it sounds like, it’s a circuit board specifically designed to carry signals in the radio frequency range. That typically means anything above 100 MHz and often into the gigahertz zone. In short, it’s the brain of anything wireless.

Now, let’s not confuse this with a regular PCB. An RF circuit board isn’t just about routing signals from A to B, it’s about doing it cleanly, with minimal interference, loss, or distortion. That’s why RF PCB design takes into account things like impedance matching, dielectric loss, and electromagnetic shielding in ways regular boards don’t even touch.

Picture a walkie-talkie, a GPS device, or a Wi-Fi router. All of those are powered by some form of RF board. And guess what? Not all RF PCBs are made equal. Some are multilayered, some are built with exotic materials like PTFE or ceramic-filled laminates, and others are just compact, single-layer RF prototype boards for quick testing.

You’ll often hear terms like RF printed circuit board or RF PCB board thrown around, these all refer to the same thing. But the real differentiator is in the material stack-up and layout, not just the label. And if your application relies on clean signal transmission? You need the right kind of RF PCB, no compromises.

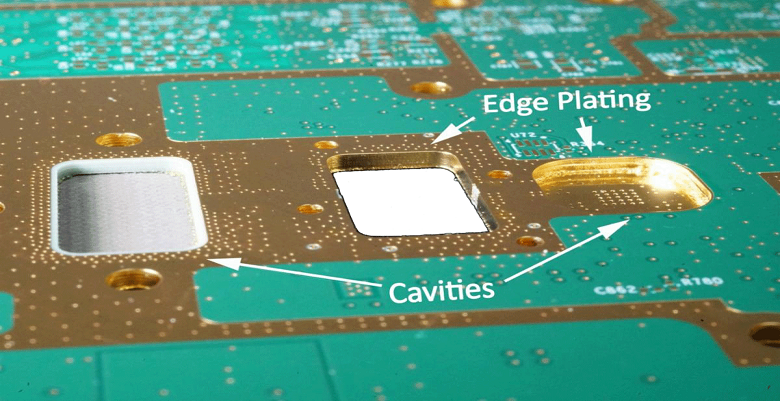

2. The High Frequency PCB: Why Materials Make or Break It

So how’s a high frequency PCB different for high frequency PCB manufacturers?

For starters, while all RF PCBs are designed for radio frequencies, not all high frequency PCBs are technically “RF.” A high frequency PCB manufacturer focuses on signal performance above 500 MHz, often going up to 10 GHz and beyond. But it’s the materials that really define the difference.

Regular FR4 won’t cut it here. You’re dealing with ultra-low loss materials like Rogers, Taconic, or Isola laminates. These high frequency PCB materials help maintain signal integrity over longer distances and higher frequencies. They’re also more thermally stable, which matters a lot when you’re working with power amplifiers or fast-switching circuits.

But the real challenge? These materials behave differently in the manufacturing process. They expand more. They’re softer. They can warp. And they cost more, too. So you don’t just need a good design, you need a manufacturer that knows how to handle this stuff.

When we say RF PCB material matters, we’re not just being picky. The wrong substrate can wreck your entire signal path. That’s why high frequency circuit boards are often custom builds. You can’t just grab any board off the shelf.

And here’s a tip: if your board is expected to function in a high-speed wireless device, it probably needs to be both an RF PCB and for a high frequency PCB manufacturer. The overlap is real.

3. Designing for Speed: RF PCB Design vs High Frequency PCB Design

If you think designing an RF PCB is just about choosing fancy materials and tracing a few lines, you’re in for a rude awakening. Both RF PCB design and high frequency PCB manufacturers’ designs require surgical precision. And while they share some DNA, there are some critical differences you need to know.

Let’s break it down.

3.1 RF PCB Design Essentials

Designing an RF circuit board means managing signal transmission at very high frequencies, often in the gigahertz range. That means you have to deal with things like:

• Controlled impedance: Your traces are basically tiny antennas.
• Minimal parasitics: Inductance and capacitance kill clean signals.
• Tight stack-ups: Even small material shifts affect performance.
• Precise trace geometry: Width, spacing, and layer count all matter.

Even a millimeter of trace routing error can lead to reflections, noise, or outright signal failure. So when it comes to RF PCB design, there’s no room for freelancing, it’s science, not art.

3.2 High Frequency PCB Design Differences

High frequency PCB manufacturer design takes the above and adds another layer of challenge. Here, you’re also looking at:

• Dielectric constant stability(Dk): It needs to be consistent across temperature and frequency.
• Low loss tangent: Essential to avoid signal attenuation.
• Thermal management: These boards heat up fast under high-speed operations.

The real trick is that high-speed designs demand both electrical performance and thermal reliability.

3.3 RF vs High Frequency Design: At a Glance

Whether you’re working on an RF circuit board design or a multilayer RF PCB design, planning is everything. One wrong move early on, and it’s game over for signal quality.

4. Shielding & Signal Integrity: Key RF Board Techniques

Let’s talk about what really makes or breaks your board once it’s powered up: signal integrity and shielding. When it comes to RF boards and high frequency PCBs, keeping those signals clean is priority number one.

4.1 Why Shielding Is Non-Negotiable

Without proper shielding, your RF PCB becomes a noisy, glitchy mess. Electromagnetic interference (EMI) can destroy signal clarity or, worse, affect nearby devices. A good RF shielding PCB:

• Prevents external signals from interfering with your circuit.
• Keeps your device from interfering with others.
• Helps reduce crosstalk between high-speed traces.

That’s why high-frequency devices often use copper enclosures, Faraday cages, or conductive coatings, even on multilayer boards.

4.2 Signal Integrity Must-Haves

Here’s a shortlist of things you should absolutely be doing for signal integrity in both RF PCBs and high frequency PCBs:

• Keep trace lengths short and matched
• Use ground planes for consistent return paths
• Avoid 90-degree trace angles
• Space sensitive signals away from noisy power lines
• Simulate everything before you send the design to the manufacturer

If your signals aren’t clean, you’ll get packet loss, reflection, jitter, or worse, your board won’t function at all.

Even if you’ve done your RF PCB or Microwave PCB design right, failing at signal integrity will wreck it. It’s like tuning a race car engine and forgetting to check the brakes.

5. Choosing the Right RF PCB Manufacturer

Designing a board is one thing. Getting it made right? That’s a whole different beast.

Whether you’re working on a complex high frequency PCB or a single-layer RF prototype board, your RF PCB manufacturer can make or break your project. No exaggeration, cheap shortcuts or lack of expertise will absolutely show in your final product.

5.1 What to Look For in an RF PCB Manufacturer

Before you send out that Gerber file, ask yourself:

• Do they specialize in high frequency PCB manufacturing?
• Can they handle exotic materials like PTFE or ceramic-filled laminates?
• Do they offer testing and validation options beyond the bare minimum?
• Can they produce multilayer RF PCB designs with tight tolerances?

It’s not just about what they claim, they need to show proof. That’s where datasheets, test reports, and real client samples come in.

5.2 Beware the “Yes-Man” Manufacturer

If a supplier says yes to everything and asks zero questions? Walk away.

A real RF PCB manufacturer or Microwave PCB manufacturer will push back if your layout has flaws, or if your material choice won’t hold up at 8 GHz. Silence isn’t professionalism, it’s a red flag.

5.3 Comparing Manufacturers: The Smart Way

Here’s a quick table to help separate the pros from the placeholders:

A good RF PCB manufacturer will walk you through their process. They’ll show what they check during fabrication, how they deal with layer misalignment, and how they catch defects before shipping.

5.4 Pro Tip: Manufacturer vs. Assembly House

Don’t confuse an RF PCB manufacturer with an assembler. Some shops just solder your components onto boards they didn’t even fabricate. For high frequency PCB manufacturer builds, that’s risky business. Always ask:

“Do you fabricate the board yourself?”

If not, make sure you know exactly who does, and whether they’re qualified to handle complex designs and exotic materials.

5.5 Recommended: Y&T Technology Development Co.,Ltd.

If you’re looking for a reliable, cost-effective option that specializes in both RF PCB and high frequency PCB manufacturers, check out ASSYPCB.com.

With over 14 years of experience in PCB manufacturing and assembly, they’re a one-stop shop trusted by engineers across the US and Europe. From RF prototype boards to full-scale multilayer RF PCB design, they deliver the kind of performance and communication you’d expect from a top-tier supplier.

6. Testing & Prototyping Your RF PCB Assembly

Even with the best RF PCB design and materials, if your board isn’t tested properly, it’s a gamble. And in high-frequency applications, a failed board isn’t just inconvenient, it’s a project killer.

6.1 Testing Methods You Should Expect

Every legit RF PCB manufacturer should offer more than just a visual check. Here’s what to ask for:

• Flying probe testing: Great for low-volume or prototype runs.
• Impedance control verification: Ensures your signal traces match spec.
• X-ray inspection: Critical for BGAs and hidden joints.
• Thermal cycling: Stress-tests how the board handles temperature swings.

Don’t assume any of this is automatic. If your RF prototype board arrives untested, it’s practically unfinished.

6.2 Why Prototyping Matters (A Lot)

Prototyping isn’t optional. Before you order a big run of high frequency PCBs, you need to:

• Validate the stack-up and materials
• Confirm signal behavior in real-world conditions
• Identify layout or fabrication flaws early

Working with a partner likeY&T Technology Development Co.,Ltd. makes this easier, they handle RF PCB prototyping with the same care they put into large orders, including all the necessary QA checks.

7. Application Spotlight: Where These PCBs Shine

So where do RF PCBs and high frequency PCB manufacturers actually get used? Pretty much anywhere speed, precision, and reliability matter. Here’s a quick rundown:

Real-World Use Cases

• Telecom: Base stations, antennas, and RF switches
• Automotive: Advanced driver-assistance systems (ADAS), radar sensors
• Medical: Wireless patient monitors, MRI machines
• Aerospace: GPS, satellite communication, navigation
• Military/Defense: Secure comms, radar, jamming devices

And that’s just scratching the surface. As devices get smaller and more capable, the demand for high frequency circuit boards will only keep growing.

8. RF PCB and High Frequency PCB FAQs

9. Summary

To recap, RF PCBs and even high frequency PCB manufacturers aren’t luxuries, they’re necessities in modern electronics. From the materials you choose to the RF PCB manufacturer you work with, every detail matters.

Here’s the quick checklist:

• Understand your design goals before selecting materials.
• Use simulation tools to optimize signal integrity.
• Vet your manufacturer, not just for price but for testing, communication, and real-world experience.
• Prototype everything, don’t assume you got it right the first time.

If you’re serious about performance, the days of cutting corners are long gone. Trust your design, trust your testing, and trust a factory like Y&T Technology Development Co.,Ltd. to get the job done right.

We want our devices to fold, twist, and curve, but we still expect them to be rock-solid and reliable. That’s the challenge.Enter the rigid flex PCB, a hybrid board that blends the stability of traditional rigid boards with the flexibility of soft circuits. If you’ve ever picked up a smartwatch, unfolded a smartphone, or used a medical sensor patch, you’ve already held a rigid flex board in your hand.

Unlike a standard PCB, a rigid and flex PCB does exactly what it says on the label: part of it bends, and part of it doesn’t. That combo opens up a whole new world for engineers, especially when space is limited and movement is expected.

1. What Is a Rigid Flex PCB?

Let’s keep this simple.

A rigid flex PCB is a circuit board that combines rigid sections (typically made from FR4) and flexible layers (often polyimide). These layers are laminated into a single structure, so there are no connectors between them, no soldered jumpers, no cabling.

It acts like one board, even though parts of it fold.

This makes rigid flex rigid PCBs perfect for 3D designs. Need to wrap a circuit around a hinge? Done. Need a board that folds during installation but stays rigid once placed? That’s what flexible rigid PCBs are built for.

In a PCB rigid flex design, the flex portions connect the rigid sections internally. These flexible sections often experience bending, folding, and even constant movement. That’s why the material and stack-up matter so much.

If you’ve heard terms like “rigid flex printed circuit boards” or “flex-rigid PCBs,” they all mean the same thing: a board built to bend where it needs to, and hold firm everywhere else.

2. How Rigid Flex Circuit Boards Are Built

So how are these boards made? Spoiler: it’s not easy.

Building a rigid flex PCB requires more than just gluing a flex cable between two rigid boards. This is a full manufacturing process that blends multiple substrates into one precisely layered structure.

Here’s what goes into it:

1) Material Selection

It starts with choosing the right core materials. FR4 (a standard rigid material) forms the solid sections, while polyimide handles the flex regions. The two must bond well, and handle heat, stress, and movement.

2) Layer Stack-up

The stack-up defines the layout: which layers are rigid, which are flex, and how they transition. This is where rigid flex PCB fabrication gets tricky, mistakes here lead to peeling, cracking, or delamination during use.

3) Drilling, Plating & Imaging

Both rigid and flexible zones are drilled for vias, then plated and etched. Because of the mix of materials, imaging and registration demand much tighter tolerances than in standard PCB production.

4) Bonding and Lamination

This step merges the rigid and flexible layers into one unified board. Done wrong? You’ll get bubbles, wrinkles, or broken traces. This is why only experienced rigid flex PCB suppliers should touch this kind of job.

5) Stiffeners and Reinforcements

Where needed, stiffeners may be added to strengthen connectors or mounting points, especially in a pcb flex rigid layout used in consumer devices or military gear.

3. Why Choose a Rigid Flex PCB Over a Traditional One?

So why not just use a standard rigid board with a flex cable? Or even two boards connected by a ribbon?

Because in most modern designs, that’s no longer good enough.

A rigid flex PCB replaces those connectors with permanent internal layers. That means:

• No cables to fail
• No bulky connectors
• No extra solder joints to crack

It’s all in one structure.

That’s what makes a pcb flex rigid layout not only sleeker, but also more durable. You’ll see this in aerospace tech, foldable phones, medical tools, even high-end audio gear. The electrical signals travel cleaner, and the whole device becomes more robust.

A rigid flex circuit board can also bend to fit weird enclosures. Traditional PCBs? Not a chance. And if your product has moving parts, hinge folds, or tight housing, only a flexible rigid PCB will survive without issues long term.

In short, the rigid and flex PCB combo solves a lot of problems:

• It saves space
• It increases durability
• And it keeps your design cleaner, simpler, and lighter

4. Real-World Applications of Rigid Flex Circuit Boards

Here’s where rigid flex boards show up in the wild, and why they’re now a staple in high-stakes industries.

1) Aerospace

Satellites, drones, and avionics rely on rigid flex PCBs to handle shock, vibration, and space constraints. You don’t want connectors shaking loose mid-flight.

2) Medical Devices

From pacemakers to surgical imaging tools, rigid flex printed circuit boards allow compact, reliable electronics that can fold into tight implantable or handheld designs.

3) Foldable & Wearable Electronics

Flexible displays, smartwatches, and fitness trackers depend on flexible rigid PCBs to allow movement while maintaining function.

4) Military and Defense

Rigid and flex PCBs are essential in field gear where ruggedness and lightweight construction are critical, radios, scopes, GPS units, targeting systems.

5) Industrial Controls & Robotics

Anywhere there’s motion and complexity, robotic arms, automated machines, sensor-packed panels, you’ll likely find a pcb rigid flex design managing the signals.

5. Rigid Flex PCB Benefits vs. Limitations

Let’s break it down.

5.1 Key Advantages

1) Space-saving and Compact:

Thanks to built-in flex layers, a rigid flex PCB takes up less room, fits in odd shapes, and replaces clunky wire harnesses.

2) Fewer Connectors = Fewer Points of Failure:

Every soldered joint or cable adds risk. With rigid flex circuit boards, everything’s integrated, so fewer things go wrong.

3) High Reliability:

Used in life-critical and mission-critical systems, rigid flex PCBs offer long-term durability even in harsh, high-vibration environments.

4) Excellent Signal Integrity:

Shorter paths between layers, fewer interconnects, and tightly controlled impedance mean cleaner, faster data transmission.

5.2 Limitations to Consider

1) Higher Rigid Flex PCB Cost:

The benefits don’t come cheap. More layers, custom tooling, and tight tolerances mean rigid flex PCB fabrication costs more upfront.

2) Longer Lead Times:

Because of the complexity, especially with quick turn rigid flex PCB jobs, production can take longer than standard PCBs.

3) Complex Design Rules:

You need to account for bending zones, strain relief, and mechanical movement. Mistakes in your pcb flex rigid layout can cost you more than just time, they can kill your product’s performance.

6. Rigid-Flex PCB Cost: What Drives the Price?

There’s no getting around it, rigid flex PCB cost is higher than traditional PCBs. But once you understand what you’re paying for, the price starts to make sense.

Here’s a breakdown of the key pricing factors:

Pro Tip: Simplify early. If you’re building a prototype, reduce complexity up front and involve your rigid flex PCB supplier during layout. It’ll save money and time down the line.

7. How to Choose the Right Rigid Flex PCB Supplier

Not all PCB shops can handle rigid flex. And choosing the wrong one? That’s an expensive mistake waiting to happen.

Here’s what to look for in a trustworthy rigid flex PCB manufacturer or supplier:

1) Specialized Experience

Ask how many rigid flex circuit boards they’ve built, and for which industries. If they’ve only done simple 2-layer jobs, they may not be ready for your multilayer flexible rigid PCB.

2) Certifications Matter

Your supplier should have IPC, ISO 9001, and possibly medical or aerospace certifications depending on your end use. Quality control isn’t optional when you’re working with pcb flex rigid builds.

3) Prototyping Support

Rapid prototyping isn’t just about speed. You need feedback on your design, help with the rigid flex PCB fabrication stack-up, and guidance on material selection. The best suppliers do more than quote, they collaborate.

4) Real Engineering Input

A proper flex rigid PCB manufacturer will run DFM (Design for Manufacturability) checks and flag risks. If your stack-up isn’t balanced or your bend radius is too tight, you want to know before production starts.

5) Logistics & Testing

Good suppliers offer more than production, they’ll test continuity, impedance, and flex cycles. Some even offer quick turn services if you’re under deadline pressure.

Need a recommendation? Only work with a rigid flex PCB supplier that shows you actual builds, not just brochures.

8. Design Tips for First-Time Engineers

If you’re new to designing rigid flex circuit boards, here are some field-tested tips to help you avoid painful (and costly) mistakes.

1) Respect the Bend Radius

Too tight, and your pcb flex rigid area will crack. A general rule? Keep your bend radius at least 10x the thickness of the flex layer. More is better.

2) Avoid 90-Degree Trace Angles

On flexible rigid PCBs, sharp corners concentrate stress. Use curves or 45° angles to reduce the risk of delamination or cracking during bending.

3) Add Strain Relief

Use tear-drop vias, fillets, and stiffeners around mechanical stress points. These small design choices can massively improve board lifespan, especially in rigid flex rigid PCBs that fold repeatedly.

4) Control Impedance Across Transitions

Signals don’t care that your trace crosses from rigid to flex. But your performance will suffer if impedance isn’t matched across zones. Work closely with your rigid flex PCB manufacturer to model signal paths.

5) Final Check Before Handoff

Before you submit files to a rigid flex PCB supplier, verify:

• Your stack-up is symmetrical
• Your material choices are realistic
• You’ve labeled flex vs. rigid zones clearly
• You haven’t placed vias or pads in bend areas

9. The Future of Rigid-Flex PCB Technology

The demand for rigid flex PCBs is growing fast, and not just in traditional industries like aerospace or defense. As electronics become smaller, smarter, and more wearable, the future of rigid flex circuit boards is getting even more flexible.

Here’s where things are heading:

• Smart Fabrics & Wearables

Flexible rigid PCBs are being integrated into biometric shirts, AR headsets, and health-monitoring patches.

Their ability to bend, twist, and stretch without failure makes them ideal for wearable and body-mounted tech.

• Foldable Consumer Electronics

Foldable phones, tablets, and rollable screens rely on pcb flex rigid designs to withstand continuous motion.

Expect more brands to switch to rigid flex rigid PCBs for sleek, bendable, and robust internal layouts.

• Biocompatible & Implantable Devices

In the medical space, rigid and flex PCBs are making implants smarter and diagnostics more compact.

Rigid flex printed circuit boards are already appearing in pacemakers, surgical tools, and neuro devices.

• AI-Optimized Layouts

Artificial intelligence is assisting with layout, routing, and impedance modeling for complex rigid flex PCB fabrication.

Soon, AI could generate entire stack-ups and material selections, optimizing both cost and performance.

10. Rigid-Flex PCB FAQs

11. Summary

Let’s recap what makes a rigid flex PCB the go-to solution for today’s most advanced electronic products.

Unlike standard boards, rigid flex circuit boards combine stability and movement into a single design. They eliminate unnecessary connectors, reduce failure points, and open up space for tighter, lighter builds.

You’ll find rigid flex boards in wearables, drones, medical gear, satellites, and more,  anywhere performance matters and space is limited.

They do cost more, and they take more time to design. But the benefits? Fewer issues in the field, better signal integrity, and devices that actually work in the real world.

When built right,  by the right rigid flex PCB supplier, these boards outperform just about anything else.

If you’re designing your next project and need a compact, high-reliability board, it might be time to switch from rigid… to rigid flex.

As electronic products are continuously optimized and upgraded, printed circuit boards that carry all the components of electronic products are also constantly improving. With the continuous advancement of 5G construction, industrial fields such as precision microelectronics and aviation and shipbuilding have been further developed, and these fields all cover the application of ceramic substrates. Ceramic PCBs, in particular, have gained popularity due to their higher performance.

Ceramic circuit boards have improved performance and functionality significantly when compared to typical fiberglass or FR-4 boards, as well as other metal composite boards consisting of copper and aluminum. However, like anything else, printed circuit boards with ceramic substrates have advantages and downsides, and the benefits greatly outweigh the drawbacks.

1. Advantages of Ceramic Printed Circuit Board

High Stability

Manufacturers make regular printed circuit boards by bonding copper foil over a substrate material. The substrate material can be of various materials like phenolic resin or FR-3, glass fiber or FR-4, PTFE, Copper- base, Aluminum-base, composite ceramics, and others. The bonding material is usually epoxy or phenolic.

Several factors may cause the PCB to warp to a varying degree. These factors can be of chemical nature, from thermal stresses, improper production processes, and others related to PCB production. Asymmetric copper thickness and bonding on two sides of the substrate during fabrication of the copper clad may also lead to warping of the board.

For a ceramic PCB, manufacturers bond the copper circuit to the base material using magnetron or vacuum sputtering technology. This creates a very strong bonding force, preventing the copper foil from easily peeling off. Ceramic boards are therefore, highly stable and reliable.

Higher Current Carrying Capacity

Compared to regular printed circuit boards made from glass epoxy, ceramic boards have a substantially higher thermal conductivity. Therefore, ceramic boards can efficiently remove heat generated from copper tracks carrying high currents. For example, a ceramic board with a 1 x 0.3 mm copper track carrying 100 A current will see a temperature increase of approximately 17°C. Another ceramic board with a 2 x 0.3 mm copper track carrying the same 100 A current will only increase in temperature by roughly 5°C.

High Thermal Conductivity

Compared to alumina, which has a thermal conductivity of 12-38 W/m.K, and aluminum nitride, which has a thermal conductivity of 170-230 W/m.K, the thermal conductivity of the ceramic substrate can reach around 230 W/m.K, depending on the material composition and preparation methods used.

Thermal Expansion Coefficient

Depending on its high bonding strength, the thermal coefficient of expansion for ceramic substrates matches that of copper more closely.

Low Thermal Resistance

Ceramic substrates have great heat conductivity, hence they will have low thermal resistance. with example, with a ceramic substrate measuring 10 x 10 mm, a thickness of 0.63 mm has a thermal resistance of 0.31 K/W, 0.38 mm has a thermal resistance of 0.19 K/W, and 0.25 mm has a thermal resistance of 0.14 K/W.

Low Dielectric Loss

Ceramic substrates exhibit low dielectric loss when subjected to an electromagnetic field. Material with high electrical conductivity allow free electron flow when subjected to a charge. However, insulators show low electrical conductivity and low electron movement. Many industrial applications require an insulator such as ceramic substrates that can withstand high levels of voltage without much dielectric loss.

Low Dielectric Constant

Ceramic boards are extremely stable, even in the presence of high humidity and temperatures. This is due to ceramic substrates’ low dielectric constant, which allows the board to remain intact or undamaged even in extreme environmental conditions. This means that gadgets built using ceramic boards will be more reliable, of greater quality, and safer.

High Dielectric Strength

Ceramic substrates can withstand high electrical voltage before they break down. This is far higher than what standard printed circuit board materials can handle. In addition, ceramic substrates can sustain high voltages for a longer period of time than other materials. This makes ceramic substrates much superior insulating materials.

High Volume Resistivity

This is a measurement of how well a material resists the flow of an electrical current. Ceramic substrates offer significantly higher volume resistivity than standard PCB materials, even at high temperatures. This is an extremely significant feature because it translates to ESD or electrostatic discharge safety, which protects sensitive components installed on the board from ESD.

High Cosmic Ray Resistance

Ceramic PCBs can effectively resist cosmic ray radiation. This feature may not be important for equipment that works on or near the surface of the earth, but it is a very important thing for aerospace equipment. This is because in space, people are more susceptible to higher levels of cosmic ray radiation. Cosmic radiation can damage ordinary PCBs, while ceramic PCBs are a better choice.

2. Disadvantages of Ceramic Printed Circuit Board

High Cost

Although a ceramic board costs more than a normal board of the same size, its cost-to-performance ratio is significantly lower. For example, because the life of a ceramic PCB is significantly longer than that of a standard board, it will require many fewer replacements.

Highly Fragile

Ceramic boards are fragile, more fragile than ordinary printed circuit boards. Ceramic substrates are the basic materials for high-power electronic circuit structure technology and interconnection technology. They are densely structured and have a certain degree of brittleness. Traditional processing methods, there is stress during the drilling process, and it is easy to produce cracks for very thin ceramic sheets. Therefore, ceramic boards need to be handled better and more carefully. For example, when installing inside the equipment, the operator must be careful not to apply any undue pressure to the ceramic board that may cause it to distort. Therefore, most ceramic boards are small.

Low Availability

There are not many manufacturers who can supply the right type of ceramic plates. The lack of supply leads to a high cost of ceramic plates.

3. Ceramic Printed Circuit Board FAQs

4. Summary

Ceramic printed circuit boards are becoming more popular due to their advantages in applications such as solar panel components, high-power electronic modules, high-frequency switching power supplies, automotive electronics, solid state relays, high-power LED lighting products, aerospace and military electronics, and communication electronics. With the continued development of the microelectronics industry, electronic components are gradually moving towards miniaturization and thinness, and precision requirements are becoming increasingly stringent, putting ever-increasing demands on ceramic substrate processing.

Assypcb produces various types of high-quality printed circuit boards. If you have any customized PCB board requirements, please feel free to contact us. We will do our best to support you in the most cost-effective price!

Strong electrical conductivity, which guarantees effective signal transmission; excellent thermal conductivity, which rapidly dissipates heat; stable chemical properties, which prevent corrosion and guarantee dependable circuits; good processability, which satisfies the requirement for PCB miniaturization; and good cost performance and compatibility make copper the perfect material for electronic board manufacturing.

Which Materials are Frequently Found in PCB Boards?

FR-4, Metal, Ceramic and Polymer substrates are used to make circuit boards. All of these materials have unique properties which make them conducive to the production of printed circuit boards.

1. FR-4. The most widely used circuit card substrate in numerous industries, including automotive electronics, industrial controllers, home appliances, and office electronics, is FR-4 because of its excellent electrical, mechanical, thermal, and waterproof features.

2. Metal substrate. Metal substrates are metallic bases that hold an electronic board and can be made from materials such as cooper, iron, nickel, stainless steel, or aluminum. This ensures heat dissipation performance and anti-stress performance in high-power electronics, automotive electronics, LED lighting, and even more. Unfortunately, fabricating the metal substrates is costly.

3. Ceramic substrates. Silicon nitride or high-purity alumina is a substrate for very high-frequency, high-power, and precision electronic components, offering high strength, heat resistance, high mechanical resistance, and corrosion resistance.They are therefore extensively utilized in high-tech sectors like as the military, aerospace, and medicine.

4. Epoxy resin, polyimide, acrylic, polypeptide and other polymers can change shape. They are perfect for high-density, high-speed, high-precision printed circuit boards because of their exceptional mechanical qualities, dimensional stability, and thermal stability.

What is the Core Material?

Copper-clad laminate is the circuit card’s main component. In the production of circuit boards, CCL is essential. It immediately affects the board’s performance in addition to offering conductivity, insulation, and support.
Copper foil is hot pressed on one or both sides after e-glass fabric or other reinforcing materials have been soaked with resin to create copper-clad laminates. This substance serves as the circuit board’s core substrate in addition to being a conductor, insulator, and support.

In addition, other core materials for circuit board include copper foils, prepregs, dry films and inks. The quality and functionality of the finished product are determined by these ingredients taken together.

What is Copper ?

A composite material made of a non-conductive substrate and one or more layers of copper foil is called a copper-clad laminate. Depending on how the substrate’s electrical connections are made, copper foil may be applied to one or both sides.

Laminations coated in copper are essential to the production of circuit boards. It is the main component of printed boards and serves four main purposes: signal transmission, conductivity, insulation, and support.

Copper cladding board serves as the core plate in the creation of multilayer boards and not only connects electrical components but also guarantees the regular operation of electronic devices.

The main processes involved in making copper-clad boards include hot pressing, coating one or both sides with copper foil, and attaching resin glue to the reinforcing material. It is crucial to the production of circuit boards since direct materials make up over 60% of the final PCB cost. It is frequently found in electronic devices like computers and mobile communications and has a broad range of uses.

Why Use Copper ?

1. Conductivity: To meet the operating requirements of electronic equipment, copper, an excellent conductive material, guarantees a smooth flow of current on the circuit card.

2. Heat Dissipation: Copper’s strong thermal conductivity efficiently distributes heat over a wider region, minimizing hot spots locally and enhancing heat dissipation efficiency overall.

3. Mechanical Stability: By minimizing distortion brought on by material irregularities and preserving laminate consistency throughout circuit board fabrication, copper plating enhances the final product’s mechanical stability.

4. Signal Integrity: Copper plating improves the stability and dependability of signal transmission by offering a low impedance return channel that lowers interference and signal loss, particularly in high frequency digital signal transmission.

5. Electromagnetic Shielding: To satisfy EMC regulations, large sections of grounded or power-supply copper plating can serve as a natural electromagnetic barrier to reduce outside interference and stop noise from spreading throughout the circuit.

6. Cost Reduction: Copper is comparatively expensive, but because of its superior electrical and thermal conductivity, circuit designs may be made more succinctly, which lowers the quantity and complexity of components and, to some extent, the overall cost.

What is the Use of Copper Traces?

1. Conductivity: To guarantee the smooth transfer of current, copper traces—the most crucial conductive element on a circuit card—are utilized to join different circuit components, including integrated circuits, resistors, capacitors, etc.

2. Heat Dissipation: The thermal conductivity of copper is quite good. Local overheating can be avoided and the circuit card’s overall heat dissipation efficiency increased by placing copper traces close to the heat source.

3. Mechanical Support: During the circuit board manufacturing process, copper traces aid to preserve lamination regularity and minimize deformation, which enhances the circuit card’s structural stability.

4. Signal Transmission: Copper alignments in high-frequency circuits give high-frequency signals a full return path, which lowers signal interference and increases signal transmission stability and dependability.

What is One Ounce of Copper Equal to in Thickness?

Typically,”ounces” are used to signify the thickness of copper used to make electrical boards.On an average basis,a piece of one-ounce copper is 0.035 mm in thickness.

Why would Two Ounces of Copper Differ from One Ounce?

1. Difference in Thickness:

• 1 ounce of copper is roughly 0.0356 mm.

• 2 ounces of copper is roughly 0.0712 mm.

2. Variations in Weight:

• 1 ounce of copper weighs about 28.35 g

• 2 ounces of copper weigh roughly 56.7 g

3. Application Scenarios:

• 1 ounce of copper: usually used in general circuit board design, applicable to most electronic equipment.

• Two ounces of copper: for devices like servers and industrial control systems that need to carry more current or be more reliable.

4. Cost Differences:

• Increasing Thickness: Since additional material and intricate manufacturing procedures are needed, an increase in copper thickness usually translates into greater costs.

Circuit card panels are cut with V-shaped grooves by PCB Panel V-cut vs. Stamp Hole V-CUT, which makes it easier to remove the panels for further processing. In the meantime, stamp holes create a tiny hole at the panel’s edge to help the panels separate more neatly and steadily, which can improve signal transmission performance and use more space. Combining these two technologies guarantees product quality and dependability in addition to increasing production efficiency.

What is PCB V-CUT?

V-shaped grooves are cut out of printed circuit boards using the PCB V-CUT process, which is primarily used to make subsequent board separation operations easier. V-CUT involves cutting out a series of V-shaped notches in the printed board, and then breaking the board after applying the appropriate force, thus dividing the multilayer printed board into individual panels.

V-CUT’s Function and Significance

1. Boost Production Efficiency: When produced in large quantities, V-CUT can rapidly.

2. Reduce Material Waste: With V-CUT cutting, you can maximize the use of raw materials, reduce waste generation, and lower production costs.

3. Easy assembly: V-CUT makes separated small panels easy to assemble and solder, thus increasing production efficiency.

4. V-Cut is frequently used in multi-layer printed board volume manufacturing, particularly when a large board needs to be sliced into several smaller panels.

What Benefits and Drawbacks Does V-Cut Offer?

1. Benefits of V-Cut:

• Ease of Handling: After assembly, the V-Cut design makes it easier to separate SMT boards, preventing manual separation that could bend circuit cards and harm electronic components.

• Increased Productivity: When assembling two board edges, the efficiency of SMT placement lines and wave soldering can be significantly increased.

• Vast range of applications: V-Cut works well with standard circuit boards and can greatly increase productivity, particularly in mass production.

2. Drawbacks of the V-Cut:

• The inability to modify in the middle and the ability to only cut straight lines. It can only cut straight lines from one end to the other. It is not permitted to bend in the middle at a 90-degree angle or any other angle.

• High demands on the tools: The V-Cut tools’ material and manufacturing technique greatly affect the cutting outcomes. For instance, alloy inlaid V-Cut cutters increase the brittleness of the blade due to soldering, making it difficult to ensure the quality of the cutter and having a high breakage rate; high-speed tool steel V-Cut cutters, on the other hand, are not wear-resistant and require frequent replacement and sharpening of the tip, which affects productivity.

• PCB Thickness Limitations: V-Cut cannot be used with printed boards that are too thick or thin since the former are difficult to cut and the latter are brittle.

What is a Stamp Hole?

The little circuit cards that make up the array are connected together by a stamp hole in the motherboard panel, which also makes it simple to remove components from the PCB. Components can be removed without causing damage to the board since the perforated stamp hole splits when pressed down.

1. The Stamp Holes Serve the Following Specific Purposes:

• Attaching tiny PCB boards: Connections can be made through the stamp holes when several small circuit cards need to be connected and connectors are not available. Current can pass through the PCB and link to nearby boards thanks to the perforations.

• Power and Data Transmission: To facilitate communication between devices, stamped holes can transfer power and data between two distinct printed boards or devices.

2. The Following are Design Specifications for Stamp Holes:

• Number of Holes: Depending on the PCB design, the precise number of stamp holes required to join components may vary, however they are often utilized in groups of five.

• PCB Multilayer: V-cut vs. stamp hole PCB Panel Dimensions: Stamp holes typically have a diameter of 0.020 inches or 0.5 mm, depending on the PCB design.

• Hole Spacing: To avoid components being too near to one another and creating short circuits, stamp holes are normally placed 0.030 inches or 0.76 mm apart.

3. Here are Some Design Pointers for Stamp Holes:

• Sufficient Tie Tabs: The tie tabs must be robust enough to sustain the weight of the aforementioned components in order to preserve the integrity of the PCB.

• Avoid sensitive components: To prevent electrical shorts brought on by damaged tabs, stamp holes should be avoided near sensitive components.

• Spacing: To make it easier to install the components, there should be a 60–90 mm gap between two stamp holes.

What Benefits and Drawbacks Come with Stamp Holes?

1. Stamp Holes Have the following Benefits:

• Increased productivity: Stamp holes allow multiple small printed board to be connected together for production processing, thereby streamlining the production process and reducing costs.

• Ease of assembly and disassembly: Where a removable connection is required, such as in modular designs, stamped hole connections allow for easy assembly and disassembly for product maintenance and upgrades.

• Reduced Space Footprint: The stamp hole design significantly reduces the amount of space required, making it ideal for compact designs.

• Enhanced Signal Transmission Performance: Stamped holes make sophisticated multilayer board designs possible by shortening the signal path and lowering cross-talk and delays.

2. Stamp Holes Have the Following Drawbacks:

• Possible Cost Increase: The design of a stamp hole adds a certain amount of cost because of the need to reserve holes on the circuit card, and the size of these holes is included in the overall size of the circuit card.

• Breakout surfaces are difficult to manage: Breakout surfaces are difficult to precisely regulate, which can result in circuit damage or even junk. Stamp holes are separated by breakouts.

What Distinguishes a Stamp Hole from a V-Cut?

The main difference between a V-Cut and a stamp hole is their definition, use and application.

1. V-Cut: V-Cut is a pre-cut V-shaped demarcation line at a specific location on the circuit board, usually used to facilitate the de-paneling of assembled SMT boards. the demarcation line of a V-Cut is usually a straight line without complex curves or arcs, and it is suitable for the panel connection of a regular electronic board.

2. Stamp Holes: To join the process edges to the circuit board, a series of circular holes in the shape of stamps are punched into the board. It is mainly applied to boards that have asymmetrical shapes, like circles. Since V-Cut cannot realize this connection, stamp holes are mostly used in shaped boards.

How Can I Pick the Best PCB Depaneling Technique?

A lot of aspects need to be taken into account while selecting the best PCB depaneling technique, such as the PCB’s shape, manufacturing scale, budget, and product quality requirements.

1. V-CUT:

• Advantages: low cost, easy to operate, fast speed, suitable for regular shape PCB in a straight line.

• Disadvantages: only straight line off the board, not applicable to complex or irregularly shaped printed boards.

• Applicable scenarios: electronic cards have a fairly uniform shape and are appropriate for small and medium-sized mass production.

2. Stamp Hole:

• Benefit: It can offer greater space utilization and is appropriate for irregularly shaped electronic cards, like round or curved boards.

• Shortcoming: The cost is a little greater than with V-CUT, and some burrs might be produced during the separation process.

• Relevant Situation: Fits well with production that needs a lot of area and electrical boards with intricate or asymmetrical geometries.

3. Board Separation by Milling Cutter Type:

• Benefits: Suitable for PCBs of different shapes, smooth cutting edge, minimal stress, and ability to be separated into boards of any shape.

• Disadvantages: High initial cost, relatively complex equipment and operation.

• Applicable scenarios: suitable for cutting complex shapes of electronic card with high precision requirements.

4. Laser Board Separation:

• Advantage: high precision, suitable for electronic card with complex shapes and high precision requirements.

• Disadvantages: high cost, slow speed.

• Applicable scenario: suitable for small batch production with high precision requirements.

When selecting the board separation method, the specific needs of the product, production costs, production efficiency, product quality requirements and other factors should be considered to ensure that the most appropriate board separation method is selected. To satisfy the needs of various clients, ASSYPCB can flexibly apply a range of depaneling processes, including V-CUT and stamp holes, thanks to its experience and state-of-the-art equipment. Please get in touch with us for the best solution, regardless of how simple or complicated your PCB design is.
