The safest engineering rule is simple: use the schematic printed on the motor, inside the terminal cover, or in the manufacturer’s documentation. Do not infer connections from wire color alone. The diagrams below explain functional relationships for design review and troubleshooting, not field instructions for an unidentified motor.

Safety note: Motor capacitors can retain a hazardous charge after power is removed, and many motor circuits operate directly from AC mains. Qualified personnel should isolate power, verify zero energy, discharge capacitors using an approved method, and follow applicable electrical rules before handling the circuit.

What a Motor Capacitor Does

A single-phase AC supply does not create a naturally rotating magnetic field at standstill. An auxiliary winding, placed at a different angle from the main winding, helps establish the phase displacement needed to start or operate the motor. A capacitor changes the current phase in that auxiliary branch.

The capacitor’s job depends on the motor topology:

• Start capacitor: provides a large phase shift and higher starting torque for a short period. A centrifugal switch, potential relay, current relay, electronic module, or controller removes it after acceleration.
• Run capacitor: remains connected during normal operation. It supports phase shift, efficiency, power factor, torque, and winding current balance.
• Start and run capacitors: a CSCR motor uses both. The run capacitor remains active while the start capacitor is switched in only during startup.

Start Capacitor vs. Run Capacitor

A start capacitor is commonly designed for intermittent duty. It may have a relatively high capacitance and is energized only long enough to bring the motor toward operating speed. Leaving it connected can cause overheating, swelling, venting, or winding damage.

A run capacitor is designed for continuous AC service. Metallized polypropylene film is common because it offers low loss and self-healing behavior. The marked voltage is an AC working rating, not a direct equivalent of a DC capacitor rating.

Never replace a run capacitor with a general-purpose electrolytic capacitor. Likewise, do not treat a start capacitor as a continuous-duty component. The motor manufacturer selects capacitance to match winding impedance and the desired torque-current relationship.

How to Read a Capacitor Start and Run Wiring Diagram

A capacitor start capacitor run wiring diagram usually contains four functional elements: the main winding, auxiliary winding, run capacitor, and start branch. The start branch may include a start capacitor plus a device that disconnects it after the motor accelerates.

Many diagrams identify motor terminals as C, R, and S:

• C or Common: common connection shared by the winding branches.
• R or Run: terminal associated with the main or run winding.
• S or Start: terminal associated with the auxiliary or start winding.

These labels are common, not universal. HVAC dual-run capacitors may use C, FAN, and HERM, where HERM refers to the compressor branch. That convention should not be applied automatically to a bench motor, pump, blower, or custom machine.

PSC Motor

A permanent split capacitor motor normally keeps one run capacitor in series with the auxiliary winding. It has no separate start capacitor. PSC motors are common where moderate starting torque and quiet operation are more important than very high starting torque.

CSIR Motor

A capacitor-start induction-run motor places a start capacitor in the auxiliary branch during startup. After the motor reaches a defined speed or electrical condition, the start device opens and removes the capacitor and, depending on the design, the auxiliary winding.

CSCR Motor

A capacitor-start capacitor-run motor uses a run capacitor continuously and temporarily adds a start capacitor for higher starting torque. The start capacitor is commonly switched in parallel with the run capacitor during acceleration, but the exact circuit must be confirmed from the specified motor schematic.

Motor Start Capacitor Wiring Diagram Checks

Before interpreting or releasing a motor start capacitor wiring diagram, verify the following information:

1. Motor nameplate: rated voltage, frequency, phase, full-load current, duty, and wiring designation.
2. Manufacturer schematic: terminal labels, reversible connections, protector location, and start-device type.
3. Capacitor data: capacitance in microfarads, tolerance, AC voltage rating, duty classification, frequency, temperature range, and safety approvals where required.
4. Switching method: centrifugal switch, potential relay, current relay, PTC device, electronic start module, relay, triac, or external contactor.
5. Protective devices: fuse, thermal protector, overload, surge protection, and enclosure grounding.

Wire colors may change between manufacturers, product revisions, harness suppliers, and repair history. A continuity or resistance measurement can support diagnosis, but it does not replace the approved connection diagram.

Selecting the Capacitor for a Motor-Control Assembly

Capacitance is only one line in the component specification. A production BOM should also control voltage rating, tolerance, operating temperature, lifetime or endurance class, mounting method, terminal style, enclosure, and applicable safety approvals.

Capacitance and Tolerance

An incorrect microfarad value changes auxiliary-winding current and phase angle. Too little capacitance may reduce starting torque or operating efficiency. Too much capacitance may increase current and winding temperature. Use the motor manufacturer’s specified value and tolerance rather than selecting a nearby catalog value without validation.

AC Voltage Rating

The capacitor voltage can differ from the line voltage because winding and capacitor voltages are vector quantities. Select the specified motor-run or motor-start AC rating with the required margin. Do not replace a motor capacitor based only on a higher-looking DC voltage printed on an unrelated component.

Duty and Temperature

Start duration, starts per hour, stalled-rotor conditions, ambient temperature, enclosure temperature, and airflow affect capacitor stress. A capacitor that works during a short bench test may still fail in a hot enclosure or a high-cycling application.

For guidance on interpreting small capacitor markings used elsewhere on a control board, see Capacitor Values 103: Design, Selection, and PCB Application Guide. Motor capacitors typically use explicit microfarad and AC voltage markings rather than the three-digit codes common on small ceramic components.

Connecting the Motor Circuit to a Control PCB

In many products, the high-energy capacitor and motor wiring sit outside the PCB while the board controls a relay, triac, solid-state relay, or contactor. The schematic and assembly documentation must show that boundary clearly.

The control PCB review should cover:

• Switch ratings: motor loads have starting current, inductive interruption stress, contact arcing, and repetitive cycling. A relay’s resistive rating is not sufficient evidence for motor-load suitability.
• Creepage and clearance: spacing must reflect working voltage, transient category, pollution degree, material group, altitude, and the applicable product safety standard.
• Suppression: evaluate RC snubbers, MOVs, TVS devices, flyback paths, and EMI filtering based on the switching element and measured transient behavior.
• Connectors: verify current, voltage, temperature, pitch, keying, retention, touch safety, wire gauge, and agency recognition where applicable.
• Isolation: maintain the required boundary between SELV/control circuits and hazardous-voltage nets. Slots or barriers may be appropriate, but they must be documented and manufacturable.
• Thermal design: review copper temperature rise, relay heating, terminal heating, nearby electrolytic life, and enclosure airflow.
• Test access: provide safe production test points and a defined procedure for checking control signals without probing exposed mains nodes.

If your team is still translating system documentation into a PCB schematic, Reading Wiring Diagrams for PCB Design explains how functional wiring information differs from a PCB-ready circuit definition.

PCB Layout and Assembly Details That Prevent Wiring Errors

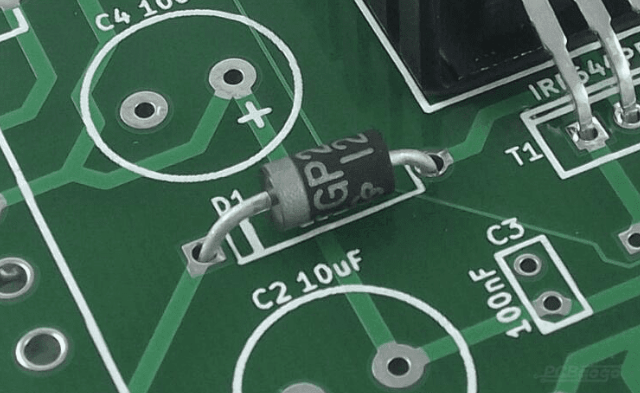

Good silkscreen and documentation reduce assembly and service errors. Mark connector reference designators, pin numbers, protective-earth points, motor terminals, and capacitor terminals consistently across the schematic, PCB, harness drawing, BOM, and test instruction.

Do not rely on a label such as “CAP” when two capacitor functions are possible. Use identifiers such as RUN CAP and START CAP where space permits, and include the approved schematic revision in the manufacturing package. Keyed connectors are preferable when a reversed connection could damage the motor or create a safety hazard.

Preparing a motor-control PCB build? Submit the schematic, Gerber files, BOM, pick-and-place data, motor and capacitor specifications, harness drawing, target quantity, and test requirements through the PCB assembly quotation page. The package can then be reviewed for component sourcing, assembly requirements, and manufacturing risks before quotation.

Common Wiring and Design Mistakes

Using a Start Capacitor as a Run Capacitor

An intermittent-duty start capacitor may overheat rapidly when left energized. Match the capacitor type to its electrical duty, not just its capacitance.

Assuming C, R, and S Always Mean the Same Physical Pins

Terminal letters describe functions only when the manufacturer uses that convention. Confirm the terminal diagram and connector pin numbering for the exact motor part number.

Ignoring the Start-Disconnect Device

A failed potential relay, centrifugal switch, PTC device, or control relay can leave the start capacitor connected or prevent it from connecting. Replacing the capacitor alone may not correct the root cause.

Rating PCB Relays by Steady-State Current Only

Motor starting and interruption impose higher stress than a resistive load with the same running current. Review the relay or contactor data for motor, inductive, or horsepower ratings and validate the actual switching waveform.

Leaving Harness Decisions Until Production

Late connector or harness changes can alter creepage, current density, keying, test access, and enclosure fit. Treat the harness pinout as a controlled design input rather than an assembly detail.

Troubleshooting a Motor Capacitor Circuit

Symptoms can narrow the investigation, but they do not identify a failed component by themselves.

A disciplined diagnosis records supply voltage, start time, running current, capacitor value, capacitor voltage rating, switch behavior, winding resistance, load condition, and temperature. Replace parts only after comparing measurements with manufacturer limits.

Frequently Asked Questions

Does it matter which way a motor run capacitor is connected?

Most AC motor-run film capacitors are nonpolarized, so their two electrical terminals do not have positive and negative polarity. Multi-section capacitors and capacitors with labeled common terminals must still be connected according to their terminal markings.

Can I use a capacitor with a higher voltage rating?

A higher AC voltage rating is often electrically acceptable if capacitance, tolerance, duty, frequency, temperature, safety approvals, size, and mounting remain suitable. Confirm the substitution against the motor and product requirements.

Can a single-phase motor run without a capacitor?

It depends on the motor design. Shaded-pole and split-phase motors may not use a run capacitor, while PSC and CSCR motors require the specified capacitor arrangement. Do not bypass a capacitor in a motor designed to use one.

Why does a start capacitor fail after the motor starts?

A common cause is failure of the device intended to disconnect the start capacitor. Excessive start time, rapid cycling, incorrect capacitance, inadequate voltage rating, high temperature, or a mechanical overload can also contribute.

Final Design Review

A reliable motor capacitor wiring diagram begins with the exact motor specification, not a generic wire-color chart. Identify the motor topology, confirm every terminal, specify the capacitor’s complete electrical and mechanical requirements, and document the start-disconnect method. For PCB-controlled systems, review switching stress, spacing, protection, connectors, thermal behavior, and production test access as part of the same design.

When requesting a manufacturing review, provide the Gerber files, BOM, pick-and-place data, schematics, motor and capacitor datasheets, harness drawings, quantities, and test criteria. Request a PCB assembly quote with those files so the assembly scope and open engineering questions can be evaluated before production.

The post Motor Capacitor Wiring Diagram: Start, Run, and Single-Phase Motor Connections first appeared on Assypcb.

For PCB designers and NPI teams, that decision connects component data, cable and source conditions, layout parasitics, assembly constraints, and the BOM. This guide provides a practical way to select and place a clamping diode without treating a catalog voltage value as a complete protection design.

How a clamping diode works

In normal operation, a shunt clamping diode is selected so that it does not conduct significantly at the maximum expected working voltage. When the node rises above the diode’s breakdown or forward-conduction region, current is diverted away from the protected circuit. The voltage at the protected node is then determined by the diode’s current-voltage characteristic, the source impedance, the wiring and trace inductance, and the return-path impedance.

That last point matters. A datasheet clamping-voltage figure is usually specified at a stated pulse current and with a defined test waveform. It is not a universal maximum for every installation. A longer cable, a different surge waveform, or a high-inductance ground path can produce a higher local voltage at the IC than the simple schematic suggests.

Start with the protected device and the transient

Write down the maximum voltage that the receiving IC, converter, connector, or transistor can tolerate at the protected node. Use the absolute maximum rating only as a survival limit, not automatically as a recommended operating condition. If the device vendor specifies a preferred clamp level or an IEC test condition, use that as the design requirement.

Next, define the threat. A 24 V industrial input, a USB data line, a relay coil, and a reverse-connected battery input do not present the same event. Record the normal voltage range, expected overshoot, source impedance, repetition rate, pulse duration, cable environment, and applicable test standard. If the transient waveform is not available, label that gap in the project risk log and obtain it before qualification.

Separate standoff voltage, breakdown voltage, and clamping voltage

These terms are related but not interchangeable. The reverse standoff voltage is the level at which a TVS diode is intended to remain off within its specified leakage range. Breakdown voltage is the region where the part begins to conduct a defined test current. Clamping voltage is measured at a higher stated pulse current. A part with a standoff voltage above the normal rail can still clamp too high for a sensitive IC when the surge current reaches its datasheet test level.

Use the maximum values in the relevant columns, not only typical values. Then include margin for supply tolerance, load dump or switching behavior where applicable, temperature, and layout overshoot. A diode that passes a bench test with a short probe ground lead may not protect the same node in the finished product.

Choose the diode topology for the failure mode

A shunt TVS diode is often appropriate for an external power or signal entry where the goal is to divert transient current to a reference plane. A series diode is more suitable when reverse current blocking or supply isolation is the objective. A diode to a local rail can protect a low-voltage signal only if that rail can absorb or redirect the injected current without rising beyond another component’s limit. The topology must include the destination of the surge current, not just the symbol placed near the connector.

For a broader review of diode functions and other components in the circuit, see the basic electronic component functions. If the circuit also includes rectification, the choice of a rectifier diode arrangement affects the normal and fault voltages that the protection network will see.

Check surge current, energy, and repetition

Peak pulse power ratings are useful only when their test waveform matches, or conservatively bounds, the intended event. Compare the data sheet’s pulse width, waveform, and duty conditions with the actual surge. Repeated pulses can heat the junction even when a single-pulse calculation appears acceptable. For a relay, solenoid, or inductive load, calculate the stored energy and determine where it is dissipated after turn-off.

Do not use package size as a proxy for surge capability. Confirm the manufacturer’s rating, derating curve, thermal conditions, and any board-area assumptions. Include the upstream protection elements, such as fuses, current-limiting resistors, PTCs, or series impedance, in the analysis. They may reduce current into the clamp, but only when their response at the relevant time scale is known.

When an input filter is part of the protection path, verify the input filtering considerations together with the clamp. A filter capacitor or inductor can alter peak current, ringing, and the voltage applied to the diode.

Do not ignore capacitance on data and high-speed signals

TVS and other clamp parts add capacitance. On slow DC inputs that may be unimportant. On RF, high-speed serial, precision analog, or high-impedance sensing lines, it can change bandwidth, attenuation, rise time, and signal integrity. Select a low-capacitance device when the interface requires it, and compare the capacitance at the actual reverse voltage and frequency where the datasheet provides that information.

Also examine leakage current. At elevated temperature, leakage can create offset error in high-impedance circuits or interfere with a weak pull-up. A component that is acceptable for an automotive supply line can be unsuitable for a low-level sensor input even if both use the same nominal clamping voltage.

PCB placement determines the real clamp performance

Place the shunt clamp close to the point where the transient enters the board. Route the incoming path to the clamp before routing it toward the protected IC. Use a short, wide connection from the clamp to the reference plane or return conductor. The transient loop includes the connector, diode, return path, and source. Reducing that loop inductance helps reduce the voltage added by fast current change.

Avoid routing the surge current through a sensitive analog return, narrow thermal-relief connection, or long trace shared with the protected device. Keep the protected trace on the IC side of the clamp. Where a connector has multiple pins, make the intended return path explicit in the stackup and layout review. The FR4 PCB stackup and return-path requirements should support the current path rather than leave it to an assumed plane connection.

Preparing a prototype or pilot build? Submit the Gerber files, BOM, connector and cable details, required quantity, and transient or test requirements through the PCB quotation form. An engineering and quotation review can identify component, assembly, and documentation questions before the design is released.

BOM and DFM checklist

1. State the protected-node maximum voltage and the normal operating range.
2. Record standoff voltage, maximum breakdown range, and clamping voltage at the relevant current.
3. Identify the transient waveform, peak current, duration, repetition, and test method.
4. Check junction temperature, power derating, and the effect of upstream series impedance.
5. Specify package, polarity or bidirectional configuration, land pattern, and approved manufacturer part number.
6. For signal lines, document capacitance and leakage limits.
7. Review placement, return current, board flex risk, and inspection access.
8. Qualify alternates against the complete limit set, not only nominal voltage.

For projects that need component sourcing and assembly as part of the same release, the turnkey PCB assembly service is the relevant commercial path. Provide the approved part number, alternates policy, assembly drawings, and test expectations with the BOM.

Common clamping-diode design mistakes

A frequent mistake is choosing a part from its headline power rating without comparing the test waveform to the actual event. A 600 W rating at a short standardized pulse does not establish suitability for a longer pulse, a repeated inductive event, or a surge with low source impedance. Another mistake is selecting a standoff voltage close to the nominal supply and overlooking production tolerance, cold-crank behavior, charger behavior, or switching overshoot. The result can be leakage or unintended conduction during normal operation.

Layout can create an equally serious failure. Placing the diode near the protected IC rather than the connector lets transient current travel along the board before it is diverted. A long ground route can add enough inductive voltage to defeat an otherwise suitable clamp. Treat the placement review as part of the electrical design. On a multilayer board, identify the entering conductor, the diode pads, the return plane or conductor, and the protected trace in one review view.

Finally, avoid approving substitutes using only the nominal reverse-voltage field. An alternate may have a different maximum clamp voltage, capacitance, leakage limit, dynamic resistance, package thermal path, or polarity. Those differences can affect both protection and normal circuit behavior. State the critical limits in the approved-alternate policy so purchasing and manufacturing do not infer interchangeability from a broad component description.

Plan verification before design release

Verification should represent the installed circuit, not only the diode in isolation. Define the test injection point, source impedance, pulse shape, supply state, operating temperature, and measurement bandwidth. Probe the voltage at the protected pin with a technique that does not introduce a long ground lead or obscure fast overshoot. Record both the peak protected-node voltage and the recovery behavior after the event.

For example, an external cable interface may need ESD, EFT, surge, or switching-transient tests appropriate to its intended environment. The relevant standard and performance criteria are project requirements; they cannot be inferred from the diode part number. Test the production-intent layout and connector configuration, including any external cable or power supply that changes the source impedance. Inspect the diode and adjacent PCB area after testing for damage, discoloration, solder cracking, or value drift.

Close the review by linking the schematic reference designator, BOM line, layout location, test report, and approved alternate list. That traceability makes it possible to re-evaluate the protection network when a connector, cable, IC, board stackup, or sourcing option changes.

Conclusion

A clamping diode works only when the component, transient, current path, and protected device are evaluated as one system. Choose the diode from maximum working voltage, clamp voltage at real current, energy and repetition limits, capacitance and leakage, then give it a short low-inductance PCB return path. Document those constraints in the BOM and layout notes so the protection design survives sourcing and manufacturing changes.

For an engineering review before release, send the Gerber files, BOM, operating voltage range, interface details, and test requirements through the engineering contact page. The review can clarify manufacturability, sourcing, and quotation inputs for the build.

The post Clamping Diode: Design, Selection, and PCB Application Guide first appeared on Assypcb.

This guide explains how to decode capacitor value 103 and how to turn that value into a defensible component selection for decoupling, timing, filtering, and signal-conditioning circuits.

What does capacitor code 103 mean?

The three-digit code is expressed in picofarads. The first two digits are the significant figures and the last digit is the number of zeros to add:

10 x 10³ pF = 10,000 pF = 10 nF = 0.01 uF

For example, a marking of 104 represents 100,000 pF, or 100 nF. A marking of 102 represents 1,000 pF, or 1 nF. The code identifies nominal capacitance, not voltage rating, dielectric material, tolerance, temperature characteristic, or package. Those fields must come from the full manufacturer part number and datasheet.

Where a 10 nF capacitor is used

A 10 nF capacitor is common because it fits several frequency ranges and circuit functions. The correct use depends on impedance, bias conditions, and the rest of the network.

• High-frequency bypassing: A 10 nF ceramic capacitor can supplement larger local decoupling capacitors near a fast IC power pin. Its usefulness depends heavily on loop inductance and package size.
• RC timing and reset networks: With a specified resistor, 10 nF can establish a delay or filter brief transitions. Tolerance, leakage, and input threshold characteristics define the actual timing window.
• Signal filtering: In an RC low-pass network, 10 nF may suppress high-frequency noise. Calculate the cutoff from the selected resistor and then check source impedance, load impedance, and signal rise time.
• EMI and transient control: A 10 nF capacitor may be part of a snubber, common-mode path, or input filter. Safety class, pulse energy, and failure mode matter when the capacitor connects to hazardous voltages or a line interface.

Do not assume that every 10 nF part is interchangeable. A C0G/NP0 10 nF capacitor, an X7R 10 nF capacitor, and a film capacitor with the same nominal value have different stability, loss, available voltage ratings, and mechanical behavior.

Choose the dielectric for the circuit requirement

For ceramic multilayer capacitors, the dielectric class is often the first selection decision after the nominal value. It controls value stability against temperature, voltage, and time.

C0G/NP0 for stable analog or timing functions

C0G/NP0 capacitors have very stable capacitance and low loss compared with high-permittivity ceramics. They are appropriate when the capacitance directly affects frequency, timing, gain, or filter accuracy. Their available capacitance and package options may be more limited, and they can cost more than X7R parts.

X7R for general-purpose decoupling and filtering

X7R is widely used for bypassing and general filtering because it offers useful capacitance in compact packages. Its actual capacitance changes with applied DC voltage, temperature, and aging. For a 10 nF part the loss may be modest in many applications, but the datasheet curve is still the governing evidence. Use the capacitance-versus-DC-bias graph for the exact case size and voltage rating.

Y5V and similar dielectrics need explicit limits

High-permittivity dielectrics can provide small, inexpensive parts, but their capacitance can vary substantially with temperature and bias. They are generally unsuitable when the circuit needs predictable capacitance. Do not substitute them into a timing, precision filter, or qualification-controlled design without an engineering review.

Set a voltage rating with margin, then verify DC-bias behavior

Capacitor voltage rating is not merely a compliance field. A higher voltage-rated MLCC of the same nominal capacitance may retain more capacitance under DC bias because its construction and dielectric thickness differ. The direction and magnitude must be confirmed from the manufacturer data for the exact part.

Start with the maximum steady-state voltage, then include expected rail tolerance, startup overshoot, switching spikes, and environmental conditions. For a 5 V rail, selecting a 6.3 V part may meet a basic rating requirement but leave little operating margin. A 16 V or 25 V option can be justified where bias stability, surge exposure, or reliability requirements call for it. That is a design decision, not a universal rule.

For circuits that see repetitive pulses, calculate the transient condition rather than relying on the DC rail value. Consider the capacitor’s permitted ripple current, dissipation factor, temperature rise, and the relevant safety or automotive requirements. Data unavailable in the component datasheet should be treated as a sourcing or engineering question, not assumed favorable.

Select the package with layout parasitics in mind

A 10 nF value can be supplied in packages ranging from very small chip sizes to larger MLCCs, film parts, and through-hole styles. Package choice affects assembly yield, working voltage, mechanical stress sensitivity, and high-frequency performance.

• ESL and placement: Small packages and short, wide connections can reduce inductance, which matters for high-frequency bypassing. Place the capacitor close to the power and ground connection it serves, with a compact current loop.
• Assembly and inspection: Use a land pattern consistent with the component manufacturer’s recommendation and your assembly process. Overly large pads, board flexure, or poor panel handling can crack MLCCs.
• Voltage and availability: A small package may not offer the required voltage rating or qualified source options. Evaluate approved alternates before locking the BOM.
• Mechanical environment: If vibration, depaneling, connector loading, or thermal cycling is significant, consider soft-termination MLCCs, placement away from board edges, or a more suitable capacitor technology.

For board material and stackup decisions that affect impedance and return paths, review the requirements for an FR4 PCB build alongside the component placement rules. A capacitor’s benefit can be lost when its return path is long or discontinuous.

Use a 103 capacitor correctly in common circuits

Decoupling a digital IC

A 10 nF capacitor is often used with one or more larger capacitors to cover a broader impedance range. The component value alone does not guarantee low rail impedance. Confirm the power-distribution network, capacitor placement, via arrangement, package inductance, and the IC vendor’s recommendations. Avoid placing the capacitor on the other side of a plane split or routing the power path through a long trace before it reaches the pin.

Creating an RC low-pass filter

For a first-order RC low-pass filter, the nominal cutoff frequency is:

f_c = 1 / (2 pi R C)

With 10 nF and 1 kOhm, the nominal cutoff is about 15.9 kHz. Real behavior also depends on resistor tolerance, capacitor tolerance, capacitor dielectric, source impedance, load impedance, and parasitic capacitance. State the permitted frequency range in the design documentation rather than quoting only the nominal result.

Using a capacitor in a reset or timing path

When a 10 nF capacitor sets reset delay or oscillator timing, C0G/NP0 may be more appropriate than a high-permittivity MLCC if tolerance across temperature and voltage is tight. Check the input leakage and threshold behavior of the device being controlled. A nominal RC calculation does not represent a guaranteed reset interval unless all relevant limits are included.

When you are preparing a prototype build, submit the Gerber files, BOM, pick-and-place data, required quantity, and test requirements through the PCB quotation form. An engineering and quotation review can identify package, assembly, sourcing, and documentation questions before production release.

BOM and DFM checklist for a 10 nF capacitor

Before releasing the design, use a component record that is specific enough for purchasing and assembly to identify the intended part. At minimum, review the following:

1. Nominal capacitance: 10 nF, 0.01 uF, or 10,000 pF.
2. Dielectric and temperature characteristic, such as C0G/NP0 or X7R.
3. Capacitance tolerance and its effect on the circuit limit.
4. Rated voltage, operating voltage, expected transient voltage, and the manufacturer’s DC-bias curve when applicable.
5. Package, termination option, land pattern, and approved manufacturer part number.
6. Assembly constraints, including MSL where relevant, reflow profile, board flex risk, and inspection requirements.
7. Lifecycle status, authorized sources, and qualified alternates with the same functional requirements.

The site’s capacitor component overview can help frame the technology choice, but the component datasheet remains the authority for a production part number. For builds that include component sourcing and assembly, the turnkey PCB assembly service is the relevant commercial path.

Conclusion

Capacitor code 103 means 10 nF, or 0.01 uF. The right 10 nF capacitor is selected by more than that marking: match the dielectric to the stability requirement, set voltage margin using real operating conditions, check bias and temperature behavior, and choose a package and placement that fit the electrical and manufacturing constraints. Document those choices in the BOM so a nominal-value substitution does not change the circuit in production.

For a build review, send the Gerber files, BOM, fabrication requirements, assembly quantity, and test expectations through the engineering contact page. The review can clarify manufacturability, component sourcing, and quotation inputs before the order is placed.

The post Capacitor Values 103: Design, Selection, and PCB Application Guide first appeared on Assypcb.

For engineers, technicians, and purchasers checking loose components, the color bands are only the first check. The intended value, tolerance, package, power rating, temperature coefficient, and approved manufacturer part number still need to match the BOM and design requirements.

What Does 4.7k Ohm Mean?

The `k` means kilo, or one thousand. Therefore:

4.7 kOhm = 4.7 x 1,000 ohms = 4,700 ohms

The value may also appear as `4K7` on a schematic, BOM, or component marking. In this notation, the letter replaces the decimal point and supplies the multiplier. `4K7` and `4.7 kOhm` both mean 4,700 ohms.

This distinction matters because `4.7 ohm` is not a shortened form of 4.7k ohm. A 4.7 ohm resistor is 1,000 times lower in resistance. In a pull-up network, bias circuit, current limiter, or feedback path, substituting one for the other can change circuit behavior substantially.

Four-Band 4.7k Ohm Color Code

For a four-band resistor, read the first two significant digits, then the multiplier and tolerance.

The calculation is `(47 x 100) = 4,700 ohms`, or 4.7 kOhm. With a gold tolerance band, the actual measured resistance may fall between 4,465 ohms and 4,935 ohms at the reference conditions specified for the part.

The gold band is commonly spaced farther from the other bands or sits near one end of the resistor. That visual separation helps establish the reading direction. Do not begin at the tolerance band. Gold and silver are normally tolerance or multiplier colors, not first significant-digit colors in a standard four-band reading.

The phrase `4.7 kilo ohm resistor color code` describes this same four-band pattern when the component is a conventional axial, color-banded resistor. Whether a search uses `4.7k ohm resistor color code` or `4.7 k ohm resistor color code`, the target value is 4,700 ohms, not 4.7 ohms.

Five-Band and Six-Band Versions

Precision resistors often use five bands because they need three significant digits instead of two. A 4.7k value can be shown as yellow, violet, black, brown, brown:

The calculation is `(470 x 10) = 4,700 ohms`. The extra digit does not change the nominal value. It provides a format for tighter tolerance parts and for values that require three significant figures.

A six-band resistor adds a temperature-coefficient band after the tolerance band. That band should be interpreted from the applicable color-code standard and the component datasheet. Its presence does not by itself prove suitability for a temperature-sensitive circuit. Check the actual resistance tolerance, temperature coefficient, voltage rating, power rating, and construction.

How to Avoid Reading Errors

The `4 7k resistor color code` query often reflects a visual inspection problem rather than a calculation problem. Use this sequence before accepting the value:

1. Identify the band that appears isolated. It is usually the tolerance band and should be read last.
2. Check whether the resistor has four, five, or six bands before assigning digits.
3. Read the significant digits first, then apply the multiplier.
4. Confirm the calculated value against the schematic reference, BOM, or approved-value list.
5. Measure the part with a calibrated meter only after isolating it from parallel circuit paths when necessary.

Lighting and aging can make red, brown, orange, and gold hard to distinguish. If the bands are ambiguous, use the manufacturer data sheet or the BOM manufacturer part number rather than guessing from color alone. For a production lot, verify the received label, lot traceability, and sampling method against the purchase and quality requirements.

4.7k Ohm Versus 4.7 Ohm

The `4.7 ohm resistor color code` is a different value and should be treated as a separate identification task. A typical four-band representation is yellow, violet, gold, gold:

The third band creates the difference. Red applies a x100 multiplier. Gold applies a x0.1 multiplier. A reader who sees yellow and violet but does not verify the third band can select the wrong component by three orders of magnitude.

This risk is especially relevant during manual rework, prototype bring-up, and incoming inspection of mixed loose components. In a controlled assembly process, the BOM reference designator, reel label, package, and placement data should control selection. Color-band inspection is a useful backup check, not a substitute for component traceability.

When Color Bands Are Not the Right Method

Color codes apply primarily to through-hole resistors. Most surface-mount resistors use printed markings, EIA codes, or no visible marking at all. High-precision, high-power, current-sense, and specialty resistors may have markings that do not follow the common axial color-band convention.

If a design transitions from a through-hole prototype to surface-mount production, do not carry the color-code inspection method into the SMT process without checking the new package and marking convention. The relevant production controls become the approved manufacturer part number, distributor traceability, BOM version, pick-and-place data, and incoming inspection criteria.

For a broader component-recognition reference, see the basic electronic components guide. The 15 basic components of a PCB overview can also help place resistor selection in the wider circuit context.

Selection Checks Beyond Resistance Value

A correct nominal resistance does not complete component selection. Before releasing a design or placing a purchase order, check:

• Tolerance: A 5% resistor may be acceptable for a simple pull-up but not for a precision divider or reference network.
• Power rating: Determine dissipation from the actual circuit voltage and current with an appropriate margin. Do not infer a rating from body color or physical size alone.
• Voltage rating: Confirm the part can withstand the circuit voltage and expected transient conditions.
• Temperature coefficient: Use the datasheet when temperature drift affects the circuit requirement.
• Package and assembly method: Axial, radial, and surface-mount parts need different footprints, assembly controls, and inspection methods.
• Approved source and traceability: Confirm the BOM part number and sourcing rules before substituting an equivalent value.

When a prototype or production build includes mixed resistor packages or approved alternates, send the BOM, quantity, and any no-substitution requirements with the manufacturing data. For an assembly review, provide the BOM, Gerber files, package constraints, required quantity, and test expectations through the custom PCB assembly service. The review can clarify component-sourcing assumptions, package compatibility, and assembly requirements before the order is released.

A Practical Inspection Example

Suppose a technician finds an axial resistor with yellow, violet, red, and gold bands. The first two bands form 47. Red is x100, so the nominal value is 4,700 ohms. Gold indicates +/-5% tolerance. If the design calls for `R12 = 4K7`, the part matches the nominal resistance, but the technician should still confirm the required tolerance and power rating before approving it.

If the third band were gold instead of red, the calculation would be 47 x 0.1, or 4.7 ohms. That part must not replace a 4.7k pull-up resistor merely because its first two bands match.

Conclusion

The 4.7k ohm color code is yellow, violet, red, gold for a standard four-band, 5% resistor. A five-band 1% example is yellow, violet, black, brown, brown. Read the multiplier and tolerance band carefully, distinguish `4K7` from 4.7 ohms, and use the BOM and data sheet to confirm requirements that color bands cannot show.

For a build that includes resistor sourcing or assembly, submit the BOM, Gerber files, quantity, approved alternates, and test requirements through the PCB quotation request. The review can confirm component-sourcing assumptions and identify data needed for an assembly quotation.

The post 4.7k Ohm Color Code: Value, Tolerance, and Identification first appeared on Assypcb.

This guide helps European OEM and engineering teams compare PCB suppliers before explaining the fabrication flow that supports the decision. It covers supplier location and communication, technical qualification, compliance records, landed cost, and the RFQ inputs needed for prototypes, low-to-medium-volume production, and assemblies that need clear technical records.

How to Evaluate PCB Suppliers Serving Europe

Whether a program uses a European PCB manufacturer or a PCB manufacturer serving Europe, compare the supplier against the same released data package and commercial assumptions. The location label alone does not establish technical fit, documentation quality, or delivery reliability.

Start with the requirements that cannot be corrected after fabrication: layer count, material family, finished copper, impedance, via structure, surface finish, test coverage, and delivery date. Then compare how each supplier handles engineering questions, approved changes, traceability, material declarations, freight, customs, and corrective action. This makes PCB fabrication in Europe a comparable sourcing decision rather than a quote-price exercise.

For teams evaluating PCB manufacturing in Europe across local and cross-border sources, the practical goal is to identify the supplier that can meet the defined specification with the required records and delivery controls. The later sections show which fabrication and cost details should support that comparison.

What PCB Production Includes

PCB production normally refers to bare-board fabrication. The work starts with an engineering data package and ends with electrically tested, inspected boards packed for shipment. If components are mounted, programmed, or tested after fabrication, that is PCB assembly rather than bare-board production.

For a production-ready order, the supplier needs enough information to translate the design into a manufacturable process. At minimum, this usually includes Gerber or ODB++ data, drill files, a fabrication drawing, the required quantity, and the revision level. A controlled stackup, impedance requirements, material constraints, finish, panelization requirements, and test expectations should also be identified when they apply.

The PCB manufacturing capabilities page is a useful starting point for comparing a design’s needs with a fabrication scope. It does not replace a design review. The practical question is whether the supplier can produce the specified board consistently and document any proposed change before release.

PCB Fabrication in Europe: Process and Decision Points

The exact routing changes with layer count, material system, copper weight, surface finish, and special features. The core sequence is still useful because each stage creates a different source of risk.

1. Data review and manufacturing release

The supplier reviews artwork, drill data, fabrication notes, and the requested build. This is where conflicting data should be identified. Common examples include a stackup note that does not match impedance targets, drill sizes that are unsuitable for a specified finish, missing controlled-impedance structures, or solder-mask clearance that does not match fine-pitch assembly needs.

Ask for a documented engineering query when a change is necessary. A supplier should not treat a material, finish, or tolerance change as an administrative detail. Those decisions can affect electrical performance, solderability, reliability, and the subsequent assembly process.

2. Inner-layer imaging, etching, and inspection

For multilayer boards, inner copper layers are imaged and etched before lamination. Registration, trace geometry, and copper balance matter here. A design with dense routing, fine features, or high-speed nets may need more attention to material selection, copper profile, and registration capability than a conventional control board.

Teams planning dense builds should also compare the design against a multilayer PCB production guide. The important production decision is not the nominal layer count alone. It is whether the proposed stackup, dielectric choices, vias, and fabrication tolerances support the design intent.

3. Lamination, drilling, and hole preparation

Inner layers and prepreg are laminated into a panel. Drilling then creates plated-through holes, vias, tooling holes, and mechanical features. Drill aspect ratio, annular ring, via type, and copper thickness affect yield and cost. Buried vias, blind vias, filled vias, backdrilling, and tight registration requirements add process steps and should be called out in the RFQ rather than discovered after quoting.

4. Plating and outer-layer patterning

Electroless and electrolytic copper processes create conductive barrel walls and build copper where required. The outer layers are then patterned and etched. At this point, the fabricator needs to manage plating distribution and final conductor geometry. For fine-pitch parts or high-current paths, the specified finished copper and conductor tolerances should be clear.

5. Solder mask, legend, and surface finish

Solder mask protects copper and defines assembly pads. The surface finish affects storage, assembly compatibility, contact performance, and cost. ENIG, lead-free HASL, OSP, immersion silver, and other finishes are not interchangeable defaults. The selection should reflect component pitch, wire bonding or contact needs where applicable, expected storage conditions, and the assembly process.

6. Profile, electrical test, inspection, and packing

Panels are routed, scored, or otherwise separated according to the drawing. Electrical test confirms the required net connectivity and isolation on the completed bare board. Inspection criteria, coupons, certificates, marking, packaging, and traceability requirements should be agreed before release. A board that passes a continuity test may still fail an OEM’s documentation or cosmetic requirements, so the acceptance basis should not be left implicit.

Supplier Criteria for European PCB Programs

“European PCB manufacturer” can describe a local fabricator, a regional sales organization, or a supplier serving Europe from another production location. A buyer searching for a PCB manufacturer in Europe should verify the actual production and support model rather than assume that a regional label indicates a local factory. Geography alone does not establish whether the supplier is suitable. Evaluate the following controls against the actual program.

Engineering communication and change control

The supplier should provide a clear process for handling engineering questions, revision changes, and manufacturing deviations. Confirm who approves a stackup adjustment, material substitution, panelization change, or surface-finish alternative. For a recurring product, ask how the released revision, customer approvals, and build history are retained.

Technical fit

Qualification should cover the features that actually drive the build: layer count, finished copper, minimum trace and space, drill sizes, via construction, impedance, material family, thermal requirements, and finish. A generic capability table is only a screen. Ask the supplier to identify constraints tied to your design files.

For a straightforward design, this 4-layer PCB design guide can help separate stackup and return-path decisions from a generic layer-count request. For more complex boards, submit the actual stackup and constraints for a fabrication review.

Quality evidence and traceability

Define the records required with the order. Depending on the program, they may include a certificate of conformance, material traceability, test records, first-article evidence, microsection requirements, controlled-impedance results, or nonconformance reporting. Do not assume a document is included because it is common in another supply chain.

The value of traceability is practical. It lets a team link a field concern or assembly issue to the relevant fabrication lot, material lot, test result, and approved revision. It also makes supplier corrective action more actionable than a general quality complaint.

Regulatory and material documentation

European programs may need supplier declarations and material information to support the OEM’s compliance process. The required documentation depends on the finished product and its market, so the buyer should define the document set with its compliance team. Relevant frameworks can include the EU RoHS Directive 2011/65/EU and the REACH Regulation (EC) No 1907/2006.

These references do not mean every PCB has the same declaration requirement. They establish why material declarations, controlled substance information, and revision-controlled evidence should be requested early. A fabricator should state what it can provide and the product or material scope of each document.

Logistics and response time

Compare quoted lead time with the order profile: prototype, bridge build, scheduled release, or production replenishment. The delivery promise should distinguish fabrication time, test, approval hold points, packing, freight, customs handling, and any consolidation step. For imported boards, the buyer should calculate delivery risk from the complete path rather than the factory’s stated production days.

How to Compare PCB Production Cost in Europe

Unit price is useful but incomplete. A comparable quotation identifies the specification and the commercial assumptions behind it. Use a cost model that separates the following inputs.

Use the same revision and requirements list for every supplier. Otherwise, a low quote may be based on omitted test requirements, a different finish, a relaxed tolerance, or an assumed panelization. The cheapest quote is only comparable when the underlying build is comparable.

For an early cost estimate, distinguish one-time engineering charges from recurring unit cost. Then check where volume changes the economics. Tooling, setup, test fixtures, panel yield, and freight may dominate a small prototype order. Material utilization and process yield may become more important as volume grows.

If the project also requires mounted components, custom PCB assembly should be evaluated as a separate scope. Fabrication and assembly may be purchased together, but the quote should still state the handoff data, component-sourcing assumptions, inspection plan, test responsibility, and treatment of approved substitutions.

RFQ Checklist for PCB Fabrication

An RFQ is easier to compare when it contains a stable technical package. Before requesting pricing, assemble the following items:

• Gerber or ODB++ data and NC drill files.
• A fabrication drawing with dimensions, layer count, finish, mask color if relevant, legend, and mechanical requirements.
• Revision identifier and a list of any superseded files.
• Stackup and impedance table for controlled-impedance designs.
• Required laminate characteristics, copper weights, and approved material constraints.
• Quantity, target delivery date, delivery location, and any scheduled-release requirement.
• Test requirements, inspection criteria, certificates, traceability, and packaging instructions.
• A list of features that need explicit confirmation, such as filled vias, edge plating, castellations, carbon contacts, or backdrilling.

Before releasing a prototype or production build, submit the Gerber package, fabrication drawing, target quantity, delivery location, and testing requirements through the PCB quote form. An engineering and quotation review can then identify missing build details, clarify manufacturability questions, and return a quote based on the defined scope rather than an assumed configuration.

Questions to Ask Before Selecting a Supplier

1. Which requirements in the data package create a fabrication risk, cost premium, or lead-time constraint?
2. What stackup and material will be used, and how are changes approved?
3. What electrical test coverage and records are included?
4. Which quality and material documents can be supplied for this specific order?
5. What is the escalation path for a nonconformance or a revision change?
6. Which delivery assumptions are included in the quoted date and price?
7. Which specifications are excluded or assumed in the quotation?

These questions are especially important when comparing local and offshore sources. A local source may simplify communication or delivery control for some programs. An offshore source may be commercially suitable when the specification, documentation, logistics, and escalation process are controlled. The decision should be based on the total program risk and landed cost, not a location label.

A Practical Selection Method

Start with technical eligibility. Remove suppliers that cannot support the required features, documentation, or delivery model. Next, compare quotes against the same released package and identify every difference in materials, tests, tolerances, commercial terms, and included documents. Then assess response quality: a supplier that identifies a real manufacturing issue before release is often providing useful engineering evidence, not merely delaying the order.

For a new or changed design, a prototype build can also serve as a qualification step. Define what will be checked after receipt, including fit, assembly behavior, electrical performance, documentation completeness, and response to any discrepancy. Carry the resulting changes into the production release rather than relying on email history.

Conclusion

PCB production for European programs should be evaluated as a controlled manufacturing and supply process. The fabrication sequence matters, but the strongest supplier decision also considers engineering communication, technical fit, traceability, compliance evidence, delivery assumptions, and total landed cost. A complete RFQ package gives suppliers the information needed to identify risks early and lets the buyer compare like for like.

When the design is ready for review, send the fabrication data, drawing, stackup, quantity, delivery location, and required test or documentation records through the PCB quotation request. The review can confirm manufacturing questions and pricing assumptions before the build is released.

The post PCB Production Europe: Process, Supplier Criteria, and Cost Factors first appeared on Assypcb.

The essential design decision is where the run command is stored and how it is cleared. A relay holding circuit, PLC program, and microcontroller-based PCB can produce similar operator behavior, but they do not have identical fault responses. Define normal stopping, power-loss behavior, overload response, and safety functions before selecting components or laying out a control board.

This guide explains control logic, not a site-specific installation. Mains wiring and machinery commissioning require qualified personnel, applicable electrical requirements, and the equipment manufacturer’s instructions. An ordinary start-stop circuit is not a complete emergency-stop system.

How to Read a Basic Three-Wire Start-Stop Circuit

The basic control path contains a normally closed STOP contact, a normally open START contact, and a relay or contactor coil. A normally open auxiliary contact belonging to that relay or contactor connects in parallel with START. Where an overload relay is fitted, its normally closed trip contact commonly sits in series with the coil command.

Read the schematic in its stated normal condition: pushbuttons released, coils de-energized, and protective devices untripped. Normally open and normally closed describe contact states in that condition, not whether the motor is normally running.

Conceptual control schematic. Component terminal numbers and installation wiring are intentionally omitted.

The STOP contact must interrupt both the START path and the holding path. Putting STOP only in the START branch lets the auxiliary contact bypass it. Likewise, the holding contact must belong to the device whose energized state it is meant to maintain.

For a broader explanation of symbols and terminal relationships, see the guide to reading wiring diagrams. A schematic explains electrical relationships; a terminal wiring drawing explains physical connections. A PCB netlist and connector pinout must agree with both.

What Happens When START or STOP Is Pressed?

Initially, STOP and the untripped overload contact are closed, while START and the auxiliary contact are open. No complete coil path exists.

Pressing START completes the path and energizes K. Its normally open auxiliary contact closes. Releasing START then leaves a complete path through the auxiliary contact, often called a seal-in or holding contact.

Pressing STOP opens the common series path. K de-energizes, its auxiliary contact opens, and releasing STOP does not normally restart the circuit. The operator must issue another START command.

Operating sequence for a conventional momentary-button holding circuit.

Loss of control power also normally releases K and its holding contact. When power returns, the circuit remains off if START is released and all contacts function correctly. Do not interpret this as guaranteed restart prevention under every fault. A stuck START contact, welded auxiliary contact, retained software command, or different controller configuration can change the response.

Specify and test the simultaneous-button case. In the illustrated series STOP arrangement, an open STOP contact interrupts the coil path even when START is closed. In software, implement an explicit stop-dominant rule rather than relying on program scan order.

Two-Wire Versus Three-Wire Control

Two-wire control commonly uses a maintained contact, such as a selector switch or process switch, to command operation. If that contact remains closed after control power returns, the equipment may start again. This can suit some automatic processes, but it must match the intended operating and safety requirements.

Three-wire control commonly uses momentary START and STOP buttons plus a holding contact. Its normal loss-of-power response clears the relay-held run command. The terms describe control arrangements, not a universal count of every conductor in a machine.

A variable-frequency drive may offer either arrangement through configurable digital inputs. Follow its exact input configuration and wiring instructions. Do not assume a contactor-style circuit can be copied directly to a drive, or that opening an input removes hazardous energy.

Selecting Buttons, Relays, and Contactors

Match the Control Supply and Coil

Select the coil for the actual supply type and voltage range. AC and DC coils are not interchangeable simply because their nominal voltage numbers match. Check pickup and dropout specifications, duty rating, ambient conditions, and the supply’s ability to support coil energization.

For a DC relay driver, evaluate coil current at relevant supply and temperature limits, not only its nominal value. Select the transistor or MOSFET, its drive circuit, and protection network together. The basic electronic components guide provides background on the device types involved.

Check Contact Ratings for the Actual Load

A pushbutton in the control circuit switches coil or input current, not necessarily motor current. Its contact rating must suit the voltage, load type, and switching duty. DC inductive switching can demand a different rating from a resistive AC load.

A motor contactor must be selected for the motor application and required utilization duty. A small PCB relay with an apparently adequate resistive-current rating is not automatically suitable for motor starting. Check inrush, inductive load ratings, electrical life, and protection coordination with the relevant manufacturer.

Distinguish Protection Functions

Overload protection, short-circuit protection, and personnel safety perform different jobs. An overload trip contact can remove the run command, but it does not replace correctly coordinated branch protection. A STOP command does not replace an isolating device or lockout procedure.

For multiple operating stations in the conventional arrangement, normally closed STOP contacts are generally placed in series and normally open START contacts in parallel. Verify the complete drawing, conductor faults, station identification, and application requirements before commissioning.

Translating Start-Stop Logic Into a PCB

Separate the Command Circuit From the Power Circuit

Identify what the PCB actually controls: a low-voltage relay coil, a contactor interface, a drive input, or another power stage. Keep the high-current or high-voltage load path separate from sensitive inputs and logic as appropriate to the architecture.

Choose connector ratings, copper geometry, insulation spacing, and protective parts from the actual voltages, currents, environment, and applicable requirements. There is no universal trace width or clearance that makes every start-stop board suitable for industrial machinery.

Design Coil Suppression and Release Behavior Together

A DC coil stores magnetic energy. Interrupting its current without a suitable suppression path can overstress the driver. A flyback diode is one common option, but its relatively low clamp voltage can extend release time. A diode-plus-Zener or TVS arrangement can allow faster release when properly selected, at the cost of greater voltage stress.

Check the coil manufacturer’s guidance and any built-in suppression. Confirm clamp voltage, transient energy, driver voltage margin, and release timing. A simple diode across an AC coil is not an appropriate substitute for an AC-rated suppression network.

Condition Inputs and Define Reset States

Mechanical pushbuttons bounce, and long cables can couple noise into logic inputs. Use suitable input conditioning, protection, and debounce for the selected interface. Ensure GPIO voltage limits remain satisfied during transients and when one part of the system is unpowered.

In a microcontroller design, define power-on reset, brownout, watchdog recovery, communication loss, and firmware update behavior. The output should enter the specified non-running state until an authorized command is accepted. An ordinary MCU input and program are not automatically a safety-rated architecture.

The open-drain versus push-pull guide is relevant when choosing logic interfaces. Output topology alone does not establish compatibility with a 24 V field circuit; check the full electrical interface.

Functional architecture only. This illustration does not specify a safety-rated circuit or insulation dimensions.

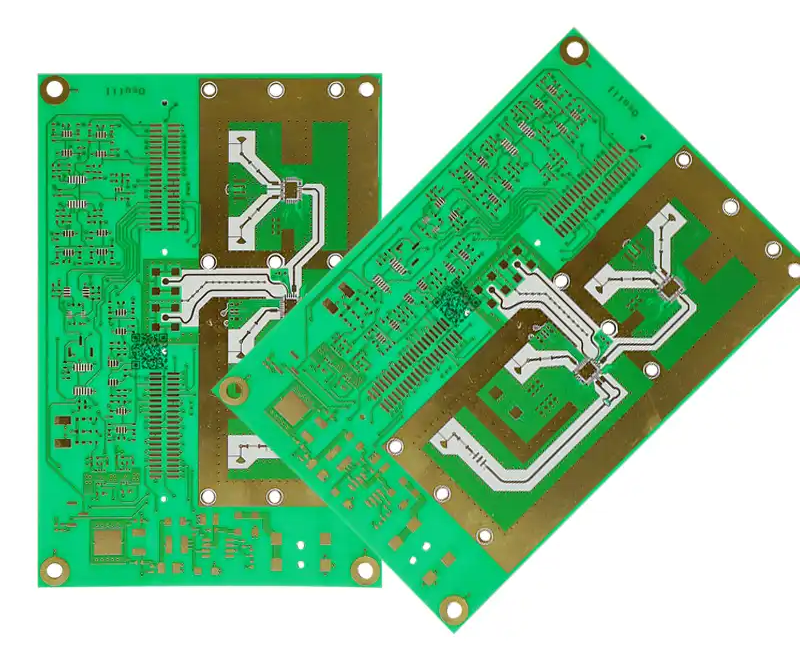

A prototype PCB assembly build can support evaluation of the physical connector arrangement, driver heating, and test access before a production release. Assembly inspection cannot replace application-level validation of restart and fault behavior.

Preparing a control-board prototype? Request an engineering and quotation review with your schematic, Gerber files, BOM, placement data, build quantity, control supply, and test requirements. State the required coil-release and restart behavior so those requirements can be discussed before the build is quoted.

Common Faults and How to Investigate Them

Troubleshoot with the equipment secured and hazardous energy isolated. Never bypass STOP, overload protection, or a safety circuit to keep equipment running. Any necessary energized measurements require qualified personnel and an appropriate procedure.

These are diagnostic possibilities, not proof of a particular fault. A de-energized coil also does not prove that the load is disconnected: power contacts may weld, and another energy source may exist. Determine whether feedback or monitored switching is required by the application.

Why an Ordinary STOP Is Not an Emergency Stop

A normally closed STOP contact provides a useful normal-control behavior: opening its circuit removes the command. That alone does not establish a safety function. Some faults can defeat the stop action, and a single ordinary relay does not automatically detect them.

Emergency stopping requires an application-specific risk assessment and a suitable architecture. Depending on the machine, that may involve monitored contacts, safety relays, safety controllers, drive safety functions, and defined reset behavior. The required stopping method also depends on whether immediate power removal creates another hazard.

Keep normal operational commands distinct from safety requirements in the schematic and test specification. Follow the applicable machinery standards and component instructions. For a manufacturer reference on conventional control arrangements, see Rockwell Automation’s Typical Wiring Diagrams.

What to Include in a Control-Board Build Package

Provide the schematic revision, fabrication files, BOM with manufacturer part numbers, placement data, connector pinout, and assembly notes. Identify coil polarity, suppression parts, optional components, and any configuration settings that affect restart behavior. The PCB assembly document checklist is a useful starting point.

Define functional tests separately from visual inspection: START and release, STOP, simultaneous commands, overload input, loss and restoration of power, and applicable reset or fault conditions. State supply ranges, expected outputs, timing limits, and acceptance criteria rather than asking only for a board that “works.”

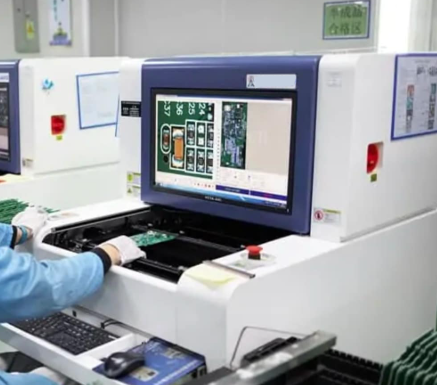

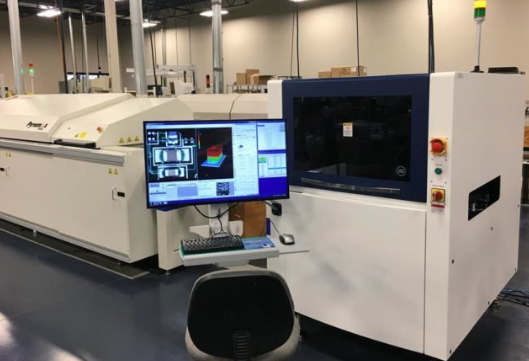

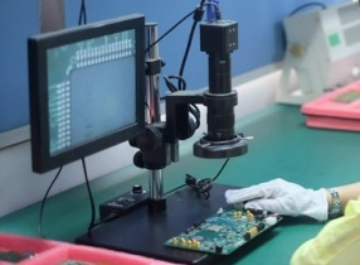

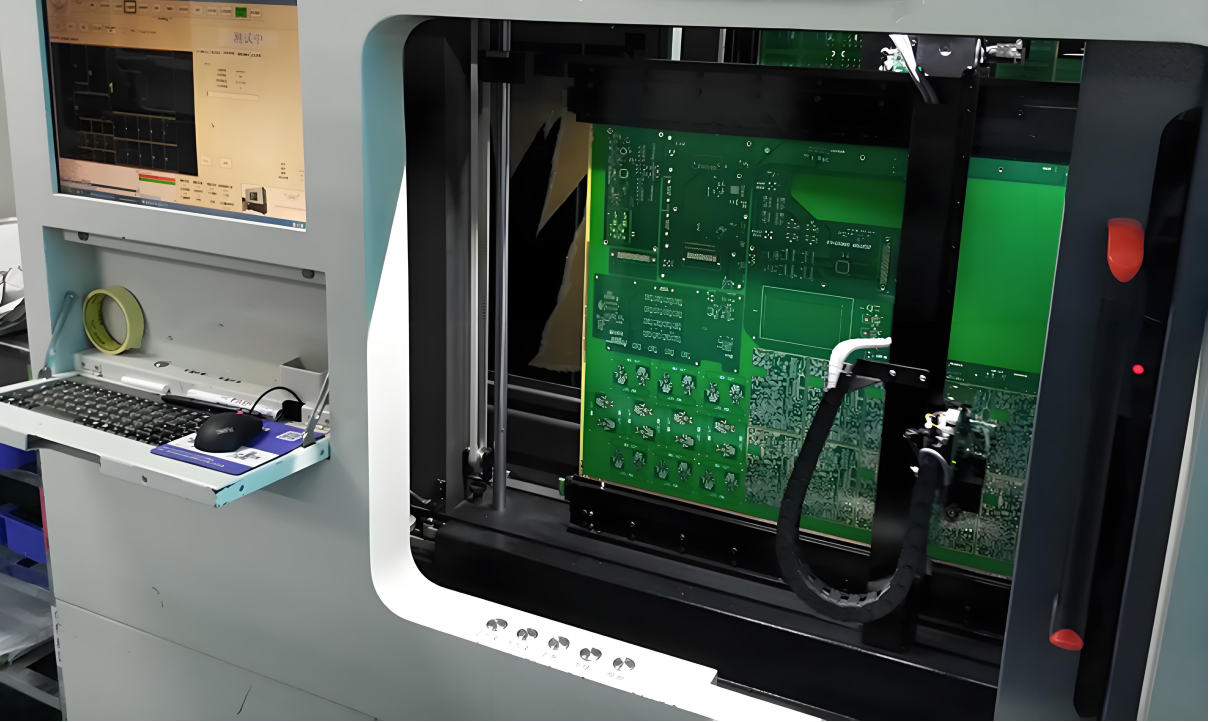

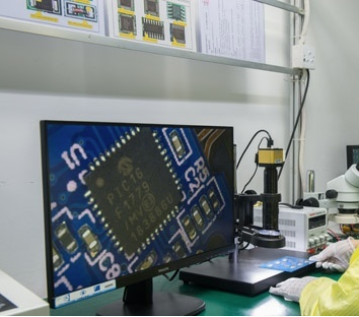

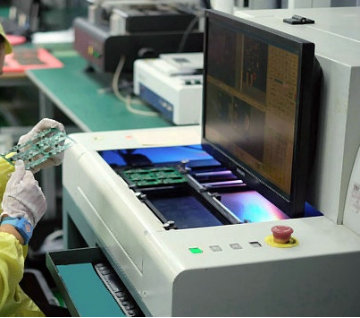

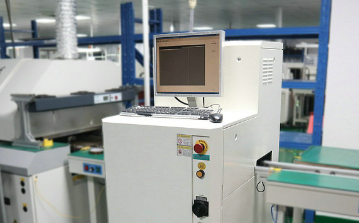

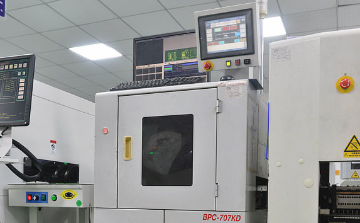

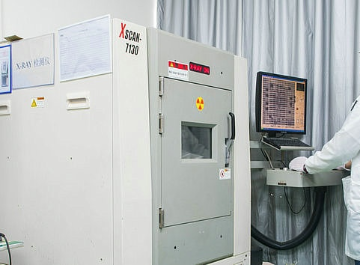

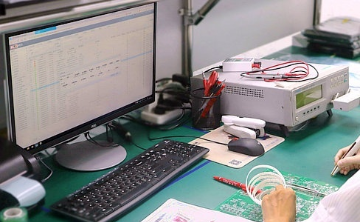

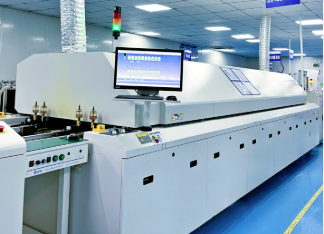

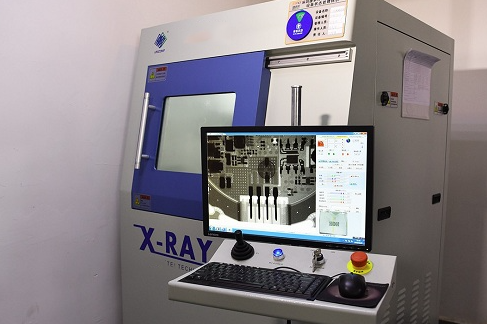

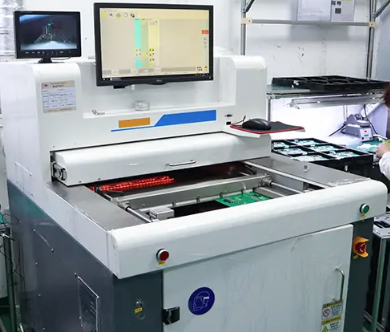

Local factory image showing inspection equipment. It is not a test record for a start-stop control board; circuit behavior requires its own functional test plan.

Conclusion

A useful start stop wiring schematic makes the holding path, common STOP interruption, and restart behavior explicit. Select components for their actual load and control duty, then validate the PCB interface, suppression, and reset states. Treat emergency stopping as a separate safety-design task.

Ready to plan a build? Request a quote with the controlled schematic revision, Gerbers, BOM, placement files, quantity, and functional test specification. Include the intended load interface and any safety-related boundaries so the project requirements and quotation scope can be confirmed.

The post Start Stop Wiring Schematic: Design, Selection, and PCB Application Guide first appeared on Assypcb.

The practical choice is not simply "slow versus fast." Open-drain is useful when several devices must share one line or when the high level must be set by a separate voltage domain. Push-pull is usually better when a single driver needs fast, efficient transitions. The correct design comes from the interface requirements and the component datasheets, not the label alone.

Open-Drain and Push-Pull Outputs at a Glance

These are architectural tendencies, not universal specifications. Some pins offer selectable modes, integrated pull-ups, slew-rate control, open-source behavior, or current-limited outputs. Always verify the actual pin type, voltage tolerance, drive strength, leakage, and timing in the device datasheet.

Simplified conceptual output stages. Actual IC implementations vary.

How an Open-Drain Output Works

The output transistor in an open-drain stage acts as a controlled path to ground. When it turns on, the pin sinks current and produces a low level. When it turns off, the pin becomes high impedance. The external pull-up resistor then charges the line capacitance toward its supply voltage.

This arrangement has two important consequences. First, a released line is not the same as an actively driven high. The high state depends on the pull-up network, leakage currents, connected devices, and capacitance. Second, multiple open-drain outputs can connect to one net because each device either pulls low or releases the line. If any device pulls low, the line stays low. That behavior supports shared interrupt nets and wired-AND logic in positive logic.

I2C is the familiar example. Its serial data and serial clock lines use open-drain or open-collector behavior so multiple devices can share the bus, acknowledge transfers, and support arbitration. The bus still needs a valid pull-up design. A line with no pull-up may float, while a resistor that is too large may produce a rise time that violates the timing requirement.

Open-drain is also useful for certain level-translation cases. The pull-up can connect to a rail different from the output device’s core supply, but only if every connected pin is tolerant of that voltage in every power state. A 5 V pull-up connected to a 3.3 V pin is not automatically safe. Check absolute maximum ratings, input clamp behavior, power-off tolerance, leakage, and back-powering conditions.

How a Push-Pull Output Works

A push-pull stage normally uses a high-side transistor and a low-side transistor. The high-side device sources current to drive the output high, while the low-side device sinks current to drive it low. The control circuitry prevents both devices from remaining fully on at the same time during normal operation.

Because both states are actively driven, push-pull outputs can charge and discharge load capacitance much faster than a comparable resistor-pulled open-drain line. They also avoid continuous pull-up current when the signal is low. Those properties make push-pull a common choice for point-to-point clocks, SPI signals, chip selects, enables, and general-purpose outputs.

The main restriction is driver sharing. Two push-pull outputs must not drive the same net unless the device documentation explicitly defines a safe coordination method. If one output drives high while another drives low, the path from the supply rail to ground may be limited mainly by the output transistors and interconnect resistance. The result can be excessive current, logic errors, heating, or damage.

Pull-Up Resistance, Capacitance, and Rise Time

An open-drain line rises approximately as an RC charging waveform. The pull-up resistance and total bus capacitance set the time constant:

tau = Rpull-up x Cbus

For a first-order RC network, the approximate 30% to 70% rise time is:

tr approximately 0.8473 x Rpull-up x Cbus

This equation is useful for an initial design estimate. The total capacitance includes IC pins, PCB traces, connectors, cables, probes, and other attached devices. The final resistor must satisfy two opposite limits:

• It must be low enough to charge the line within the required rise time.
• It must be high enough that every active device can sink the resulting low-state current while maintaining a valid output-low voltage.

For example, a 4.7 kOhm pull-up with 100 pF of total bus capacitance gives an estimated 30% to 70% rise time of about 398 ns. That may suit one interface mode and fail another. Lowering the resistor to 2.2 kOhm shortens the estimate to about 186 ns, but it also more than doubles the current that a device must sink when the line is low.

Conceptual edge comparison with the same capacitive load; the diagram is not a measured waveform.

Use the timing limits and calculation method defined by the applicable interface specification. Texas Instruments’ application note on I2C bus pull-up resistor calculation shows how rise-time and output-low constraints bound the resistor range. Datasheet values still control the behavior of the actual parts on the board.

Preparing an interface for fabrication or assembly review? Submit the schematic, Gerbers, BOM, required bus speed, cable or connector details, and any test limits through the assembly quotation page. The package can then be checked for component, layout, and test requirements before quotation.

Signal Integrity, EMI, and Power Tradeoffs

Faster is not always better. A push-pull output with high drive strength can create short rise and fall times that excite trace discontinuities, increase ringing, and raise radiated or conducted emissions. A series resistor placed near the driver may help control the edge and source impedance, but its value should be selected from the driver characteristics, interconnect geometry, receiver thresholds, and measured behavior.

Open-drain edges are asymmetric. The active pull-down can produce a relatively fast falling edge, while the resistor-capacitance network produces a slower rising edge. The slower edge may reduce some high-frequency energy, but excessive rise time reduces noise margin at the sampling instant and leaves the signal longer in the receiver’s transition region. A slow edge can also increase current in some CMOS inputs or create multiple transitions when noise crosses the threshold.

Static power is another tradeoff. An open-drain line dissipates power while low because current flows through the pull-up. The approximate resistor current is (Vpull-up - VOL) / Rpull-up. Push-pull outputs normally avoid that continuous pull-up loss, although they draw transient current while charging capacitance and may experience brief cross-conduction during switching.

PCB Design Implications

Confirm pin behavior before routing

The schematic symbol or firmware name does not prove the electrical output type. Confirm whether each pin is open-drain, push-pull, tri-state, configurable, or input-only. Record the power domain, absolute maximum voltage, input thresholds, output current limits, leakage, and power-off behavior. If you are translating circuit intent into layout, the guide to reading wiring diagrams for PCB-ready design provides a useful handoff framework.

Place pull-ups deliberately

A pull-up is a functional component, not an afterthought. Place it where it supports the required signal path and makes the voltage domain clear. On a short, low-speed board-level bus, the exact physical position may be forgiving. On a longer or faster interconnect, analyze the line topology, stubs, connector capacitance, and termination strategy rather than treating the net as a lumped node.

Avoid scattering undocumented pull-ups across modules. Parallel resistors reduce the effective resistance, increasing low-state current and changing rise time. Include the value and rail in the schematic and BOM so the assembled board matches the electrical calculation.

Control return paths and coupling

Route the signal over a continuous reference plane where practical. Keep return-path discontinuities, long stubs, and unnecessary loops under control. Separate sensitive analog nodes from fast digital edges, and review connectors or cables that add capacitance or expose the signal to external noise. General PCB layout design considerations still apply even when the digital protocol appears slow.

Plan test access

Add accessible test points when validation or production testing needs to observe the line. A probe adds capacitance, so specify an appropriate measurement method for a rise-time check. Test both stable voltage levels and transitions. For shared open-drain nets, verify that each participant can assert and release the line independently.

Five checks to complete before releasing an output interface to PCB production.

Common Design Errors

Missing or incorrect pull-up

An open-drain output without a pull-up has no defined high-state source. An internal pull-up may be too weak or too variable for the required timing. Conversely, a pull-up that is too strong may exceed the output’s sink-current or low-voltage specification.

Connecting incompatible voltage domains

The pull-up voltage must be safe for every connected device, including when one device is powered down. Check clamp-diode current and back-powering risks instead of relying only on nominal logic levels.

Tying push-pull outputs together

Shared-line behavior that works with open-drain outputs does not transfer to push-pull GPIO. If several devices need to signal one controller, use open-drain outputs, a logic gate, a multiplexer, or another defined interface architecture.

Ignoring default and startup states

Many pins start as inputs and change mode after reset. Pull-ups, pull-downs, boot straps, and peripheral configuration can create a temporary state that differs from normal operation. The article on computer jumpers and PCB configuration illustrates why hardware configuration states need explicit documentation.

Substituting parts without checking the output stage

Two devices with similar functions may use different output structures, drive strengths, voltage tolerances, or default modes. A BOM substitution can therefore change edge rate, current, or bus compatibility even when the package and basic pinout match.

A Practical Selection Framework

Choose open-drain when the design needs one or more of these behaviors:

• Multiple devices must safely assert the same line.
• The protocol requires wired logic, acknowledgment, or arbitration.
• A compatible external pull-up rail provides intentional level translation.
• A default released state must remain defined while devices reset or disconnect.

Choose push-pull when the design instead needs:

• A single, coordinated driver on the net.
• Fast and controlled transitions in both directions.
• Lower static loss than a resistor-pulled line that spends substantial time low.
• Direct point-to-point control without wired logic.

Some designs need both. A microcontroller may use open-drain pins for I2C and fault signals while using push-pull outputs for SPI clocks, chip selects, and control lines. The PCB assembly service overview can support the manufacturing handoff after those electrical decisions are documented in the schematic, BOM, layout, and test requirements.

Release Checklist

Before releasing the board, confirm the following:

• Every output pin’s electrical mode and startup state are documented.
• High- and low-level thresholds meet worst-case datasheet limits.
• The open-drain pull-up satisfies both rise-time and sink-current constraints.
• Total capacitance includes traces, connectors, cables, pins, and test fixtures.
• No push-pull outputs can contend during startup, normal operation, or faults.
• Pull-up rails remain safe during partial-power and power-off conditions.
• Fast push-pull edges have been reviewed for ringing, crosstalk, and EMI.
• Test points and acceptance limits are included where production verification requires them.

Conclusion

Open-drain outputs trade active high-side drive for safe line sharing and flexible pull-up behavior. Push-pull outputs actively control both states, providing faster edges and lower static loss for point-to-point signals. Neither architecture is inherently superior. The correct choice follows from bus ownership, voltage domains, timing, capacitance, current, startup behavior, and PCB interconnect conditions.

For a manufacturing review and quotation, send the latest Gerbers, BOM with manufacturer part numbers, pick-and-place data, assembly drawing, required quantity, and interface test requirements through the free quote page. The submitted package can then be reviewed for fabrication, assembly, component, and test requirements before pricing.

The post Open Drain Vs Push Pull: Key Differences and PCB Design Implications first appeared on Assypcb.

The terminology needs one important clarification. In the historical comparison “diode and triode,” both words normally refer to vacuum tubes: a two-electrode vacuum diode and a three-electrode vacuum triode. In modern electronics, however, “diode” usually means a semiconductor PN-junction device, while triodes survive mainly in audio, radio-frequency, high-voltage, restoration, and specialist equipment. A triode is also not simply another name for a three-terminal transistor.

What Is a Diode?

A diode is a two-terminal or two-electrode device designed for asymmetric conduction. In a modern semiconductor diode, the terminals are the anode and cathode. Forward bias lowers the junction barrier and permits substantial current; reverse bias normally allows only leakage until the device reaches its rated breakdown region.

A vacuum diode uses the same functional idea but a different physical mechanism. Its heated cathode emits electrons through thermionic emission. When the plate, historically called the anode, is positive relative to the cathode, it attracts those electrons and current flows through the external circuit. Reversing the polarity does not cause comparable conduction because the unheated plate is not an effective electron source.

This directional behavior makes diodes useful for rectification, reverse-polarity protection, signal detection, clamping, voltage reference functions, light emission, and many other tasks. The correct device depends on reverse-voltage rating, forward current, switching speed, forward drop, leakage, capacitance, temperature, surge conditions, and package constraints.

What Is a Triode?

A triode is a vacuum tube with three active electrodes: cathode, control grid, and plate. A heater raises the cathode to an operating temperature. Electrons emitted by the cathode travel toward the positively biased plate. The control grid sits between them and changes how many electrons reach the plate.

A grid that becomes more negative relative to the cathode repels more electrons and reduces plate current. Making the grid less negative allows more current. Because a small change in grid voltage can produce a larger change in plate current and in the voltage across the plate load, the triode can amplify a signal.

The heater is essential, but it is not counted among the three active electrodes named by “triode.” Some tubes use a directly heated cathode in which the filament itself emits electrons. Others use an indirectly heated cathode electrically separate from the heater. That distinction affects heater supply, isolation, hum, warm-up behavior, and circuit implementation.

Diode and Triode: Side-by-Side Comparison

The table compares vacuum devices so the terminology remains consistent. A semiconductor diode shares the two-terminal rectifying function but differs greatly in size, voltage drop, efficiency, thermal behavior, switching speed, and mounting method.

How a Triode Controls and Amplifies a Signal

The control grid gives the triode its defining capability. In a common-cathode voltage amplifier, a DC plate supply feeds the tube through a plate resistor or another load. The circuit establishes a grid-to-cathode bias that places the tube at a chosen operating point. A small AC signal changes the grid voltage around that point, which changes plate current. The changing plate current creates a larger voltage variation across the plate load.

Useful design quantities include amplification factor, transconductance, plate resistance, maximum plate voltage, maximum plate dissipation, heater voltage and current, interelectrode capacitance, and the recommended operating curves. These values are related, so a designer should use the manufacturer’s data sheet and characteristic curves rather than selecting a tube from a single headline rating.

Bias also determines linearity and headroom. An operating point too close to cutoff can clip one side of the waveform; one too close to excessive plate current can violate dissipation limits or shorten tube life. Cathode bias, fixed bias, and grid-leak bias each impose different component and safety requirements.

Preparing a tube-based prototype? Provide the schematic, BOM, tube and socket part numbers, board outline, operating voltages, mechanical constraints, and test expectations for a prototype PCB assembly review.

Common Uses of Diodes and Triodes

Diode Applications

Rectification is the most direct use. A diode can convert one polarity of an AC waveform into pulsating DC, while multiple diodes can use both halves of the waveform. The choice between half-wave and full-wave rectifier circuits affects ripple frequency, transformer utilization, diode stress, filtering, and available output power.

Other diode applications include reverse-polarity protection, flyback paths for inductive loads, transient suppression, signal steering, envelope detection, voltage multiplication, reference generation, photodetection, and light emission. These functions may use rectifier, Schottky, Zener, TVS, PIN, photodiode, or LED structures rather than one interchangeable “general diode.”

Triode Applications

Triodes are valued when their transfer characteristics, overload behavior, voltage handling, or historical authenticity are part of the product requirement. Common examples include preamplifier stages in musical-instrument and high-fidelity audio equipment, oscillators and drivers in radio circuits, laboratory instruments, restoration of legacy systems, and specialized high-voltage or RF equipment.

A power triode can control substantial current, but it also requires careful bias, cooling, insulation, and mechanical design. In many general-purpose products, transistors or integrated circuits provide equivalent functions with lower supply voltage, reduced heat, smaller size, and easier automated assembly. Selecting a triode therefore needs a circuit-level reason, not just a preference for the component category.

Is a Triode the Same as a Transistor?

No. A vacuum triode and a transistor can both amplify or switch, and the words “triode” and “three-terminal device” sometimes lead to confusion. Their construction and operating physics are different.

A vacuum triode controls electron flow through a vacuum with an electrostatic grid and normally needs a heater. A bipolar junction transistor controls collector current through base-emitter behavior in semiconductor material. A field-effect transistor controls channel current with an electric field at its gate. Their bias methods, input impedance, drive requirements, operating voltages, failure modes, and thermal limits cannot be treated as interchangeable.

Schematic symbols are also distinct. Tube diagrams identify plate, grid, cathode, and heater connections, while BJT and FET drawings use different terminal conventions. This guide to transistor schematic symbols helps distinguish NPN, PNP, MOSFET, and JFET devices from vacuum-tube symbols.

PCB Design Considerations for Diode and Triode Circuits

Tube circuitry can be mounted on a PCB, but the board must accommodate electrical, thermal, and mechanical conditions that are uncommon in low-voltage digital products.

Voltage, Creepage, and Clearance

Plate supplies may be high enough to cause dangerous shock and PCB surface arcing. Determine conductor spacing from the actual working voltage, pollution degree, material group, altitude, applicable product standard, and transient environment. Do not copy a clearance value from an unrelated low-voltage layout. Include discharge paths for stored energy and define a safe service procedure for capacitors that can retain charge after power is removed.

Heat and Component Placement

Tube envelopes and sockets can become hot. Keep electrolytic capacitors, connectors, plastics, and other temperature-sensitive basic electronic components outside the expected hot zone. Evaluate copper temperature, board material, ventilation, enclosure airflow, and spacing under worst-case ambient and operating conditions. The socket footprint must match the exact part, including pin diameter, retention features, orientation key, and keepout.

Heater Routing and Grounding

Heater current can introduce hum and magnetic coupling into high-impedance signal nodes. Route heater conductors as a controlled pair, keep them away from sensitive inputs, and choose AC or DC heater operation based on noise requirements. Establish deliberate signal, power, and chassis return paths. A careless ground layout can defeat an otherwise correct schematic.

Mechanical Support and Assembly

Tube insertion and removal place force on the socket and PCB. Heavy or frequently serviced tubes may need chassis-mounted sockets, brackets, or board stiffening. Verify that solder joints are not the only structural restraint and that the enclosure allows safe replacement without stressing adjacent parts.

Sockets, large capacitors, transformers, and many legacy parts use through-hole leads. A through-hole PCB assembly plan should define insertion, lead trimming, soldering, cleaning, inspection, mechanical support, and any components installed after wash or conformal coating.

How to Choose Between Them

The choice is usually functional rather than competitive: use a diode when the circuit needs rectification, clamping, protection, detection, light emission, or another two-terminal nonlinear function. Use a triode when the design specifically requires vacuum-tube amplification, oscillation, or controlled current behavior.

Before choosing a device, answer these questions:

1. Is the requirement one-way conduction or active signal control?
2. Does the product genuinely require tube behavior, voltage handling, sound character, RF performance, or historical compatibility?
3. What supply rails, heater power, warm-up time, and standby power are acceptable?
4. What voltage, current, frequency, noise, distortion, and thermal limits apply?
5. Can the enclosure provide ventilation, guarding, service access, and shock protection?
6. Are the tube, socket, transformer, and replacement parts available for the expected product life?
7. How will assembly inspection and functional testing verify bias, gain, ripple, noise, and safe discharge?

For most compact, battery-powered, or high-volume PCB products, semiconductor diodes and transistors are the practical choice. For specialist equipment where vacuum-tube behavior is intentional, the triode remains a valid component, but the surrounding power supply, mechanics, safety, and service strategy become part of the design decision.

Key Takeaway

A diode provides two-electrode, primarily one-way conduction; a triode adds a control grid so a small input can regulate and amplify a larger current. In the classic comparison, both devices are vacuum tubes. Modern semiconductor diodes and transistors perform related circuit functions through different physical structures and should not be described as identical replacements.

For manufacturing, the device choice affects much more than the schematic. Voltage spacing, heater routing, thermal management, socket mechanics, grounding, component availability, inspection, and functional testing all need to appear in the production package. For a PCB assembly quotation, provide Gerber files, BOM, pick-and-place data where applicable, assembly drawings, quantities, voltage and safety notes, and test requirements for a PCB assembly review.

The post Diode vs Triode: Characteristics, Uses, and PCB Design Differences first appeared on Assypcb.

Modern products use fewer jumpers, but the design principle remains useful. A jumper gives engineers a visible, low-cost, nonvolatile hardware option that does not depend on a user interface. The same simplicity can also create service mistakes if the pinout, default state, or power-off procedure is unclear.

What Is a Computer Jumper?

In computer hardware, the word jumper usually refers to a removable plastic cap with an internal metal contact. The cap fits over two adjacent header pins and electrically joins them. The complete feature therefore includes the header, the conductive shunt, the PCB nets connected to the pins, and the circuit that interprets the resulting state.

A two-pin jumper has two basic conditions:

• Closed: the shunt covers both pins, creating electrical continuity.
• Open: the shunt is removed or parked on one pin, so the two signal points are not connected.

A three-pin arrangement supports two selectable positions. Bridging pins 1-2 can represent one mode, while bridging pins 2-3 represents another. The electrical meaning is determined by the schematic, not by a universal convention. Always use the board documentation or silkscreen instead of assuming that one physical position means “enabled.”

How Does a Jumper Setting Work?

The jumper normally connects a logic input to ground, a supply rail, or another defined signal. A pull-up or pull-down resistor holds that input at a known level when the shunt is absent. At startup, a controller, chipset, or other circuit reads the level and selects the corresponding behavior.

For example, an input may read logic high when the pins are open and logic low when the shunt connects the input to ground. That is only an example. The opposite arrangement is equally possible, and some jumpers route analog signals or power rather than logic inputs. Designers must check voltage, current, contact resistance, and fault behavior before using a removable shunt in a non-logic path.

The distinction between an electrical schematic and a wiring view matters here. A schematic shows the function of the nets and components, while the assembly drawing shows where the physical header and pin 1 are located. Engineers who need to connect those views can use this guide to read wiring diagrams and translate circuit intent into PCB-ready documentation.

Common Uses of Jumpers in Computer Hardware

Clearing CMOS or Stored Firmware Settings

Many desktop motherboards include a header for clearing stored firmware configuration. Depending on the design, the required procedure may involve moving a shunt between pins, briefly bridging two pins, or using a dedicated button. Power and battery instructions vary by product. Moving the jumper while the board is energized can create an unintended short or leave data in an undefined state, so the motherboard manual controls the procedure.

Legacy Hard Drive and Optical Drive Configuration

Parallel ATA drives commonly used jumpers to select master, slave, or cable-select behavior. Some storage devices also used jumper positions to limit transfer modes or change compatibility settings. These examples explain why “jumpers on a motherboard” and “hard drive jumper settings” remain common search questions even though newer SATA and NVMe systems usually configure devices electronically.

Service, Test, and Manufacturing Modes

A jumper can expose a controlled hardware option for production testing, calibration, boot-mode selection, or field service. It may be more dependable than a software menu when firmware is not yet programmed or the unit cannot boot. However, any service jumper that can disable protection or enter a test state needs restricted access and explicit documentation.

Product Variants on a Shared PCB

One PCB design can support several product variants by changing a jumper position or fitted component option. This can reduce layout duplication, but it transfers configuration control to the BOM, assembly instructions, inspection plan, and traceability records. The design is only economical when the correct variant can be assembled and verified consistently.

For a prototype that uses configuration headers or variant options, send the Gerber files, BOM, pick-and-place data, assembly drawings, required quantities, and the default jumper position for a prototype PCB assembly review.

Jumper Cap vs Jumper Wire vs Zero-Ohm Resistor

These parts can all create an electrical connection, but they solve different manufacturing and service problems.

For a production design, the decision should consider who changes the setting, how often it changes, whether an enclosure blocks access, and how the assembly line verifies the final state. A removable cap is not automatically the least expensive option once manual placement, inspection, packaging, and field-support costs are included.

PCB Design Rules for Reliable Jumper Settings

Define a Stable Electrical State

Do not leave a configuration input floating when the shunt is absent. Use an appropriate pull-up or pull-down resistor and confirm that leakage, noise, startup timing, and input thresholds cannot create an indeterminate state. If the jumper switches power or an analog path, review current rating, transient conditions, creepage, and clearance instead of treating it as a simple digital input.

Make the Default Position Obvious

Label the reference designator, pin 1, and valid positions on the silkscreen when space permits. The assembly drawing should state the shipped position in words as well as by graphic notation. Avoid labels that become hidden under the shunt. A technician should be able to identify the correct position without reversing the enclosure orientation mentally.

Design for Access and Retention

Check access after cables, shields, daughterboards, heat sinks, and the enclosure are installed. Provide finger or tool clearance without placing the header where a dropped cap can contact energized conductors. In products exposed to vibration, contamination, or frequent handling, evaluate shunt retention and consider a locked connector, switch, or software-controlled alternative.

Control the Configuration in Manufacturing Data

The BOM should identify the header and shunt separately and state whether the cap is fitted, omitted, or parked. Assembly notes should map every sellable variant to a position. Inspection criteria should verify the installed state, not merely the presence of the header. The required manufacturing package is broader than Gerbers alone; this overview of documents required for PCB assembly explains how BOM, centroid, drawings, and test requirements work together.

During component and footprint review, confirm pitch, pin length, current rating, contact plating, mating cycles, and supplier part numbers. The surrounding circuitry should also be reviewed alongside the basic electronic components that establish default logic levels and protect the input.

Assembly and Test Risks

Jumpers introduce a configuration state that visual inspection or functional test must capture. Common failures include a cap shifted by one pin, the wrong default position, an omitted shunt, bent header pins, a cap supplied loose instead of installed, and documentation that disagrees with the schematic.

Automated optical inspection may verify header placement, but the final shunt position can require a dedicated inspection rule or manual check because the dark cap may obscure pin geometry. Functional testing provides stronger evidence when each state produces a measurable result. If only one shipped configuration is valid, the test fixture or firmware should identify the wrong state rather than allowing an incorrectly configured unit to pass.

A full-service PCB assembly workflow should treat the jumper position as controlled build data. The quotation package needs enough information to price manual insertion, inspection, functional testing, variant separation, and any loose accessories accurately.

How to Read or Change a Jumper Safely

1. Identify the exact board model and revision.
2. Find the jumper reference designator and pin numbering in the product manual or assembly drawing.
3. Record the original position before removing the cap.
4. Power down the product and follow the documented discharge or battery procedure.
5. Move the shunt only to a documented valid position. Do not guess from a similar board.
6. Check that the cap is fully seated and not offset by one pin.
7. Restore power, verify the expected behavior, and update service records when applicable.

Lenovo’s overview of computer jumpers provides additional general background. Product-specific manuals still take precedence because jumper functions and safe procedures are not universal.

When Should a New PCB Use a Jumper?

Use a removable jumper when a small number of hardware modes must remain available without firmware, the setting changes infrequently, and a trained assembler or technician can access it safely. Prefer a zero-ohm resistor when the option is selected during automated assembly and is not intended for field adjustment. Prefer a switch when repeated access is expected, and consider firmware configuration when the product needs a guided user experience, access control, or remote management.

The best choice is the one that makes the intended state electrically stable, physically obvious, manufacturable, testable, and difficult to misuse. If a jumper is retained, define its default position in the schematic, BOM, assembly drawing, inspection plan, and test specification.

Preparing a PCB assembly quotation? Send the Gerber files, BOM, pick-and-place data, assembly drawings, quantity, test requirements, and a configuration matrix showing each jumper position. OrinewPCB can then review the package through the PCB assembly service page and identify any documentation gaps before production.

The post What Are Computer Jumpers? Functions, Settings, and PCB Design first appeared on Assypcb.

A wiring diagram may be simple enough to show a battery, switch, and load, or complex enough to show power distribution, interlocks, connectors, sensors, and control circuits across several pages. In either case, the useful question is the same: what must connect to what, under which condition, and through which return path? Answering that question accurately helps prevent missing nets, reversed polarity, unsuitable connector pinouts, and late changes after layout begins.

What a Wiring Diagram Tells You

A wiring diagram describes functional electrical relationships. It identifies components, terminals, wires or nets, and the intended paths between them. A diagram is not necessarily a physical layout. The location of a symbol on a page rarely indicates where a component should sit on a PCB or in an enclosure.

Before tracing individual wires, identify four pieces of context:

• Power source and reference: Find the supply rails, voltage labels, protective devices, and ground or return symbols.
• Inputs and outputs: Identify where signals enter, where they are processed, and what they control.
• Control conditions: Look for switches, relays, logic states, enable lines, or interlocks that change the circuit behavior.
• Boundaries: Connectors, terminal blocks, cable labels, and page references often show where responsibility passes between boards, harnesses, and external equipment.

This system-level pass prevents a common error: treating every drawn line as an isolated wire instead of understanding how power, signals, and returns work together.

Recognize Symbols Before You Trace the Circuit

Most wiring diagrams use standardized symbols, but symbol style can vary by CAD library, region, or industry. Read the legend when one is supplied. Without a legend, confirm unfamiliar symbols against the documentation used for that project rather than relying on visual similarity.

Pay particular attention to polarized and direction-sensitive parts:

• Diodes, LEDs, electrolytic capacitors, and batteries have polarity.
• Transistors, MOSFETs, and optocouplers have terminals with distinct functions.
• Relays separate coil contacts from switched contacts, even when the symbols are placed far apart.
• Connectors need both a connector reference and an unambiguous pin number.

For a more focused reference on device notation, see this guide to transistor schematic symbols. That detail matters because a symbol that looks almost right can still represent the opposite transistor type, an incorrect pin order, or a different control behavior.

Labels are equally important. A net named +12V, CAN_H, ENABLE, or J3-4 can connect points that are not visually adjacent. Treat a repeated net label as an intentional electrical connection only when the drawing convention confirms it. A crossing pair of lines is not automatically a junction; many drawing systems use a dot to distinguish a joined node from a simple crossing.

Read the Diagram as a System

Start with the circuit’s energy path. Follow power from the source through protection, switching, conversion, and the load. Then trace the return path. A circuit may appear complete on the positive side while its ground, chassis, or signal return is missing or routed through an unintended path.

Next, trace the control path. For example, a low-side MOSFET driver may receive a logic signal, pull the load return toward ground, and require a flyback diode if the load is inductive. The diagram should make each of these relationships visible: supply, driver, load, protection, and return.

For multi-page documentation, record every off-page connector and cross-reference as you encounter it. Do not assume a similar label on another page is the same node. Confirm the page number, zone reference, connector designation, and pin number.

Trace a Circuit Methodically

Use one repeatable method for each functional block:

1. Pick a source, such as a battery terminal, regulated rail, sensor output, or communication connector.
2. Follow the path through each component and net label until it reaches a load, input, or boundary connector.
3. Identify the intended return route and any protective or switching component in that route.
4. Note values, ratings, pin numbers, and configuration options that change the path.
5. Repeat the process in the reverse direction from the load or output back to its source.

This two-way check is useful because it exposes assumptions. A wire that seems to supply a relay coil may actually reach a normally-open contact. A connector label may look correct while the pin numbering is mirrored between the mating views. When working from a harness drawing, verify whether the view is defined from the wire-entry side or the mating face.

Color codes can help during assembly and service, but they are not a substitute for net identity. Production documentation should still define connector pinouts, wire gauges where relevant, net names, and revision-controlled drawings.

Translate the Diagram Into a PCB

A wiring diagram can define the functional intent, but a PCB requires implementation decisions that the diagram alone may not answer. Before layout, resolve the following:

Create a complete netlist

Every intended electrical connection needs a named or otherwise controlled net. Avoid recreating connections manually in PCB software from a visual reference. A linked schematic and PCB flow provides a netlist that can flag unconnected pins, accidental shorts, and changes between revisions.

Check footprint and connector reality

A correct schematic symbol does not prove that the installed part will fit. Confirm package dimensions, pad geometry, connector orientation, keying, pin numbering, and mating clearance against the component datasheet and mechanical design. For wire-to-board connections, specify whether a drawing’s pin sequence is viewed from the board side, cable side, or mating face.

Separate electrical roles in the layout

The diagram may show one common ground symbol, but layout must account for current paths, noise coupling, and reference continuity. Keep high-current or switching loops compact. Place decoupling capacitors close to the relevant power pins. Route sensitive analog or high-speed signals with their return paths in mind instead of treating ground as an unlimited, interchangeable connection.

Make test and assembly needs visible

Include programming pads, test points, fiducials, polarity marks, and assembly notes where the product requires them. These are not decorative additions. They affect test coverage, setup time, rework risk, and the ability to verify that the manufactured board matches the intended circuit.

Before releasing Gerbers, it is useful to evaluate a PCB manufacturer before sending Gerbers so your drawing package and fabrication assumptions can be reviewed together. When the project proceeds to assembly, the relevant service path is PCB assembly service.

Common Diagram-to-PCB Errors

Several failures occur when a correct-looking drawing is handed off without an implementation review:

• Unconnected or mislabeled nets: A net label differs by one character, or a connector pin is omitted from the schematic.
• Reversed polarity or orientation: The symbol is correct, but the footprint pin mapping, diode stripe, IC pin-1 mark, or connector view is wrong.
• Missing protection: A supply path lacks a fuse, reverse-polarity strategy, transient protection, or flyback path required by the load and environment.
• Inadequate current path: Trace widths, copper weight, vias, connector ratings, or return paths do not suit the expected current.
• Assumed substitutions: A component alternate changes package, pinout, tolerance, voltage rating, or operating behavior without a schematic and footprint review.

The handoff package should make these issues discoverable before production. A useful baseline is the Gerber set, BOM with manufacturer part numbers and approved alternates, pick-and-place file, assembly drawing, revision notes, required quantity, and test requirements. The existing guide to a PCB assembly order package explains why those files need to agree with one another.

If your team has a wiring diagram or schematic but is uncertain about connector mapping, footprints, or assembly notes, send the design package for an engineering review. Include the current schematic or wiring diagram, Gerbers if available, BOM, connector details, required quantity, and any test or programming requirements.

A Practical Release Checklist

Before treating a wiring diagram as PCB-ready, confirm that:

• Every power source, load, control input, and return path has been traced.
• All connectors have confirmed pin numbers, views, keying, and mating information.
• Polarized components and direction-sensitive devices have verified symbol-to-footprint mappings.
• Protection, current capacity, voltage ratings, and thermal constraints suit the intended use.
• The schematic, PCB netlist, BOM, assembly drawing, and manufacturing files share the same revision.
• Test, programming, inspection, and special assembly requirements are explicit.

Conclusion

Good electrical diagram reading connects circuit intent to a manufacturable implementation. Read the system before the individual wire, validate symbols and connector views, trace both the power and return paths, and resolve every physical detail that a PCB needs but a conceptual drawing may omit.

When the design package is ready, submit the files for a PCB assembly review. Provide the latest Gerbers, BOM, pick-and-place data, assembly drawing, quantity, and test requirements so the review can focus on the decisions that affect assembly and verification.

References for Technical Verification

• International Electrotechnical Commission, IEC 60617 graphical symbols for diagrams: https://www.iec.ch/homepage
• IPC, standards and guidance for electronics manufacturing: https://www.ipc.org/

The post Reading Wiring Diagrams: From Circuit Intent to PCB-Ready Design first appeared on Assypcb.
