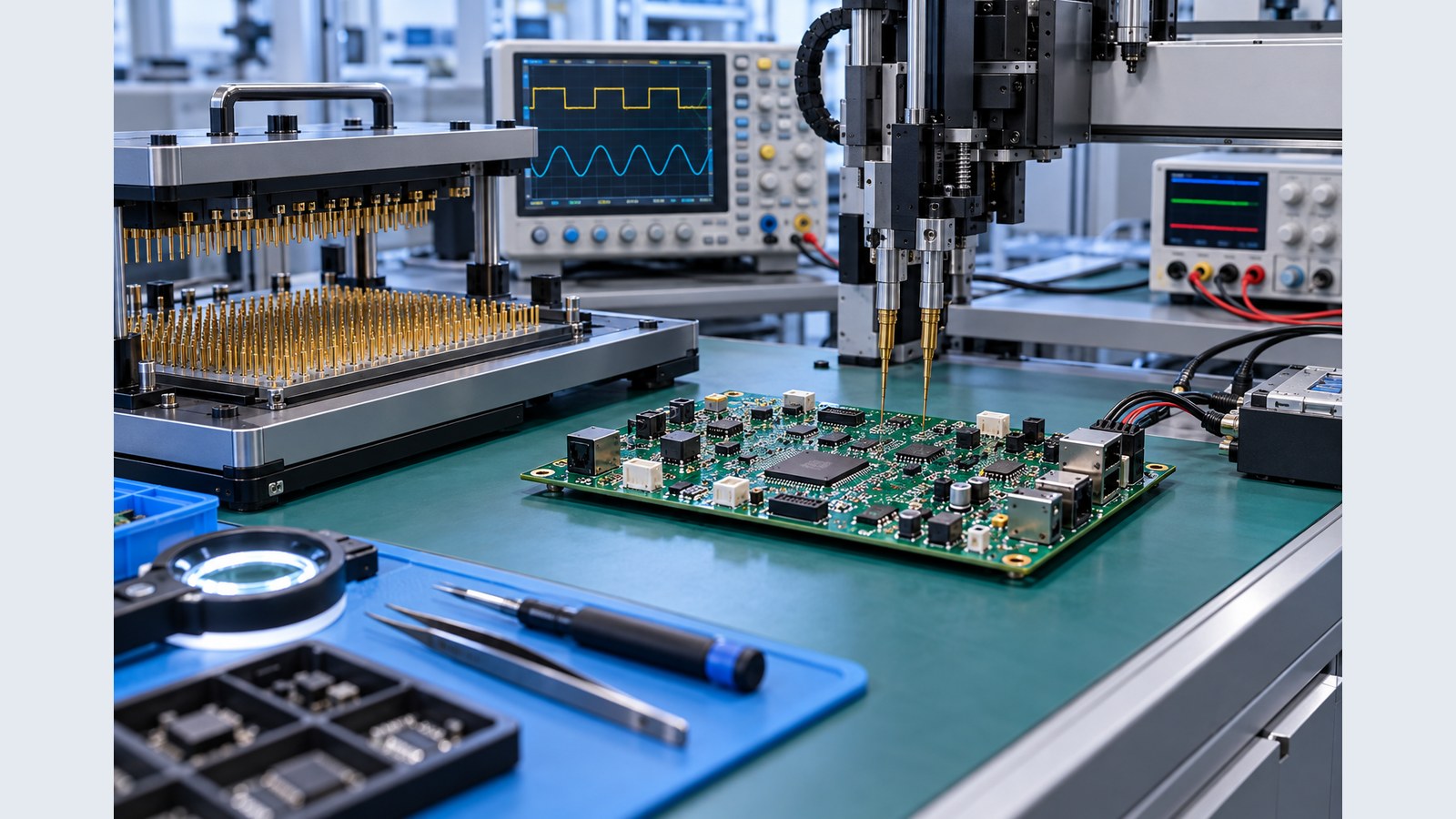

PCB Test Planning: Map Each Requirement to a Method and Acceptance Record

A useful PCB test plan does not begin with a list of available machines. It begins with product requirements and asks four questions for each one: what failure matters, where that failure can be introduced, which method can detect it, and what record proves acceptance. The answer may be a fabrication electrical test, incoming check, SPI, AOI, X-ray, ICT, boundary scan, programming verification, functional test, or system-level test. No single method provides complete coverage.

This requirement-led approach prevents two expensive mistakes. The first is paying for overlapping tests that find the same defects. The second is leaving a critical function untested because every supplier assumed another stage would cover it. Engineering and procurement teams can use the framework below to define coverage, limits, sampling, records, and retest rules before a production quotation is finalized.

Build a requirement-to-test matrix

Give every requirement a stable identifier and connect it to the likely defect mechanism. A power-input requirement, for example, may depend on correct copper geometry, the right protection devices, correct polarity, sound solder joints, firmware configuration, and behavior under load. Those risks arise at different stages and need different evidence.

A practical matrix should include the requirement ID, risk or failure mode, manufacturing stage, test or inspection method, unit under test, equipment or fixture, stimulus, measured response, numeric limit, test frequency, responsible owner, record field, and reaction plan. Add the design revision, BOM revision, firmware revision, and fixture or software revision so the result remains meaningful after the product changes.

Use the PCB assembly drawing checklist to capture workmanship, polarity, variant, process, and inspection instructions that must agree with the test matrix. A test plan cannot compensate for ambiguous release data.

Separate prevention, detection, and proof

Prevention controls reduce the chance of a defect. Detection controls find defects after they occur. Acceptance records show that the agreed control was applied and the result met the limit. These are related, but they are not interchangeable.

A stencil review may prevent insufficient solder. SPI can measure paste deposits. AOI can inspect visible placement and solder features after reflow. X-ray can examine hidden joints. ICT can detect many opens, shorts, and component-value errors. Functional test can exercise powered behavior. If the requirement is “the communication port shall operate at the specified interface conditions,” a good solder image does not prove the requirement; it only supports one part of the evidence chain.

Do not describe coverage only with percentages unless the numerator, denominator, exclusions, and method are defined. “90% test coverage” could refer to nets, components, pins, fault models, requirements, or code. A coverage claim should state exactly what was evaluated and which risks remain outside the method.

Assign bare-board tests to fabrication risks

Unpopulated-board electrical test verifies network continuity and isolation against design data. IPC-9252B explains that bare-board electrical testing confirms conductive interconnections but does not prove all physical characteristics, assembly suitability, or every customer requirement. The standard’s scope and purpose support treating electrical test as one control in a wider acceptance plan.

Specify the source netlist, test level, continuity and isolation parameters, high-voltage conditions where appropriate, allowed exceptions, and required report. Add fabrication evidence for features that electrical test cannot assess: stackup, material, finished copper, hole size, plating, annular ring, solder mask, surface finish, controlled impedance, cleanliness, and microsection results where contractually required.

For prototype quantities, flying-probe bare-board test may avoid dedicated fixture cost. At higher volume, a fixture can improve throughput. The choice should consider density, access, diagnostics, lead time, and risk rather than only the lowest test price.

Match assembly inspection to visible and hidden defects

SPI is most useful when solder-paste volume, area, height, or alignment are process risks. AOI can check presence, polarity, orientation, markings, placement, and visible solder features. X-ray is appropriate for hidden joints and internal solder distribution when the package and acceptance criteria justify it. These methods overlap only partly.

IPC-A-610J describes visual acceptability requirements and states that it does not by itself provide cross-section or X-ray criteria; its published scope also distinguishes acceptability from the process requirements in J-STD-001. Contract documents should state the applicable revision, class, customer drawings, and any exceptions. Do not reduce the requirement to the phrase “IPC compliant.”

The AOI, X-ray, and ICT quality-plan guide shows how these methods can be assigned to different defect classes instead of being stacked as generic assurance steps.

Choose electrical tests by access and fault coverage

ICT is efficient when the layout provides stable probe access and the expected production volume justifies fixture and program effort. It can measure many passive values, check opens and shorts, identify some wrong or reversed devices, and support programming. Flying-probe assembly test can reduce fixture needs for prototypes and changing designs, but cycle time and accessible-node coverage may limit its use.

Boundary scan can improve digital interconnect coverage when supported devices, chain design, access, and test descriptions are available. Programming verification can confirm that the intended image and configuration were written. None of these methods proves analog performance, loaded power behavior, sensors, actuators, communications timing, or full product function unless the method explicitly stimulates and measures those requirements.

If the design package and initial coverage matrix are ready, send the Gerbers, BOM, placement data, schematics, firmware, quantity, critical requirements, and expected records through the controlled PCBA test-scope review. The review should identify inaccessible nodes, fixture needs, overlapping tests, unverified requirements, and the assumptions behind the quotation.

Design functional test around observable behavior

A functional test should progress from low-risk checks to energized operation. Begin with unpowered resistance or short checks. Apply current-limited power and verify input current and regulated rails. Confirm reset, clocks, memory, programming state, and communications before enabling higher-energy outputs or attaching real loads.

For every function, define the stimulus, operating state, load, measurement point, timing, units, lower and upper limits, stabilization time, and failure response. Use representative loads or validated simulators when actual motors, valves, heaters, batteries, or sensors would make production testing unsafe or unstable. State which integrated system tests are required after the PCBA test and which are sampled rather than run on every unit.

The fabrication-to-final-test example demonstrates how bare-board, assembly, programming, and powered checks can form one traceable control plan instead of isolated pass/fail events.

Set limits from requirements, not one golden board

A golden board is useful for fixture checkout, but one sample does not establish production limits. Base limits on design requirements, component tolerances, characterized variation, measurement uncertainty, environmental conditions, and system margins. Record actual measured values when they support diagnosis; a single pass bit may be insufficient.

Guard bands may be appropriate when measurement uncertainty or drift could allow a failing product to appear acceptable. The rule, calculation, and disposition must be documented. If the measurement does not affect acceptance, do not collect it merely because the instrument can display it.

NIST explains that metrological traceability is a property of a measurement result supported by a documented chain of calibrations, not a label automatically transferred from an instrument. Its traceability guidance is a useful reference when defining calibration records, measurement systems, uncertainties, and evidence for critical limits.

Define sampling, rework, retest, and failure records

Decide which controls apply to every board, which apply by lot, and which are first-article or periodic checks. Sampling should be tied to risk, contractual requirements, process stability, and the consequence of an escaped defect. Safety, regulatory, or high-energy functions may require different treatment from cosmetic characteristics.

A failure record should preserve the first observed result, requirement ID, step, measured value, limit, serial number, board and BOM revision, firmware, fixture, software, equipment, operator or station, and timestamp. Separate product defects from fixture contact, cable, software, calibration, or reference-load failures. Define permitted rework and whether the full sequence or a targeted subset must be repeated afterward.

For solderability-related evidence at the board or component interface, the PCB solderability testing guide explains why method, conditioning, storage, acceptance criteria, and supplier records must be interpreted together.

Release checklist for a quotable test plan

• Every critical requirement maps to at least one prevention or detection control.
• The earliest reliable detection stage owns each defect class.
• Limits include units, conditions, timing, loads, and measurement points.
• Coverage metrics define their numerator, denominator, and exclusions.
• Design access supports the intended ICT, flying-probe, boundary-scan, or functional fixture.
• Firmware, programming, fixtures, test software, and reference loads are revision controlled.
• Sampling, calibration, rework, retest, and reaction rules are explicit.
• Records connect results to serial number, product revision, equipment, and test revision.

The PCB assembly service overview explains why fabrication, sourcing, SMT/THT assembly, inspection, programming, and testing should use the same released data. Coordinating those stages reduces gaps at supplier handoffs.

When the matrix and release package are complete, submit them through the complete PCB assembly quality-plan intake. Include the build quantity, product class, Gerbers, BOM, placement data, drawings, firmware, required fixtures, test limits, sampling rules, and acceptance-record format so engineering and sourcing can return a scope tied to actual coverage.

Conclusion
