Quick-Turn PCB Assembly Services
Quick-turn PCB assembly compresses engineering, sourcing and production handoffs for a time-critical build. OrinewPCB coordinates PCB fabrication, 100% new and original supplier-sourced components, SMT and through-hole assembly, programming and agreed test coverage. The service is designed for prototypes, small batches and high-mix orders whose files are ready for release.
Speed starts with build readiness. We review the data package, component stock, PCB construction, quantity, test access and required approvals before confirming the earliest practical delivery plan. This protects the schedule without replacing quality controls with an unsupported “fastest” promise.
Remove uncertainty first
What makes an order ready for quick-turn assembly?
The calendar is usually lost in missing decisions rather than placement time. A complete release package lets engineering, purchasing and production work from the same revision.
| Readiness item | What OrinewPCB checks | Why it affects delivery |
|---|---|---|
| Released fabrication data | Gerber or ODB++, drill files, stack-up, finish, controlled impedance and board drawing | Unresolved PCB construction can stop material ordering and CAM release |
| Matching assembly data | BOM, centroid file, polarity, DNP markings, assembly drawing and revision | Mismatched files create engineering questions and first-article risk |
| Component decision | Exact MPNs, approved alternates, consigned items and stock status | One unavailable part can control the entire completion date |
| Programming package | Firmware, device list, connector, voltage and acceptance evidence | Programming cannot be improvised after assembly |
| Test coverage | Visual, AOI, X-ray, electrical or functional requirements and fixtures | Test setup and debug time must be scheduled before production |
| Fast approvals | Named technical contact and a response path for substitutions or DFM questions | Waiting for a decision cancels the value of parallel processing |
If the design is still changing, begin with prototype PCB assembly and release a controlled revision before requesting an expedited lot. For ready data, share the BOM, board files, quantity and required date for a feasibility review.
Parallel work with controlled gates
How OrinewPCB compresses the workflow without hiding risk
Engineering, CAM, sourcing and test preparation can overlap after the same released dataset is confirmed. Purchasing checks manufacturer and distributor channels while the PCB construction and assembly data are reviewed. Production preparation begins only when the materials and decisions required for that stage are clear.
- Intake and revision lock: identify the governing files, quantity, variants and required date.
- DFM and DFA review: check manufacturability, polarity, footprint and assembly risks.
- Supply confirmation: verify exact manufacturer part numbers, stock and lead time.
- PCB and stencil preparation: release fabrication and process tooling from approved data.
- First-article control: verify setup and critical attributes before the batch continues.
- Inspection, test and release: complete agreed evidence, resolve findings and review the shipment.

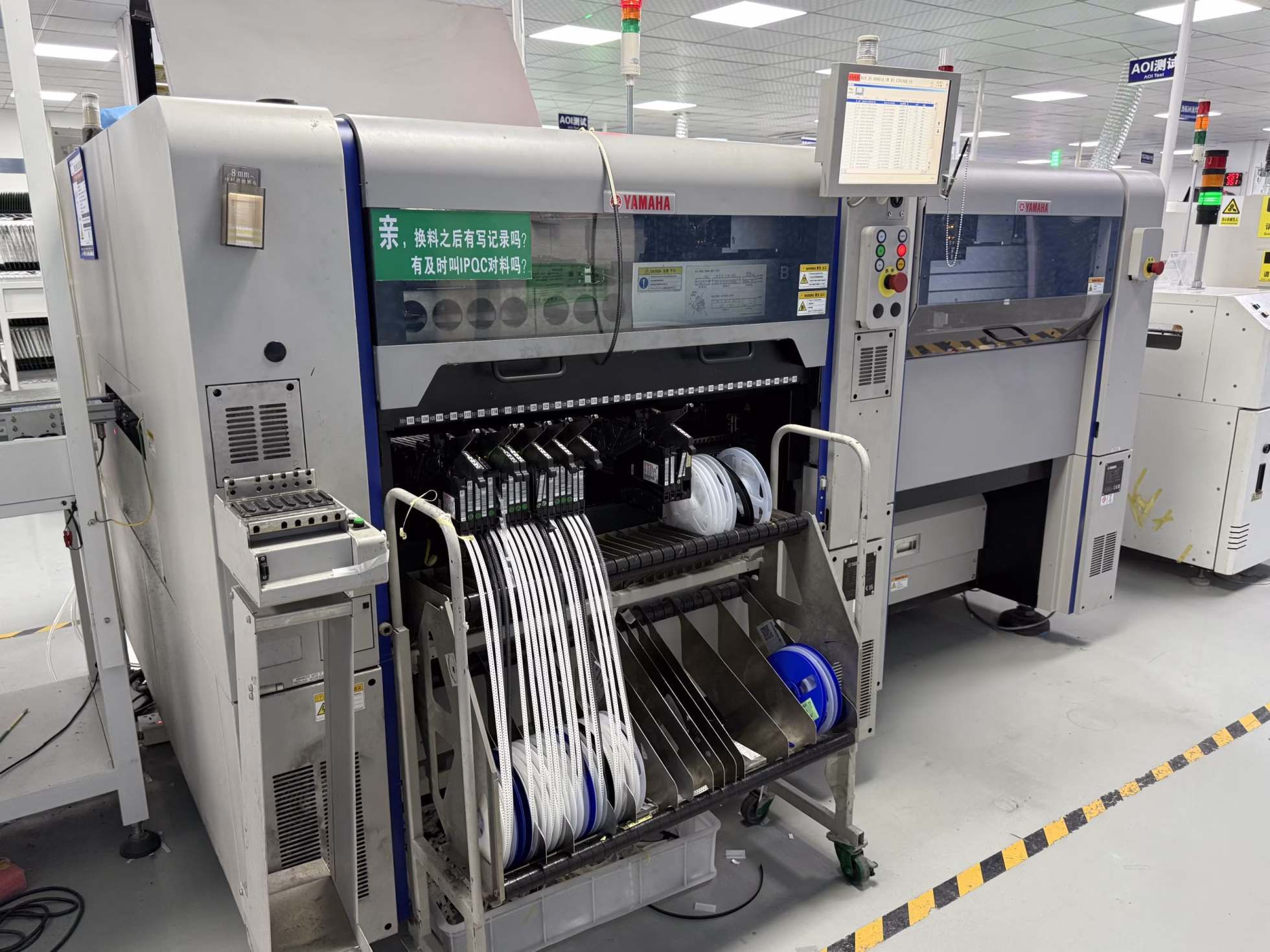

The separate automated PCB assembly overview explains where programmed equipment supports repeatability. Automation helps throughput; it does not remove the need for revision control or an agreed quality plan.
Fast does not mean uncontrolled
A nine-step quality workflow remains part of the plan
OrinewPCB uses nine control steps: build-data and revision review; source and material identity verification; incoming PCB and component inspection; process setup and solder-paste verification; first-article verification; AOI or visual inspection; X-ray where specified or appropriate; electrical or functional testing as agreed; and final quality and release review.
Coverage is stated, not implied

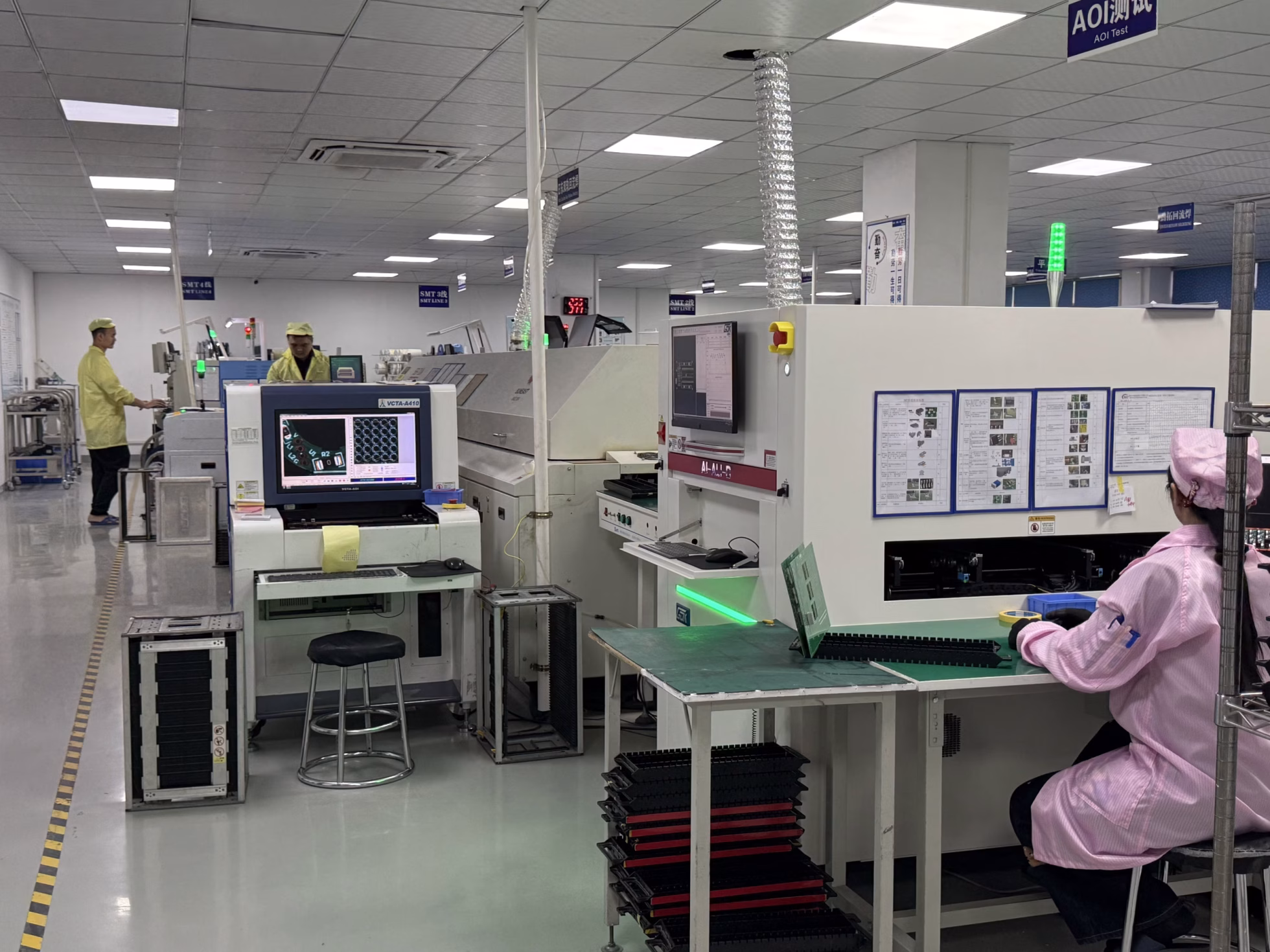

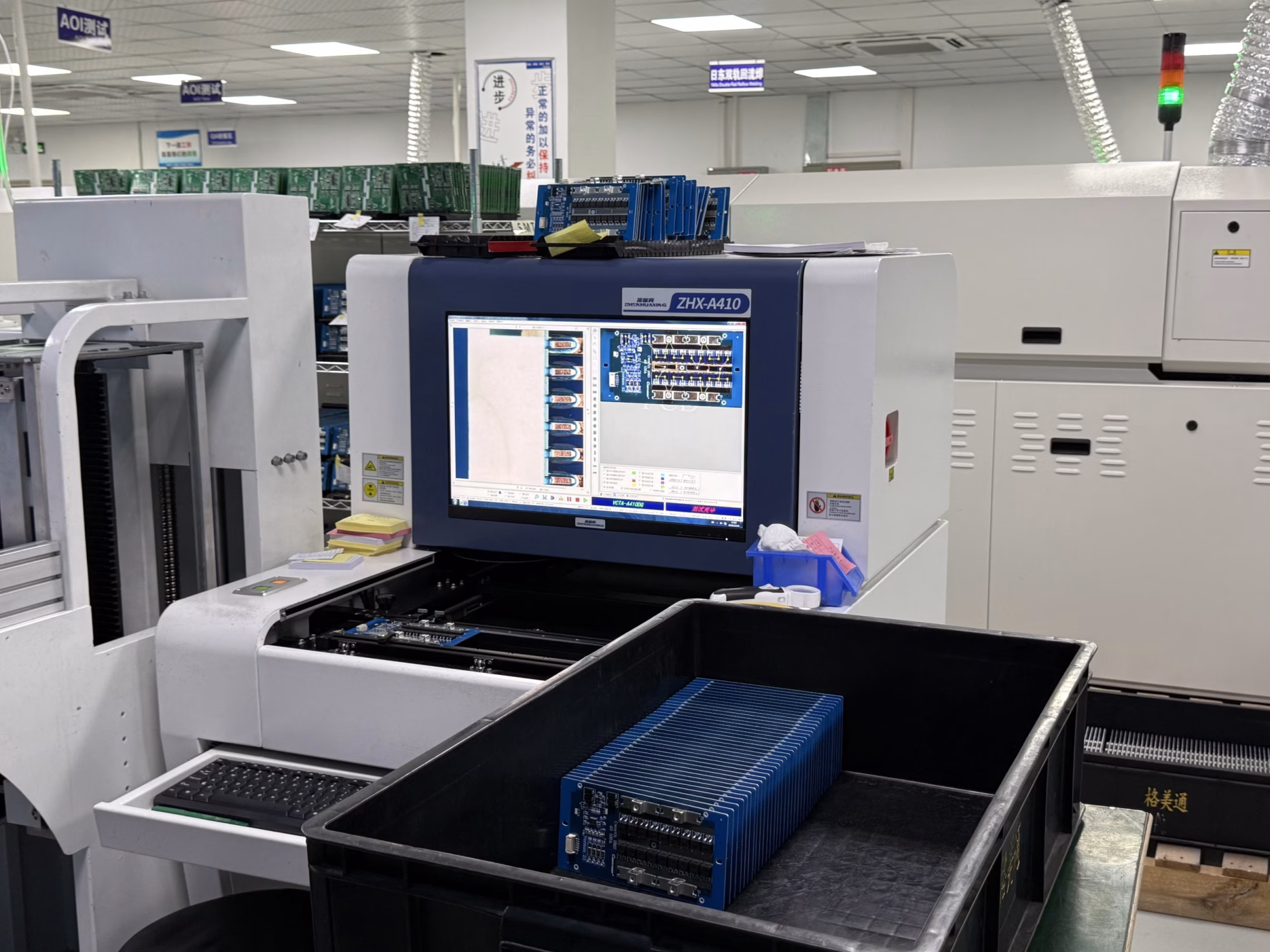

Actual coverage depends on package visibility, board access, quantity, fixtures, firmware and customer requirements. AOI checks visible programmed attributes within its capability. X-ray is useful for selected hidden joints. Electrical and functional tests require defined connections, limits and acceptance criteria.
Nonconformities still require a decision
A finding is documented and dispositioned rather than passed to protect a date. When timing is critical, an available customer engineering contact is essential for rapid approval of a controlled rework, deviation or alternate. The AOI inspection guide gives more context on optical evidence and its limits.
Schedule based on facts
The factors that determine the confirmed delivery plan
| Driver | Faster path | What may add time |
|---|---|---|
| PCB fabrication | Released standard construction with available material | Special laminate, heavy copper, sequential lamination, controlled impedance review or special finish |
| Components | Exact parts in verified channels or pre-approved alternates | Allocation, obsolete MPNs, incomplete descriptions or approval after sourcing begins |
| Assembly mix | Clear variant matrix and stable common setup | Many unique variants, rework instructions or ambiguous DNP rules |
| Inspection and test | Released coverage, fixtures, firmware and limits | Fixture design, software debug or evidence requirements defined late |
| Communication | One technical owner able to approve decisions promptly | Unclear authority or long substitution and DFM approval loops |
For high-mix work, grouping common materials and setup conditions can reduce repeated changeovers while keeping each variant’s traceability separate. If OrinewPCB manages fabrication and supply together, the one-stop PCB assembly service provides a single responsibility path for these dependencies.
Ask for a date that can be defended
What to include in a quick-turn PCB assembly request
Build definition
Provide fabrication data, BOM with exact MPNs, placement file, assembly drawing, revision and quantity per variant. Mark DNP items and separately identify customer-supplied material.
Timing and priorities
State the required delivery location and target date, plus which factor is fixed: date, exact component, test scope or cost. This makes tradeoffs explicit.
Acceptance evidence
Provide programming files, test instructions, fixtures, pass limits and any required inspection records. Explain the product’s critical functions and components.
For a recurring program, turnkey PCB assembly can retain a controlled sourcing and production baseline after the urgent first lot. For the immediate build, send the complete release package so we can confirm feasibility, included quality evidence and the earliest practical schedule.
Use expedited service deliberately
When quick-turn assembly is—and is not—the right option
Good fit: released urgent builds
Quick-turn is effective when the data is stable, exact components are available, the technical contact can respond quickly and the test method already exists. Prototype verification, replacement boards and schedule recovery are common examples.
Needs review: high-mix batches
Several variants can share a fast plan when each file set is clearly identified and common materials are controlled. Unique stencil, setup, firmware and first-article requirements still need their own scheduled gates.
Poor fit: unresolved engineering
An unfinished BOM, changing PCB revision, undefined test criteria or unavailable critical part cannot be solved by shortening machine time. Resolve the decision or explicitly schedule engineering work before relying on a delivery date.
Expediting should be applied to the constraint that actually controls the order. Paying for faster PCB fabrication does not help if a programmed device is unavailable; rushing material does not help if test fixtures are still being designed. The review identifies this controlling path and separates required actions from optional accelerators.
Keep control after the urgent lot
Turn the expedited build into a repeatable baseline
At release, record the actual PCB revision, installed component MPNs, approved deviations, programming version, inspection findings, rework and final test limits. Reconcile these records with the next BOM and drawing rather than copying the urgent order unchanged. For recurring small batches, this closeout step often saves more future time than another round of expediting.
Forecast information also matters. It can support component allocation, common-material planning and a more stable production window without committing to unsupported inventory. State likely quantities and timing separately from the firm purchase quantity so purchasing can distinguish planning demand from an authorized order. Preserve the final records as the starting point for the next reviewed release.
Frequently asked questions
Quick-turn PCB assembly FAQ
How quickly can a quick-turn PCB assembly order ship?
The earliest practical date depends on released files, PCB construction, component availability, quantity, programming and test requirements. OrinewPCB confirms a date after engineering and supply review instead of applying one universal turnaround promise.
Does expedited assembly reduce inspection or testing?
No quality gate is removed merely to create a shorter schedule. The applicable inspection and test coverage is agreed before release; optional methods such as X-ray or functional testing depend on the design, access and available fixtures.
Can OrinewPCB source components for a quick-turn build?
Yes. For supplier-sourced material, OrinewPCB uses 100% new, original components and reviews stock, lead time and approved alternates. Customer-supplied parts can also be accepted under a separately defined consignment scope.
What files prevent the most schedule delays?
A matching Gerber or ODB++ package, BOM, placement file, assembly drawing, revision identifier, approved alternates, programming files and test instructions remove many avoidable clarification loops.
Is quick-turn suitable for several board variants?
It can be, especially when the variants share a controlled parts library and their BOM, placement and revision data are clearly separated. Changeover and first-article time must still be included in the plan.
Can a quick-turn order include PCB fabrication?
Yes. OrinewPCB can coordinate PCB fabrication, sourcing, SMT and through-hole assembly, programming and agreed tests. Fabrication complexity and laminate availability are included in the date review.
