Standard PCB

By assypcbPublished On: August 13th, 2024Categories: PCB

Table of Conent

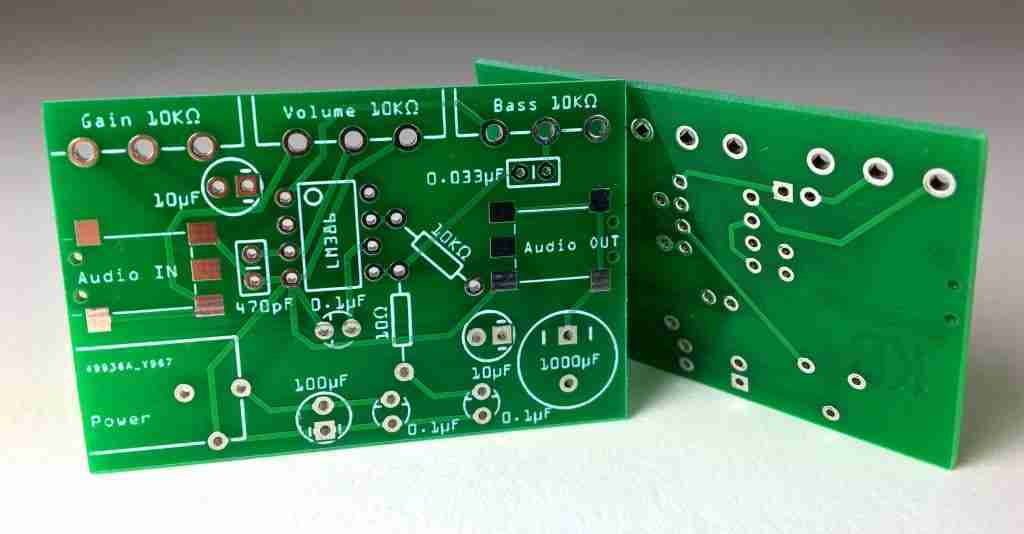

Standard PCB service refers to full feature printed circuit board manufacturing service. With 10+ years’ experience in PCB fabrication, we have handled hundreds of thousands of PCB projects, and covered almost all kinds of substrate materials including FR4, Aluminum, Rogers, etc. This page only touches standard FR4 based PCB. For PCBs with special technical substrate, please refer to corresponding webpages for information.

Get an Instant Quote for Standard FR4 PCB Fabrication

Unlike Prototype PCB service, our Standard PCB service has tighter production tolerances.

It is recommended to use Standard PCB service when your design is ready to transform from prototype phase to production phase. We can manufacture up to 10 million pieces high quality PCBs in as short as 2 days. To endow your project with expected function and more possibilities, we offer advanced features for Standard PCB services. Comprehensive capabilities can be found in the following table:

Feature	Capability
Quality Grade	Standard IPC 2
Number of Layers	1 – 32layers
Order Quantity	1pc – 10,000,000 pcs
Build Time	2days – 5weeks
Material	FR-4 Standard Tg 150°C, FR4-High Tg 170°C, FR4-High-Tg 180°C, FR4-Halogen-free, FR4-Halogen-free & High-Tg
Board Size	Min 66mm \| Max 600700mm
Board size tolerance	±0.1mm – ±0.3mm
Board Thickness	0.4mm – 3.2mm
Board Thickness Tolerance	±0.1mm – ±10%
Copper Weight	0.5oz – 6.0oz
Inner Layer Copper Weight	0.5oz – 2.0oz
Copper Thickness Tolerance	+0μm +20μm
Min Tracing/Spacing	3mil/3mil
Solder Mask Sides	As per the file
Solder Mask Color	Green, White, Blue, Black, Red, Yellow
Silkscreen Sides	As per the file
Silkscreen Color	White, Blue, Black, Red, Yellow
Surface Finish	HASL – Hot Air Solder Leveling Lead Free HASL – RoHS ENIG – Electroless Nickle/Immersion Gold – RoHS ENEPIG – Electroless Nickel Electroless Palladium Immersion Gold – RoHS Immersion Silver – RoHS Immersion Tin – RoHS OSP -Organic Solderability Preservatives – RoHS
Min Annular Ring	3mil
Min Drilling Hole Diameter	6mil, 4mil-laser drill
Min Width of Cutout (NPTH)	0.8mm
NPTH Hole Size Tolerance	±.002″ (±0.05mm)
Min Width of Slot Hole (PTH)	0.6mm
PTH Hole Size Tolerance	±.003″ (±0.08mm) – ±4mil
Surface/Hole Plating Thickness	20μm – 30μm
SM Tolerance (LPI)	.003″ (0.075mm)
Aspect Ratio	1.10 (hole size: board thickness)
Test	10V – 250V, flying probe or testing fixture
Impedance tolerance	±5% – ±10%
SMD Pitch	0.2mm(8mil)
BGA Pitch	0.2mm(8mil)
Chamfer of Gold Fingers	20, 30, 45, 60
Other Techniques	Gold fingers Blind and Buried Holes peelable solder mask Edge plating Carbon Mask Kapton tape Countersink/counterbore hole Half-cut/Castellated hole Press fit hole Via tented/covered with resin Via plugged/filled with resin Via in pad Electrical Test

Advantages of a Standard Printed Circuit Board

Assypcb is a full-service turnkey PCB solution that can handle everything from prototype to fabrication to assembly. We have been fabricating PCBs for over ten years and are fully compliant with ISO9001:2008 quality standards. All of our standard printed circuit boards are IPC2 compliant, and we do strict internal quality assurance testing to ensure the board that arrives at your facility is one you know you can rely on.

We offer PCB solutions that fit your budget. You can order just a few prototype boards to test your design, and then place a bulk order for your standard PCBs to save even more money. We’ll give you a free instant quote so you’ll know just want to expect and so that you can plan accordingly. We also offer complete technical support from PCB experts. Call us up, chat online or email us with any questions, whichever is the most convenient for you. We’ll handle your concerns or questions as quickly as possible. We have obtained over 99 percent customer satisfaction rate, and as soon as you start ordering printed circuit boards from assypcb, you’ll find out why.

How to Get Quotation of Standard PCBs?

Free PCB quotation is just a click away. Click below button to enter our PCB quote system.

Get an Instant Quote for PCB Fabrication

Have more questions on our Standard PCB fabrication capabilities or your required technique is not included in the above table, please feel free to contact us. We’ll respond very quickly.
